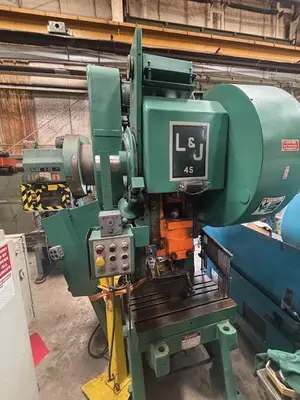

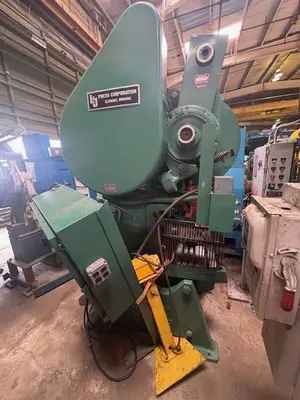

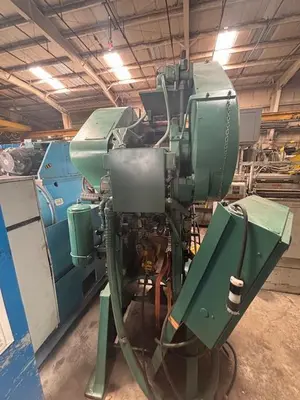

USED L & J NO 5

Stroke: 3"
Shut Height(Stroke Down, Adjust Up): 15 1/2"
Ram Adjustment: 3"
Speed (Cont.): 45 SPM (est. Back Geared Machine)
Ram Dimensions: 9 1/2" F-B x 11 1/2" L-R

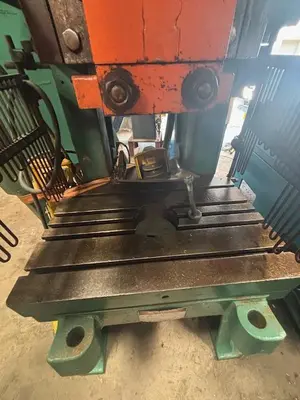

Bed & Bolster Size: 18" F-B x 28" L-R
Bolster Thickness: 3" w/ Five L-R Tee-Slots
Throat: 9 1/2"
Distance Between C-Frame: 14"
Air Clutch & Brake
Brake Monitor

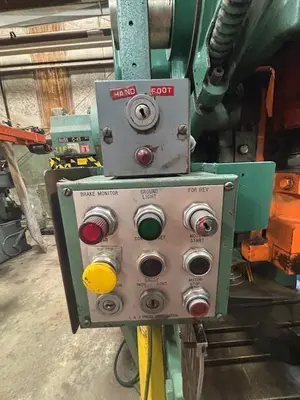

Inch/Single/Continuous
Top Stop
Keyed Switch for Bar/Run
Keyed Hand/Foot Selector Switch
Keyed Forward/Reverse Switch
EQUIPPED WITH:
Automatic Lube System
Dual Ross Valve
Clutch Air Surge Tank
Dual Palm Button Pedestal w/E-Stop P.B.
Foot Pedal
Physical Side Barrier Gaurds
Parts Counter
Shipping Dimensions: 60" x 81" x 102" H
WEIGHT: 4,500 Lbs.
