USED 2022 HNK HL 35X 6-50T

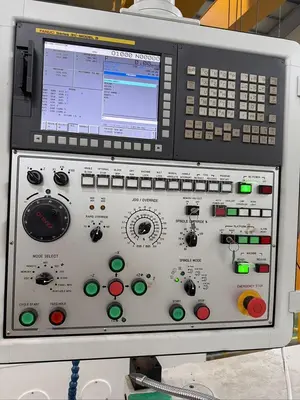

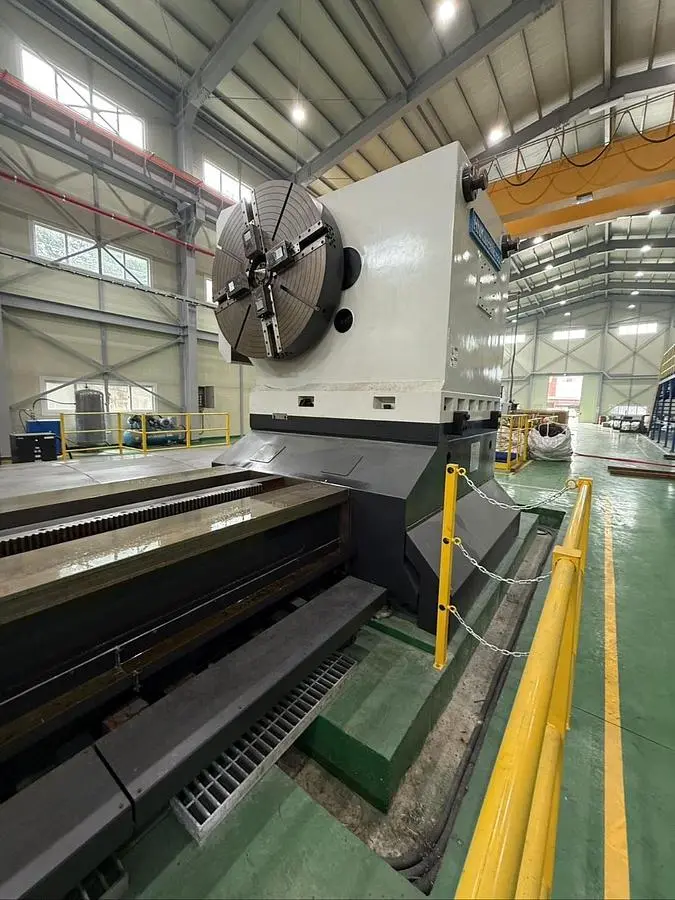

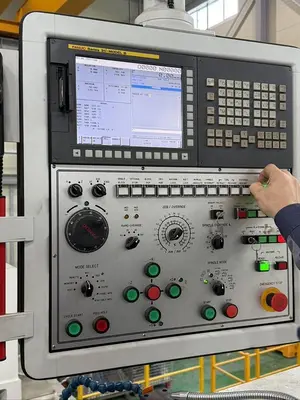

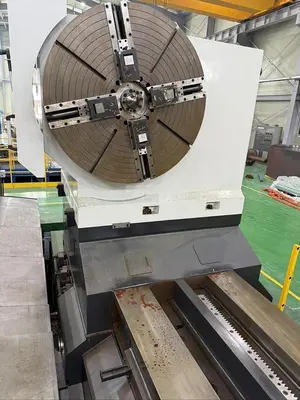

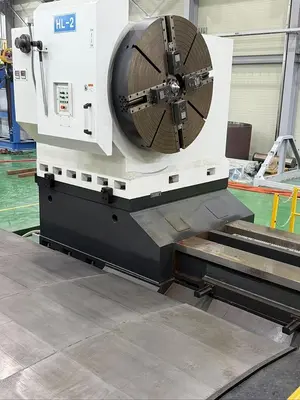

Fanuc 31i CNC Control - 10.4" Color LCDFaceplate Speeds: Step I: 2 - 15.6 - 59.5 rpm Step II: 1 - 59.5 - 235 rpmFlanged Center with Taper 1/10, angle 75◦ ea 2Lubrication & Hydraulic unit for headstockOil cooler for Headstock lub’ & hyd’ unitHeadstock spindle bearing temperature monitoringHydrostatic Lubrication unit for X, Z-axis slidewayOil cooler for hydrostatic lubrication unitLubrication unit for tailstockHydraulic power unit for tailstockTailstock load meter and displayOperation panel (pendant type) Work light & patrol lamp(3 colors –red/yellow/green)Telescopic steel cover (X, Z-axis)Chip conveyor (hinge type)Faceplate safety cover with interlockHEADSTOCKDrive output kW AC100Main spindle bearing diameter mm 400Faceplate speeds1`st Step rpm 02. ~ 15.6 ~ 59.52`nd Step rpm 1 ~ 59.5 ~ 235Max Torque of faceplate Nm 61,000Angle of flanged Center with Taper 1/10 deg. 75Lubrication system * Forced circulation with oil coolerFACEPLATEOutside diameter mm Ø1,500Chucking diameter range(Normal) mm Ø490 ~ Ø1,350Chucking diameter range(Reverse) mm Ø350 ~ Ø1,100Number of chuck jaws ea 4TAILSTOCK with live spindleQuill diameter mm Ø450Travel of tailstock Quill mm 200Rapid traverse speed of Quill (high / low) mm/min 160 / 80Rapid traverse speed of Tailstock on bed (high / low) mm/min 1,800 / 900Longitudinal expansion compensation mm 3 (Disk spring)Clamping / Unclamping on the bed Mechanical / hydraulicClamping / Unclamping of Quill Mechanical / hydraulicTailstock traverse motor - AC3.7kW*4P/8PQuill traverse motor - AC5.5kW*4P/8PAngle of flanged Center with taper 1/10 deg. 75CARRIAGE AND CROSS SLIDENumber of carriage 1Number of tool carriers(lamella) 2X-axis driving system - BallscrewZ-axis driving system Rack & double pinionTravel transverse (X-axis) mm 1,600Travel Longitudinal (Z-axis) mm 6,500Travel of tool carrier (Tool slide overhang) mm 500X, Z-axis slideway lubrication system * Hydrostatic Rapid feedrate: X-AXIS mm/min 5,000 Z-AXIS mm/min 7,500Cutting feedrate: X-AXIS mm/min 3,000 Z-AXIS mm/min 3,000Tool carriers(lamella) width (Headstock / Tailstock) mm 100 / 100Tool carriers(lamella) adjustment * By manualTool carriers(lamella) Clamping / unclamping * By manualTooling system (block tool type) * HNK standardTool size mm 40 * 40STEADY REST (OPTION)Type mm C-type, 3-Quill, PadSupporting range mm Ф150 ~ Ф600Max. supporting load kgf 10,000Number of steady rest * 1Longitudinal adjustment on the bed * By manualClamping method on the bed * By manualCOOLANT SYSTEM (External Coolant)Coolant consumption L/min 100Output pressure bar 1 ~2Tank Volume L 1,000
