Haas UMC-750 – 2022
Overview

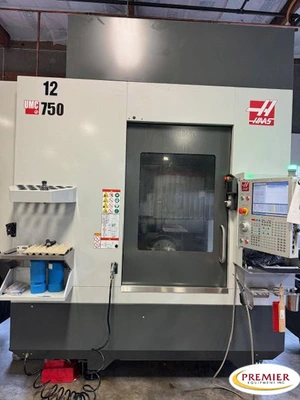

Haas UMC750 5-Axis CNC Mill
CNC Vertical Machining Center
General
Axis Travels
X-Axis Travel: 30” / 762 mm
Y-Axis Travel: 20” / 508 mm
Z-Axis Travel: 20” / 508 mm
Number of Controlled Axes: 5
Rotary Configuration: Integrated dual-axis trunnion table
Spindle
Maximum Spindle Speed: 15,000 RPM
Spindle Taper: 40 Taper
Spindle Motor: 30 HP / 22.4 kW
Spindle Drive: Inline Direct Drive
Spindle Control: Vector Drive
Toolholder Requirement: G2.5-balanced toolholders required above 10,000 RPM
Automatic Tool Changer
Type: High-Speed Side-Mount Tool Changer
Tool Capacity: 50+1
Tool Taper: 40 Taper
Haas Next Generation Control
Machining Capability: 3+2 positioning and simultaneous 5-axis machining
Coolant System
Through-Spindle Coolant: 300 PSI / 21 bar
Coolant Delivery: High-pressure coolant delivered directly through the cutting tool
Power Requirement for TSC: Three-phase power
Chip Management
Belt-Type Chip Conveyor
High-volume automatic chip removal
Discharge Height: Standard 55-gallon barrel height
Programming and Performance Options
High-Speed Machining Software
5-Axis CNC machining capability
High-speed contouring and complex-part machining
