Berg Ice Maker

Used Berg ice maker (a.k.a shell ice machine) will make ice by trickling water down the outside of chilled stainless steel tubes.

When this ice reaches the desired thickness, refrigerant flow valves actuate so that hot refrigerant flows thru the tubes, slightly melting the ice, causing it to release from the tube and fall into a collection trough where it is conveyed to carts to be transported.  The shell ice can also be crushed.   This unit requires a supply of refrigerant, this is only the ice head.

Designed for making shell ice.

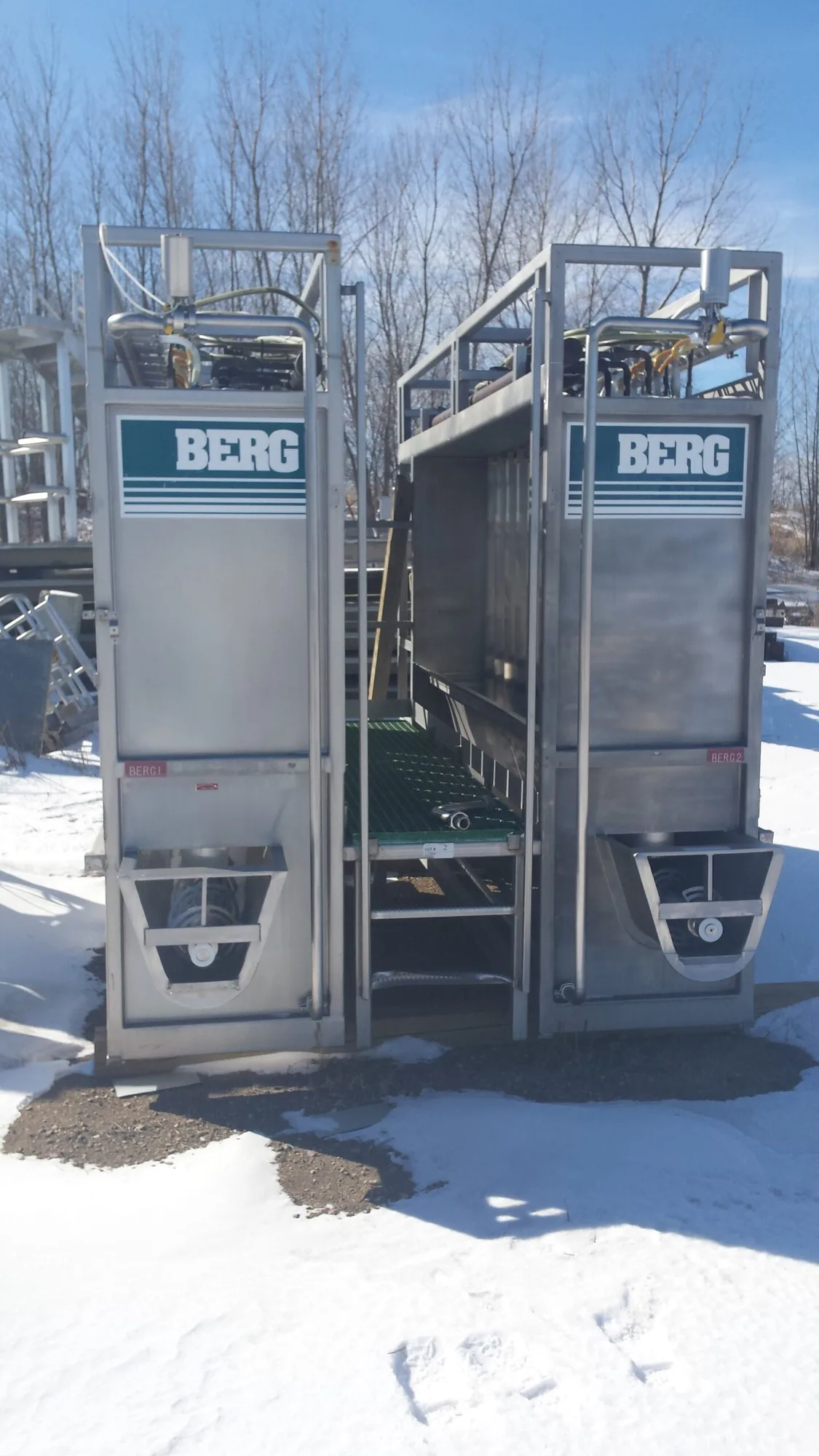

A dual unit with 2 separate sets of freezing tubes with full catwalk system on both sides.

Will produce 20 tons of shell ice in 24 hours

2 HP, 3-phase electric motor with stainless steel food grade 9″ augers on each side under the freezing tubes

2 portable stainless steel dump carts on wheels, each 28″ x 50″ x 36″ tall

Serial Numbers: A282A-IXI-1198 and A091A-IXI-1297

24 tubes @ 6″ diameter by 60″ long

Assembly is 86″ wide by 101″tall by 12′ long

Inventory #1802
