USED 2004 FADAL VMC4020 HT

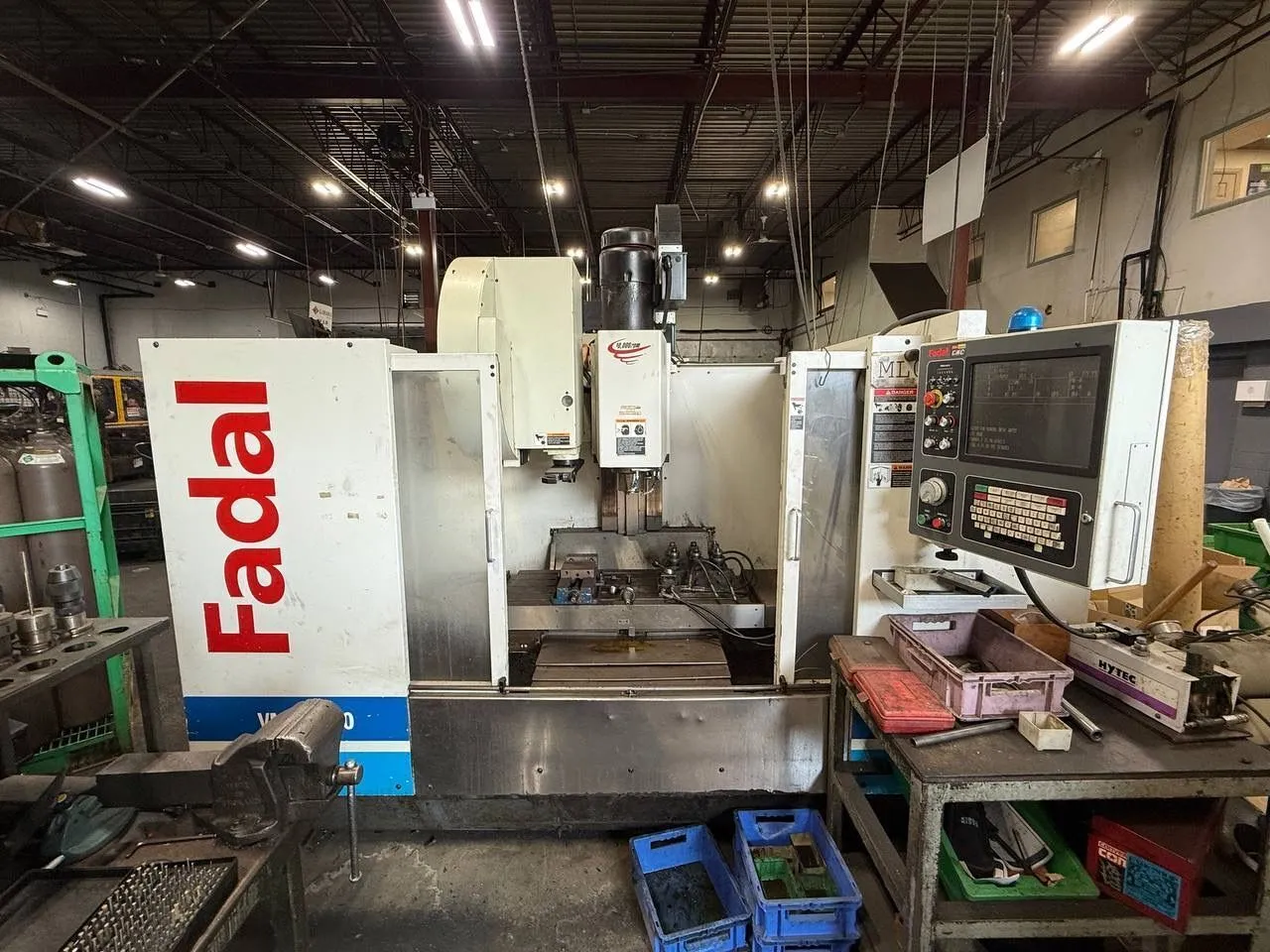

2004 FADAL VMC4020 HT Vertical Machining Center

Manufacturer: Fadal
Model: VMC4020 HT
Machine Type: Vertical Machining Center
Mfg Date: 2004

Power: 220 V, 50/60 Hz, 3 Ph

Specs:
X-Axis Travel: 40 in
Y-Axis Travel: 20 in
Z-Axis Travel: 20 in
Table Size: 20 in × 48 in
Table Capacity: 3,641 lb
T-Slots: 5 × 0.687 in
T-Slot Spacing: 3.75 in
Floor to Table: 32 in
Spindle Speed: 10–10,000 RPM
Spindle Nose to Table: 4 in – 24 in
Spindle Center to Column: 20 in
Cutting Feed Rate: 0.01–400 IPM
Rapid Traverse (X/Y): 900 IPM
Rapid Traverse (Z): 700 IPM

*Tool changer requires repair and is currently not operational*

Weight: 11,000 lb
Dimensions: 140 in L × 120 in W × 125 in H
