USED 2021 MITUTOYO CRYSTA-APEX V 9166
Overview

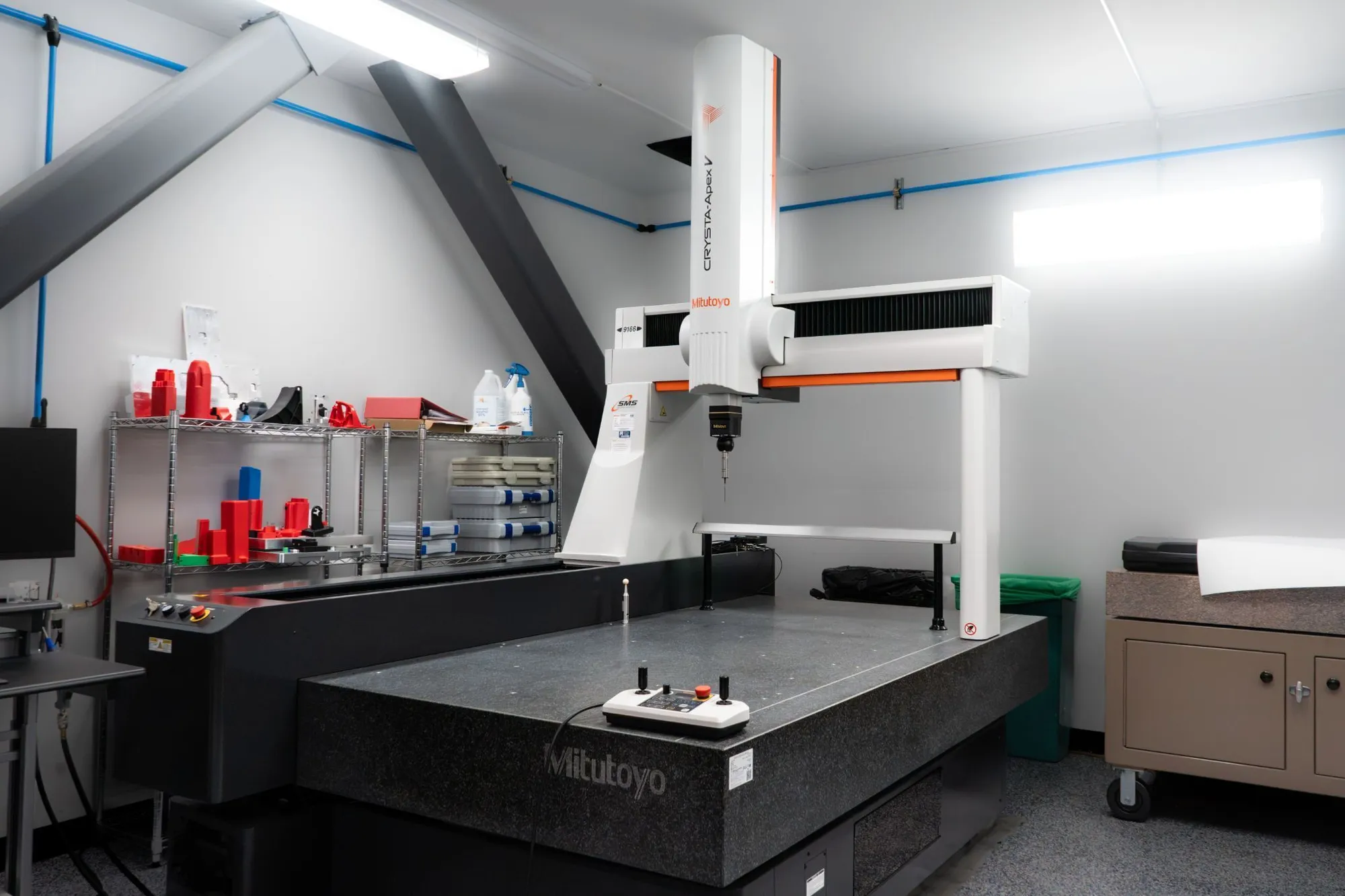

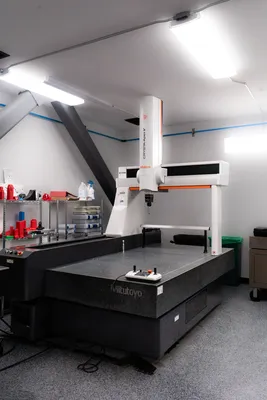

MITUTOYO CRYSTA-APEX V 9166, 2021 model, used Coordinate Measuring Machine available.
Well maintained and accurate machine, ready to plug in and perform on your floor today!
Specs
X-Axis Measuring Range: 900mm (35.43")
Y-Axis Measuring Range: 1,600mm (62.99")
Z-Axis Measuring Range: 600mm (23.62")
Granite Table Size: 1,080mm x 2,320mm (42.51" x 91.33")
Max. Workpiece Height: 800mm (31.49")
Max. Workpiece Weight: 3,306 lbs
Machine Dimensions: 65.74" x 107.87" x 107.48"
Machine Weight: 6,322 lbs
Air Supply: 58 PSI
Resolution: 0.0001mm (0.000004")
Guide System: Air Bearings on All Axes
Equipped With
Renishaw PH10MQ Motorized Probe Head
Renishaw SP25-M Scanning Probe System
Renishaw SP25-2 Scanning Module
Renishaw Tooling
Up-to-Date MiCAT Software
Software Dongle
All Documentation
All Necessary Components for Installation and Operation
