Fluidtherm Rotary Annealing Retort Furnace 850 deg.c

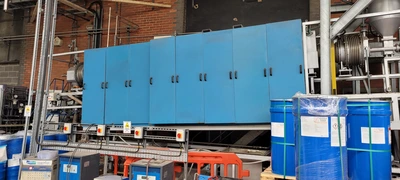

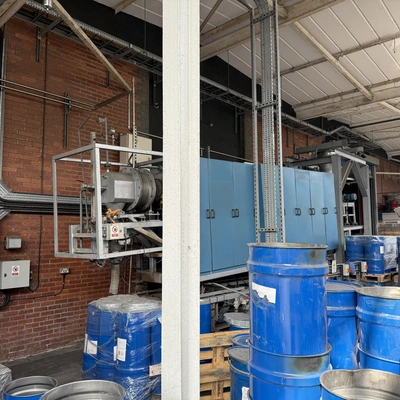

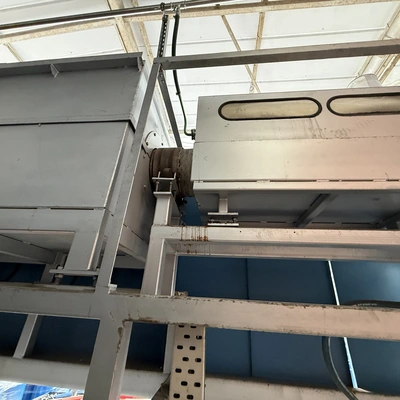

Rotary Annealing Retort  Furnace about 324 mm dia x 5,500 mm long
Mounted on Mile steel Frame with with tilt hinge flow control mild steel frame to support product feed IBC container to charge auger feed , Rotary furnace chamber 320 mm dia x 5,500 mm long with heated section about 3,115mm long with 3 off electrically heated zones with 3 phase supply 3 off zones with 12 w 29 A supply to heat up to 850 deg.c   Through to a cooling zone 1,400 mm long with water cooling with gill tube cooler ,chamber with hydrogen purging. mounted on mild steel frame to discharge into IBC  container. Overall size 9,000 mm x 2,000mm x 3,700 mm tall. Made by Fluid Thermal  2018.

Rotary Annealing Retort Furnace – Fluid Thermal (2018)

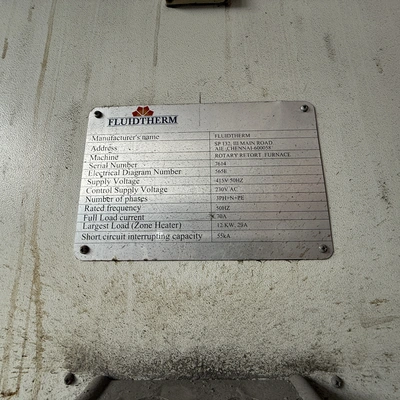

Manufacturer: Fluid Thermal
Year: 2018
Heavy-duty electrically heated rotary annealing retort furnace designed for continuous heat treatment and annealing of powders and granular products under a controlled hydrogen atmosphere.
Specification:

Rotary retort chamber approximately 324 mm diameter × 5,500 mm long

Electrically heated section approximately 3,115 mm long

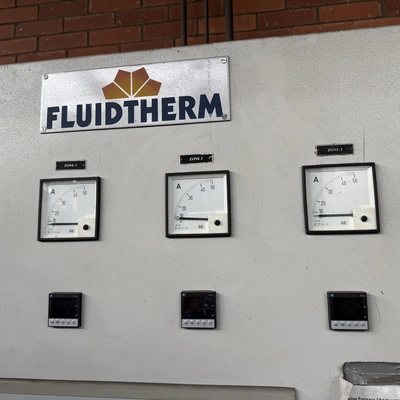

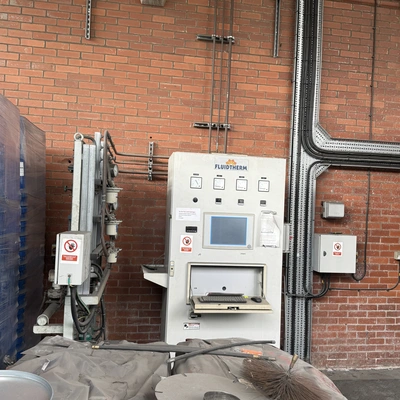

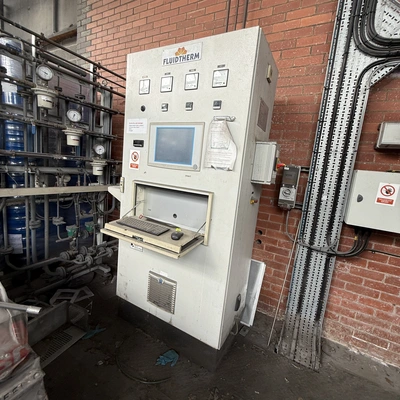

Three independently controlled heating zones

Maximum operating temperature: 850°C

Electric heating:

3 heating zones

3-phase electrical supply

Approximately 12 kW per zone (36 kW total installed heating load)

Approximately 29 A per heating zone

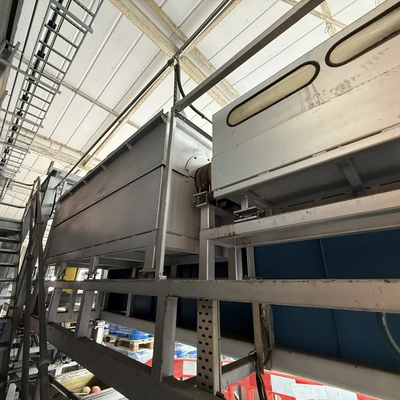

Product cooling section approximately 1,400 mm long

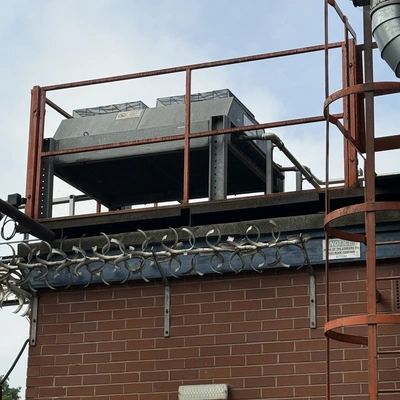

Water-cooled cooling zone fitted with gilled-tube heat exchanger

Hydrogen purge capability for controlled atmosphere processing

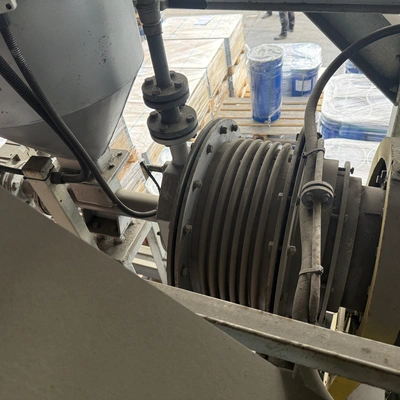

Rotary retort mounted on heavy-duty mild steel support frame

Variable tilt/flow control arrangement

Mild steel feed support frame designed to accept an IBC container

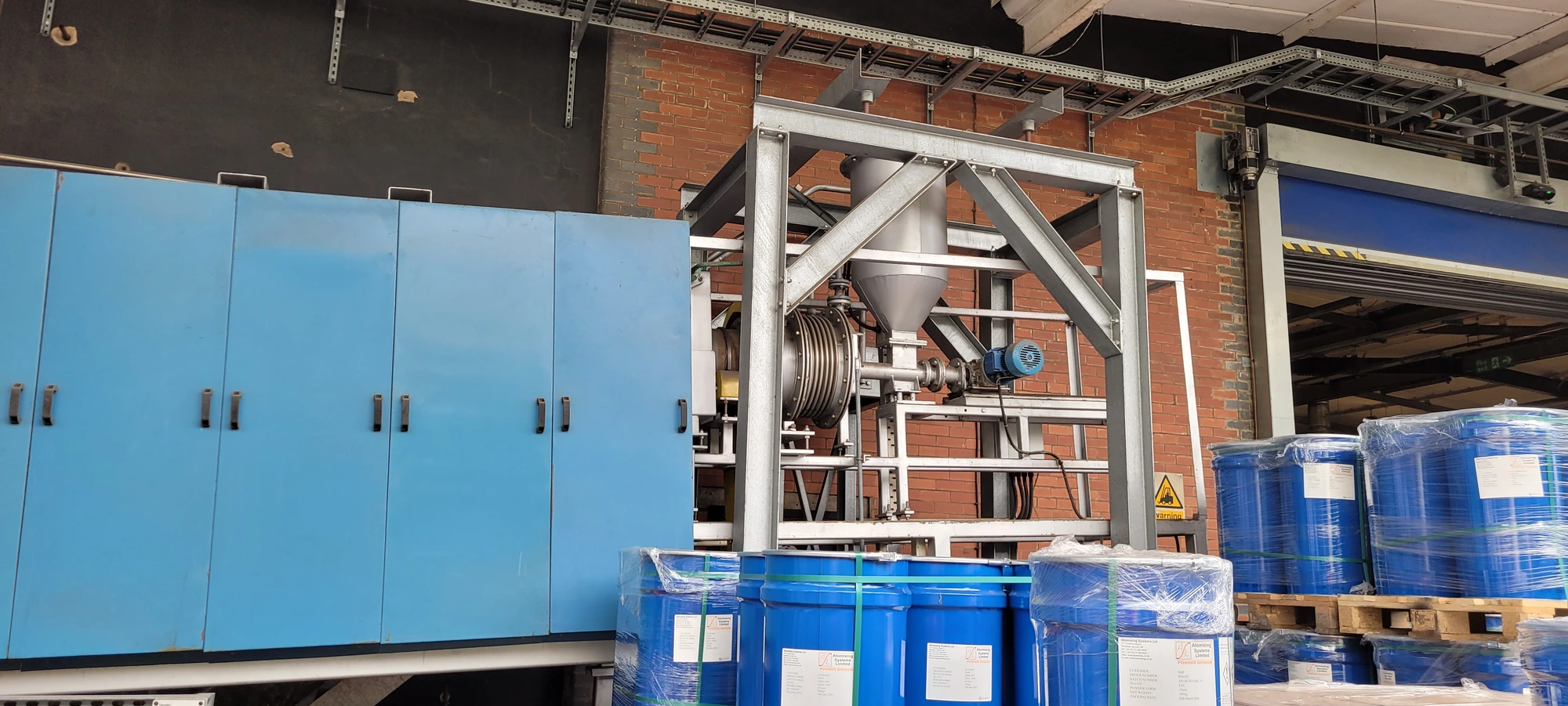

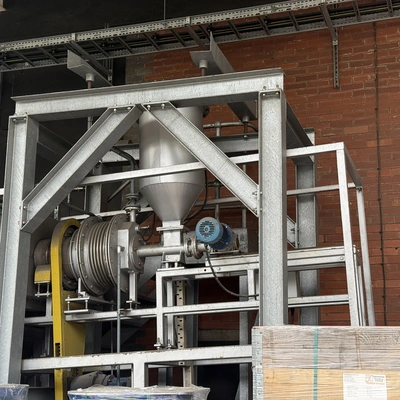

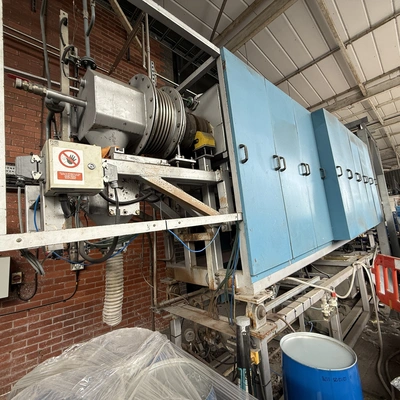

Auger feed system for continuous product charging

Product discharge into IBC container

Overall dimensions approximately:

9,000 mm long

2,000 mm wide

3,700 mm high

Typical Applications:

Annealing of metal powders

Heat treatment of specialist alloys

Powder metallurgy

Chemical and catalyst processing

Continuous thermal processing under inert or reducing atmospheres

This unit offers continuous operation with precise multi-zone temperature control, controlled hydrogen atmosphere capability, and integrated product cooling, making it suitable for demanding industrial heat-treatment applications.
