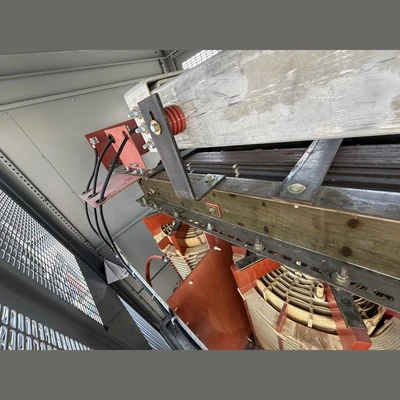

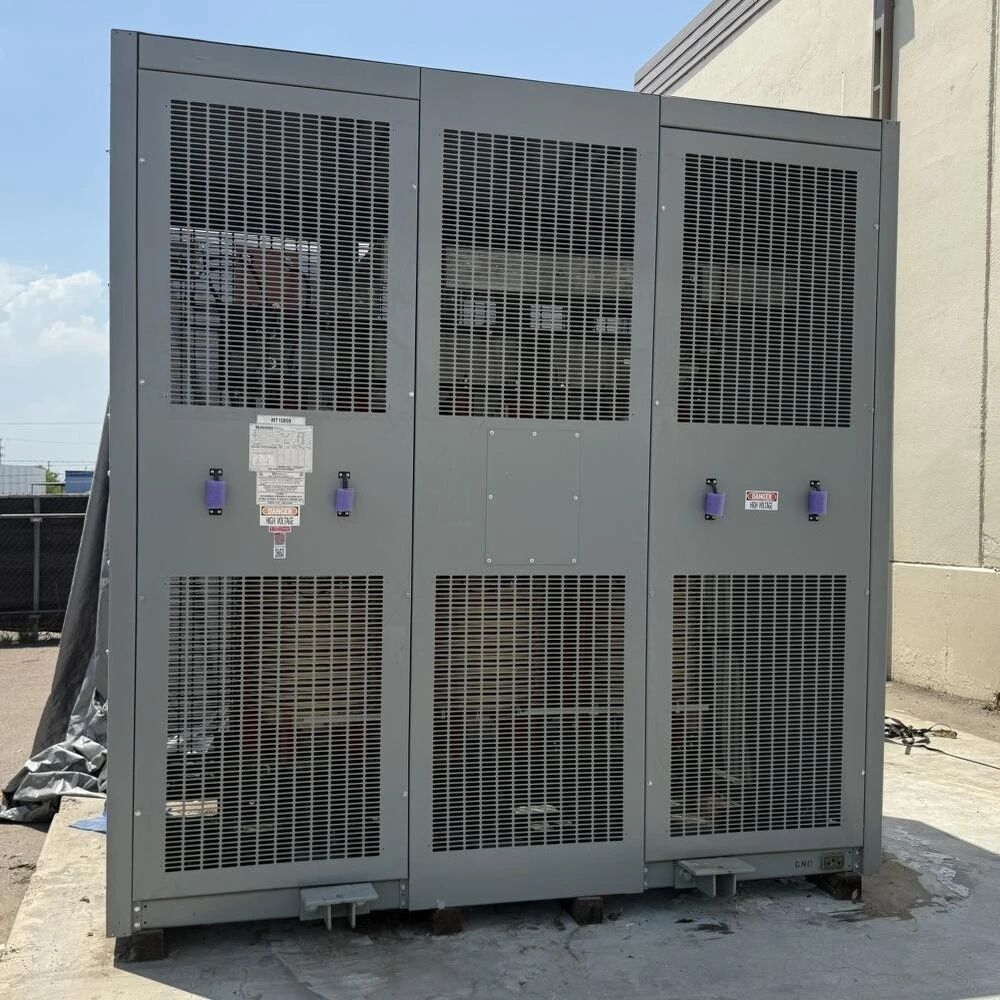

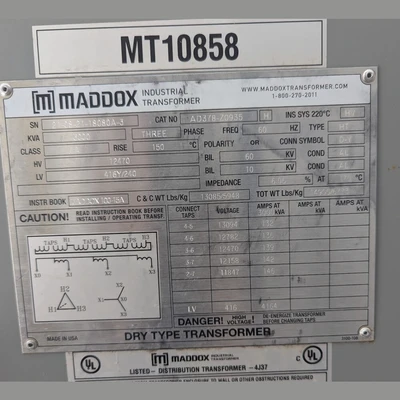

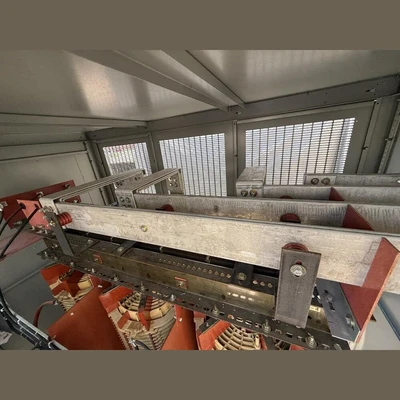

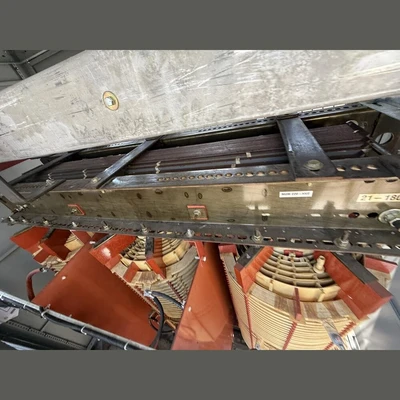

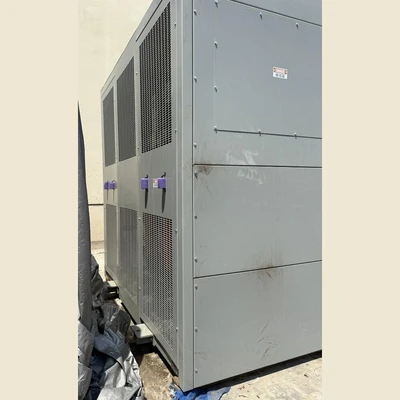

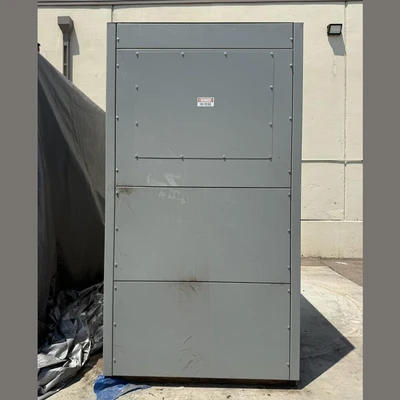

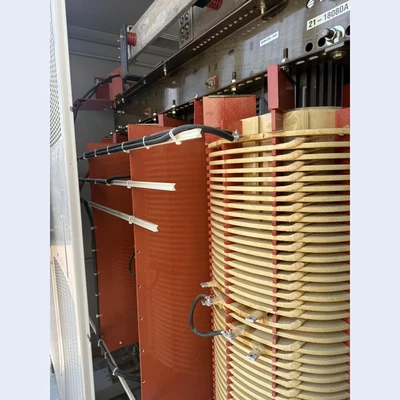

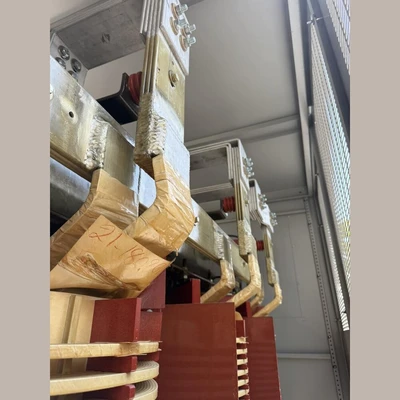

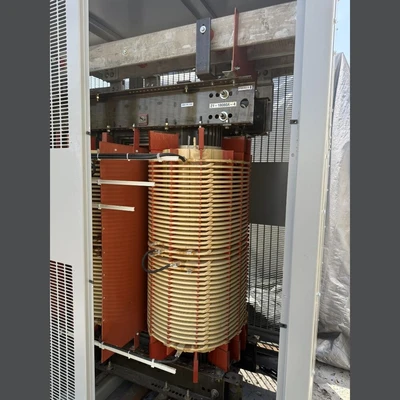

NEW MADDOX INDUSTRIAL TRANSFORMER MT10858

3000kVA Maddox Dry Type Transformer
Quantity: (4) Units Available
Make: Maddox Industrial Transformer
Model: MT10858
Cat No: AD378-Z0935 H
Type: Transformer
Style: Dry Type Distribution Transformer
Condition: New, Unused Surplus
KVA: 3000 kVA
Primary Voltage: 12,470 Volts
Secondary Voltage: 416Y/240 Volt
Frequency: 60 Hz
Phase: 3-Phase
Polarity/Conn Symbol: D-Y
HV BIL: 60 KV
LV BIL: 10 KV
Conductor (HV & LV): AL (Aluminum)
Type: HT
Class: AA
Temp Rise: 150°C
Insulation System: 220°C
Impedance: 6.06% at 170°C
Core & Coil Weight: 13,085 Lbs. (5,948 kg)
Total Weight: 14,900 Lbs. (6,773 kg)
Tap Voltages: (Current)
4-5: 13,094 Volt (132 A)
4-6: 12,782 Volt (136 A)
3-6: 12,470 Volt (139 A) - Rated Tap
3-7: 12,158 Volt (142 A)
2-7: 11,847 Volt (146 A)
LV: 416 Volt (4,164 A)
4-5: 13,094 Volt (132 A)
4-6: 12,782 Volt (136 A)
3-6: 12,470 Volt (139 A) - Rated Tap
3-7: 12,158 Volt (142 A)
2-7: 11,847 Volt (146 A)
LV: 416 Volt (4,164 A)
Location: West Central USA
