USED LEBLOND MAKINO REGAL 12C

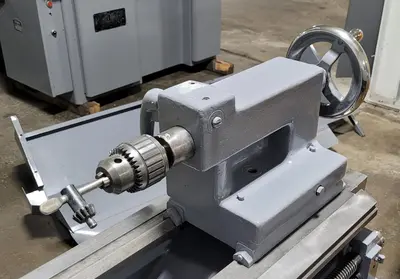

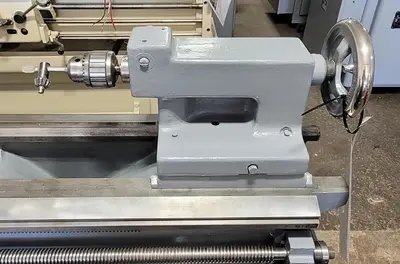

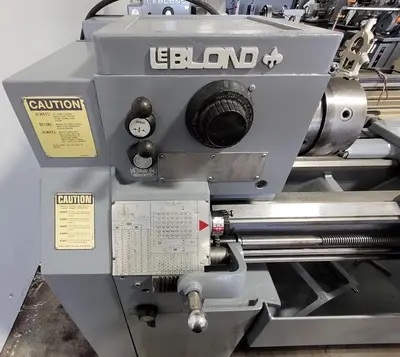

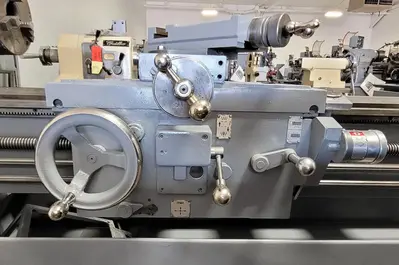

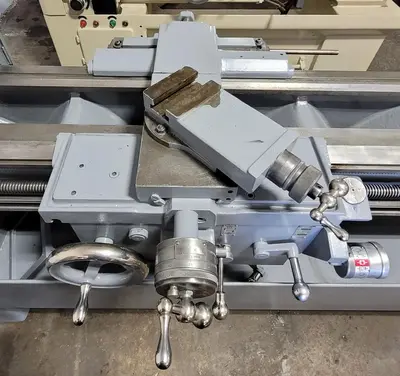

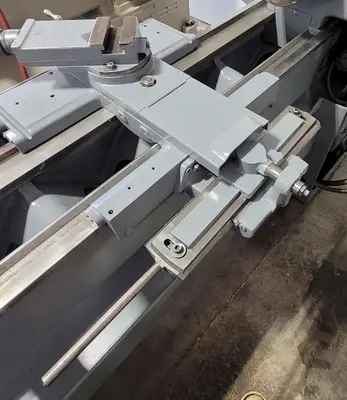

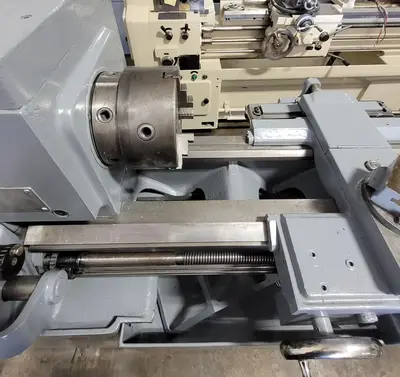

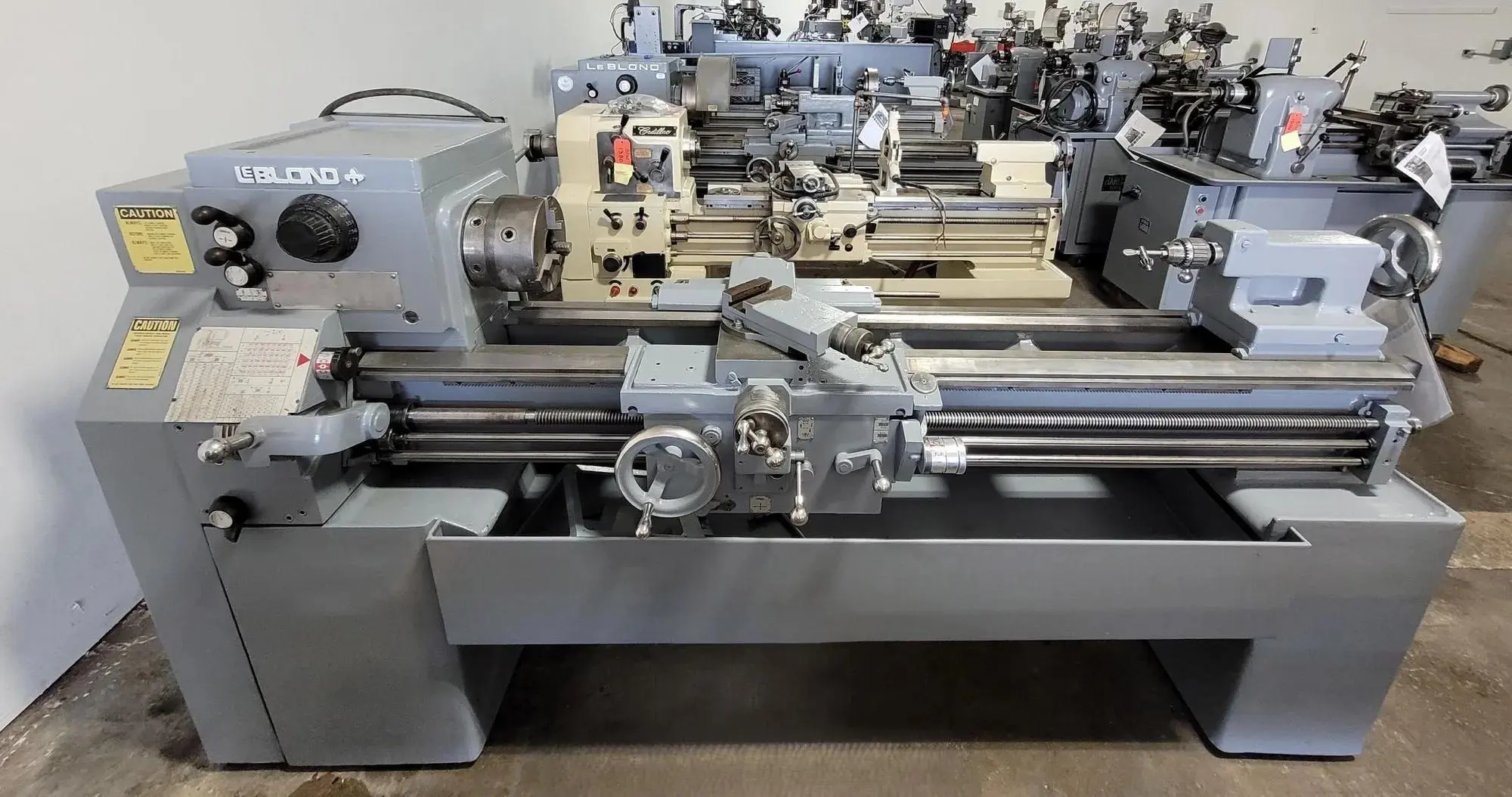

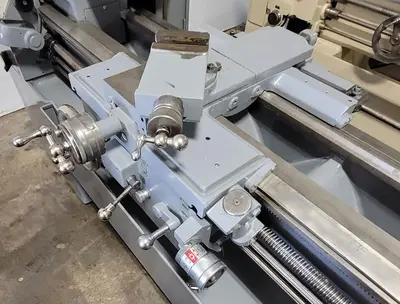

THIS LEBLOND MAKINO REGAL 12C SERVO SHIFT TOOLROOM LATHE FEATURES A 15.5 INCH SWING OVER THE BED AND A 10 INCH SWING OVER THE CROSS SLIDE, WITH A DISTANCE OF 54 INCHES BETWEEN CENTERS. THE SPINDLE IS POWERED BY A 7.5 HP MOTOR AND OFFERS 14 SPEEDS RANGING FROM 45 TO 1800 RPM, CONTROLLED VIA A SERVO-SHIFT DIAL-OPERATED SYSTEM. IT IS EQUIPPED WITH A 2.375 INCH SPINDLE BORE, A D1-6 CAMLOCK SPINDLE NOSE, AND A 4MT TAPER TAILSTOCK. THE MACHINE SUPPORTS BOTH INCH AND METRIC THREADING AND FEEDING CAPABILITIES. ADDITIONAL TECHNICAL COMPONENTS INCLUDE A TAPER ATTACHMENT, AN 8 INCH 3-JAW CHUCK, A STEADY REST, A QUICK-CHANGE TOOL POST, A CHIP PAN, AND CARRIAGE CONTROLS WITH MICROMETER STOPS AND A THREAD DIAL. THE UNIT HAS AN APPROXIMATE WEIGHT OF 3,500 LBS.
