USED DORIAN TOOL D35CXA HOLDERS

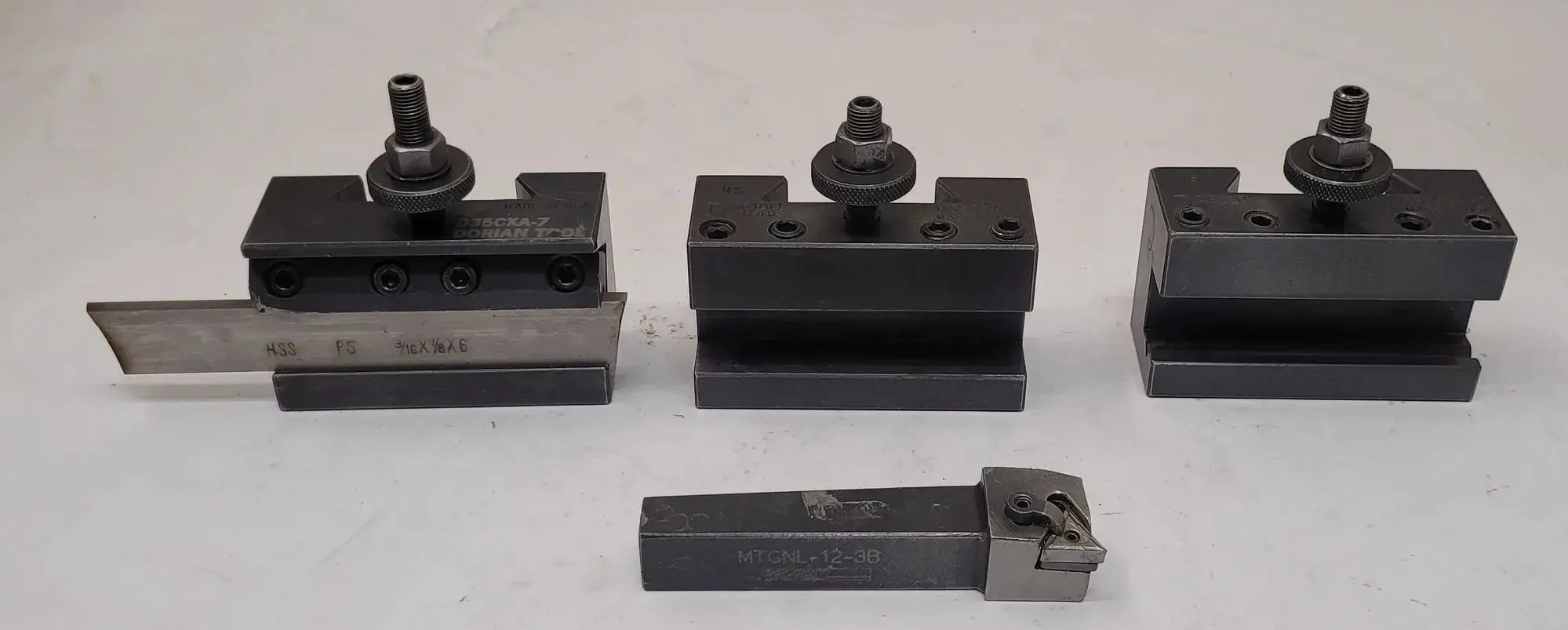

THE DORIAN TOOL SET OF THREE TOOL HOLDERS IS DESIGNED FOR LATHES WITH A 14 TO 17-INCH SWING, SPECIFICALLY WITHIN THE CXA SERIES. THE SET INCLUDES A D35CXA-1 TURNING AND FACING HOLDER WITH A TOOL CAPACITY FOR 3/4 TO 1-INCH SQUARE SHANKS, MEASURING 3.75 INCHES IN LENGTH, 2.5 INCHES IN HEIGHT, AND 1.75 INCHES IN WIDTH, WITH A MAXIMUM CENTERLINE HEIGHT OF 2.29 INCHES. THE D35CXA-2 HOLDER FEATURES A V-GROOVE FOR VERSATILITY, ACCOMMODATING 3/4 TO 1-INCH SQUARE SHANKS AND BORING BARS UP TO 1 INCH, WITH IDENTICAL EXTERIOR DIMENSIONS AND CENTERLINE HEIGHT. THE D35CXA-7 REVERSIBLE CUT-OFF HOLDER IS COMPATIBLE WITH SGIH 26 SERIES BLADES (2MM TO 6MM) AND ACCEPTS A MAXIMUM SHANK SIZE OF 1 INCH. IT HAS AN OVERALL HEIGHT OF 2.5 INCHES, AN OVERALL WIDTH OF 3.75 INCHES, AND A MAXIMUM CENTERLINE HEIGHT OF 2.04 INCHES. ADDITIONALLY, THE SET INCLUDES A SECO CARBOLOY MTGNL-12-3B TOOL WITH A .750 X .750-INCH SHANK SIZE AND AN OVERALL LENGTH OF 4.50 INCHES.
