USED MOORE 450-CPZ

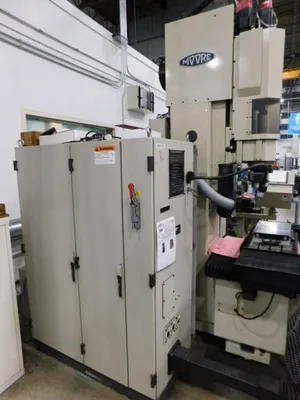

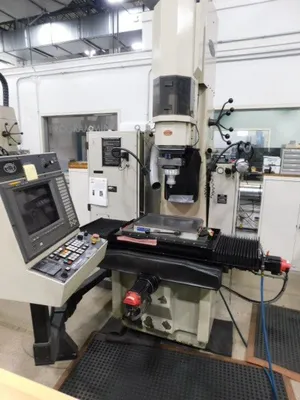

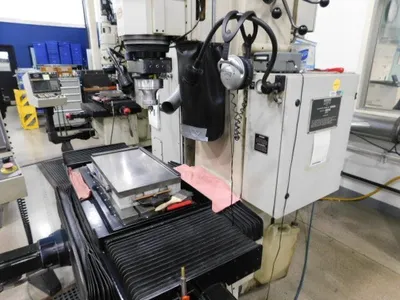

ONE USED MOORE FOUR AXIS CONTINUOUS PATH CNC JIG GRINDER -

Model – 450CPZ

STANDARD SPECIFICATIONS:

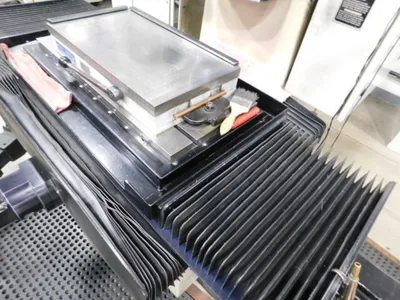

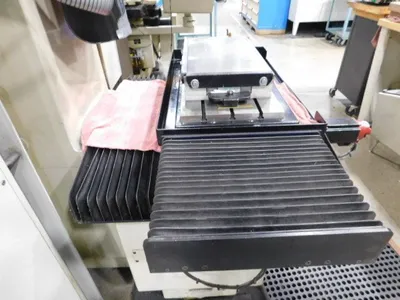

Table working surface - 11" x 24"
X Table travel – 19.6”
Y Table cross travel – 11.8”
Z travel – 13.80”
Spindle housing vertical travel - 12 5/8"
Spindle vertical travel (auto feed range) – 3 5/8"
Table top to wheel collet - 2 to 18"
Grinding hole capacity - 1/64" to 5"
Grinding wheel speeds - 6,000 rpm to 175,000 rpm w/optional grinding heads
Positioning accuracy (When New) - in 18" = 0.000120", in 1" = 0.000030"
Cross travel - in 11" = 0.000120", in 1" - 0.0000030"
Traverse rates - X & Y, up to 20 ipm positioning, & 10 ipm for contouring
Reciprocating rate - up to 190 cycles/min at 1" stroke
Programmable grinding head outfeed (U-axis) in increments of 0.000010" for a distance of 0.140" anywhere within full range
Weight: approximately 5,000 lbs.
Wired 460v/3ph/50-60cy
Amps draw: 25

Equipped with:

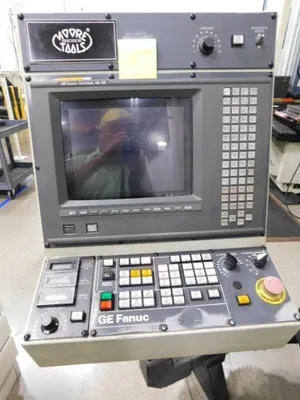

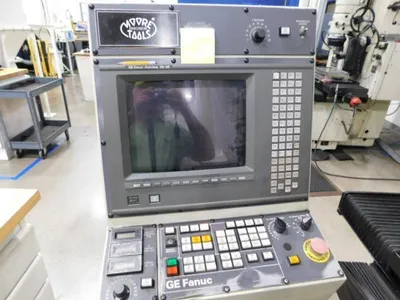

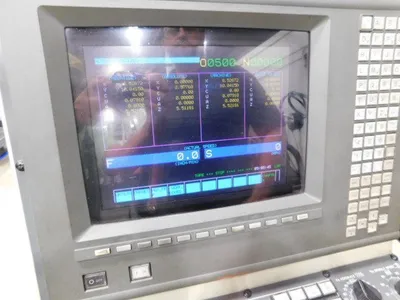

Fanuc 15M controls, programmable to 5 decimal places
Programmable Z axis which allows you to do Conicals,
Allowing you Plunge grind to within 5 microns of bottom of part.
Automatic sizing

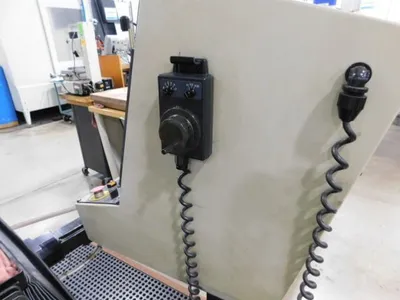

Hand pulse generator
Double V-slideway uses matched roller bearings X & Y)

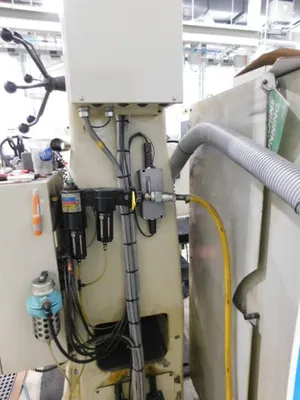

Automatic shutdown if air drops
Fully automatic lube for X, Y, & moving components

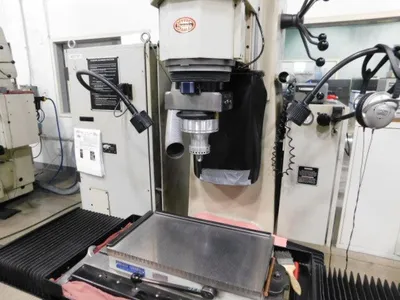

Freshly rebuilt 40,000 rpm Work Head
Listening System
Manuals

Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.

Condition: Excellent – Was Holding 0.0001”

Location: Chicago, IL
