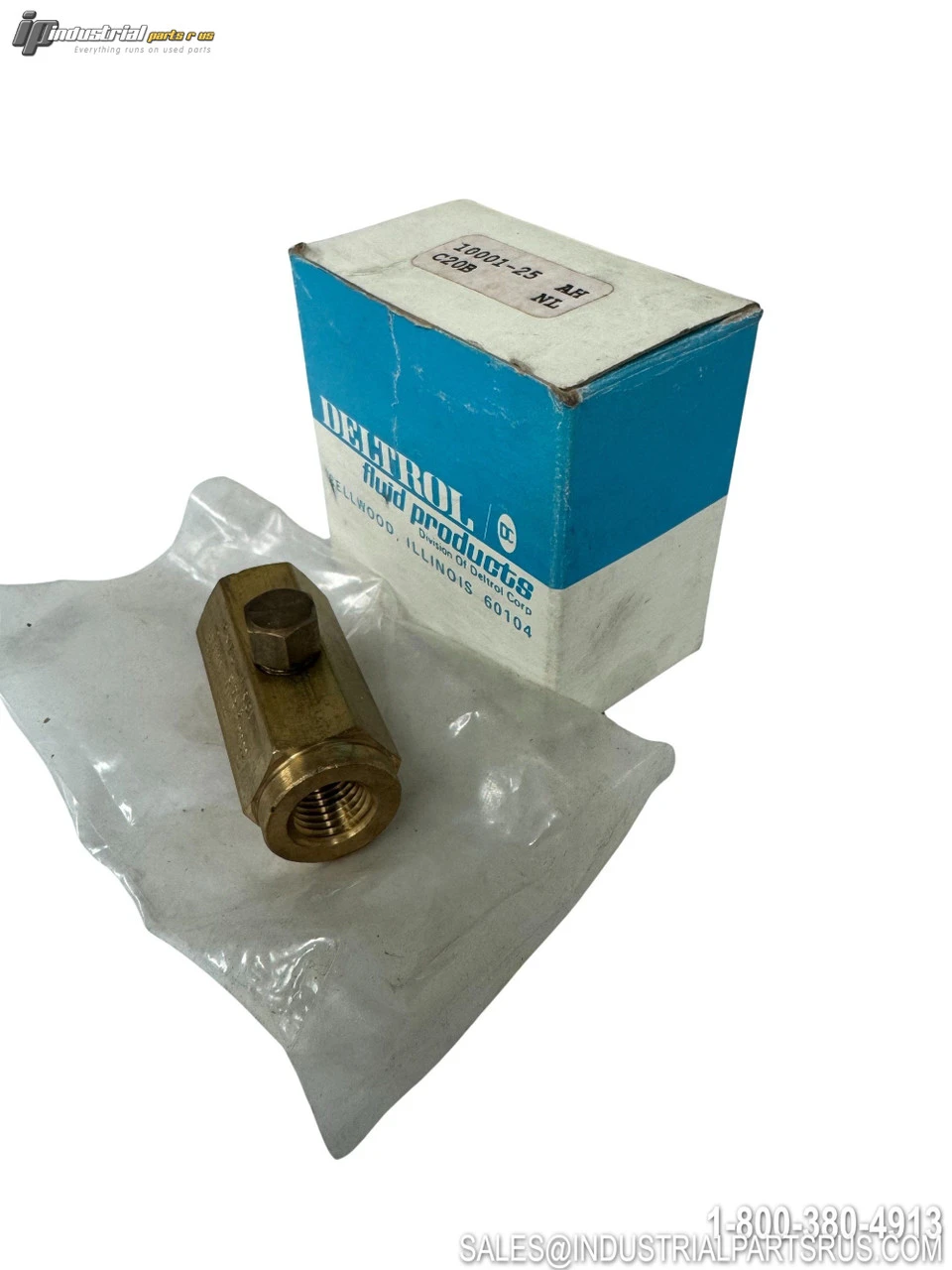

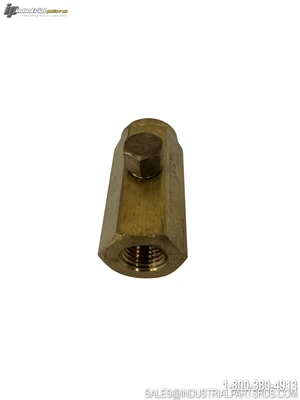

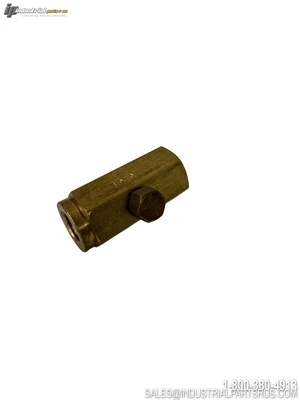

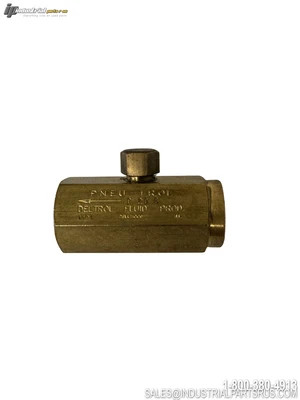

NEW DELTROL C20B

The Deltrol Fluid Products C20B is a direct-acting, inline ball check valve featuring a female-to-female 1/4" NPTF brass body. It operates on a slight differential pressure, allowing free flow in the direction of the arrow while providing a positive check in the opposite direction. The elastomer-free, leak-tight ball check design makes it compatible with a wide range of media in hydraulic and pneumatic systems.
Specification
Value
Brand
Deltrol Fluid Products
Model / Part Number
C20B
Alternate Part Number
10001-25
Valve Type
Direct-Acting Ball Check Valve
Check Mechanism
Ball Check (Elastomer-Free / No O-Rings)
Connection Type
Female-to-Female
Port Size
1/4"
Thread Type
NPTF (1/4-18 NPT)
Body Material
Brass
Ball Material
Stainless Steel 440
Collar / Spring Material
Stainless Steel 303 / Stainless Steel 302
Max Operating Pressure (PSI)
2,000 PSI
Max Operating Pressure (bar)
138 bar
Max Flow Rate (GPM)
3.00 GPM
Max Flow Rate (LPM)
11.40 LPM
Cracking Pressure
1 – 2.5 PSI (0.07 – 0.17 bar)
Cv Flow Coefficient
0.54
Orifice Diameter
23/64" (9.1 mm)
Overall Length
2" (50.8 mm)
Overall Width (Hex)
7/8" (22.2 mm)
Operating Temperature Range
-30°F to +400°F (-34°C to +204°C)
Mounting Type
Inline
Series / Product Line
PneuTrol / C Series
Application
Hydraulic and Pneumatic Systems
We warranty all items for 30 days from date of purchase.
