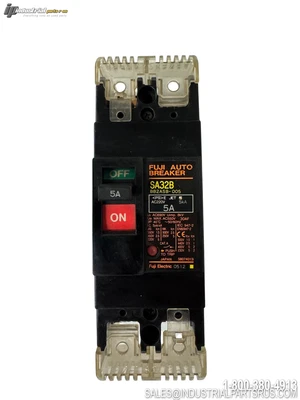

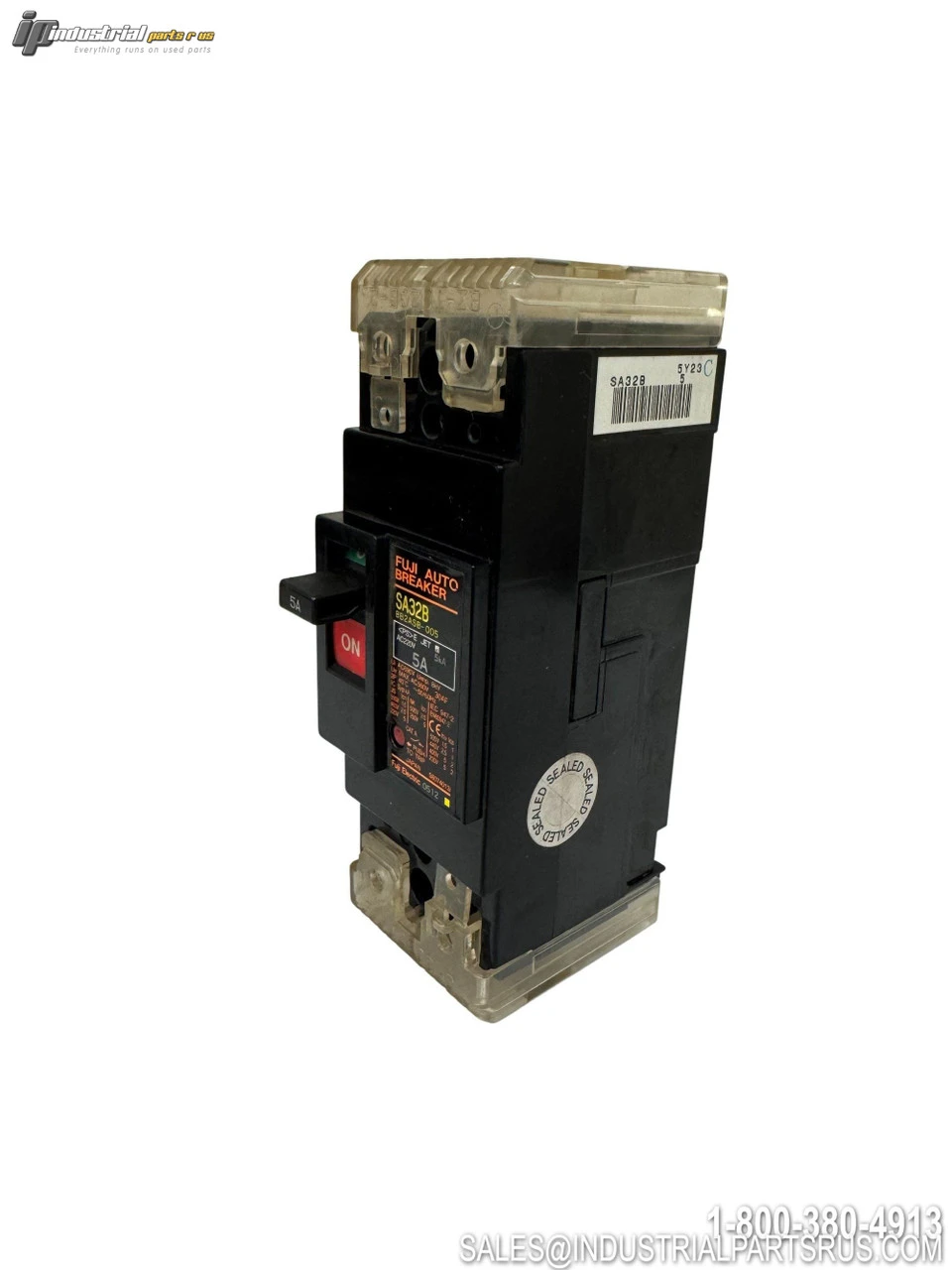

USED FUJI SA32B 5A

The Fuji Electric SA32B is a compact molded case circuit breaker (MCCB) designed for branch circuit protection in industrial and commercial applications. This 5A, 2-pole unit provides reliable overload and short-circuit protection via a thermal-magnetic trip mechanism, and is rated for operation up to 550V AC. It complies with JIS and IEC 60947-2 standards and carries NK certification, making it suitable for a wide range of global installations. The breaker features screw terminal connections, a toggle-style actuator with ON/OFF indicator, and a push-to-trip test button for manual verification.
Specification
Value
Brand
Fuji Electric
Model / Part Number
SA32B 5A
Alternate Part Number
BB2ASB-005
Product Type
Molded Case Circuit Breaker (MCCB)
Rated Current
5 A
Number of Poles
2P (2-Pole)
Rated Voltage
AC 220V
Maximum Voltage Rating
550V AC
Rated Insulation Voltage (Ui)
690V AC
Impulse Withstand Voltage (Uimp)
8 kV
Rated Frequency
50/60 Hz
Interrupting Capacity @ 220V
5 kA
Interrupting Capacity @ 460V
2.5 kA
Interrupting Capacity @ 550V
1.5 kA
Trip Type
Thermal-Magnetic
Actuator Type
Toggle Switch with ON/OFF Indicator
Push-to-Trip
Yes (Manual Test Button)
Mounting Type
Panel Mount
Operating Temperature
-10°C to +40°C (Reference: 40°C Ambient)
Standards / Certifications
JIS, IEC 60947-2, NK Certified
Category
CAT.A
Manufacturer
Fuji Electric
We warranty all items for 30 days from date of purchase.
