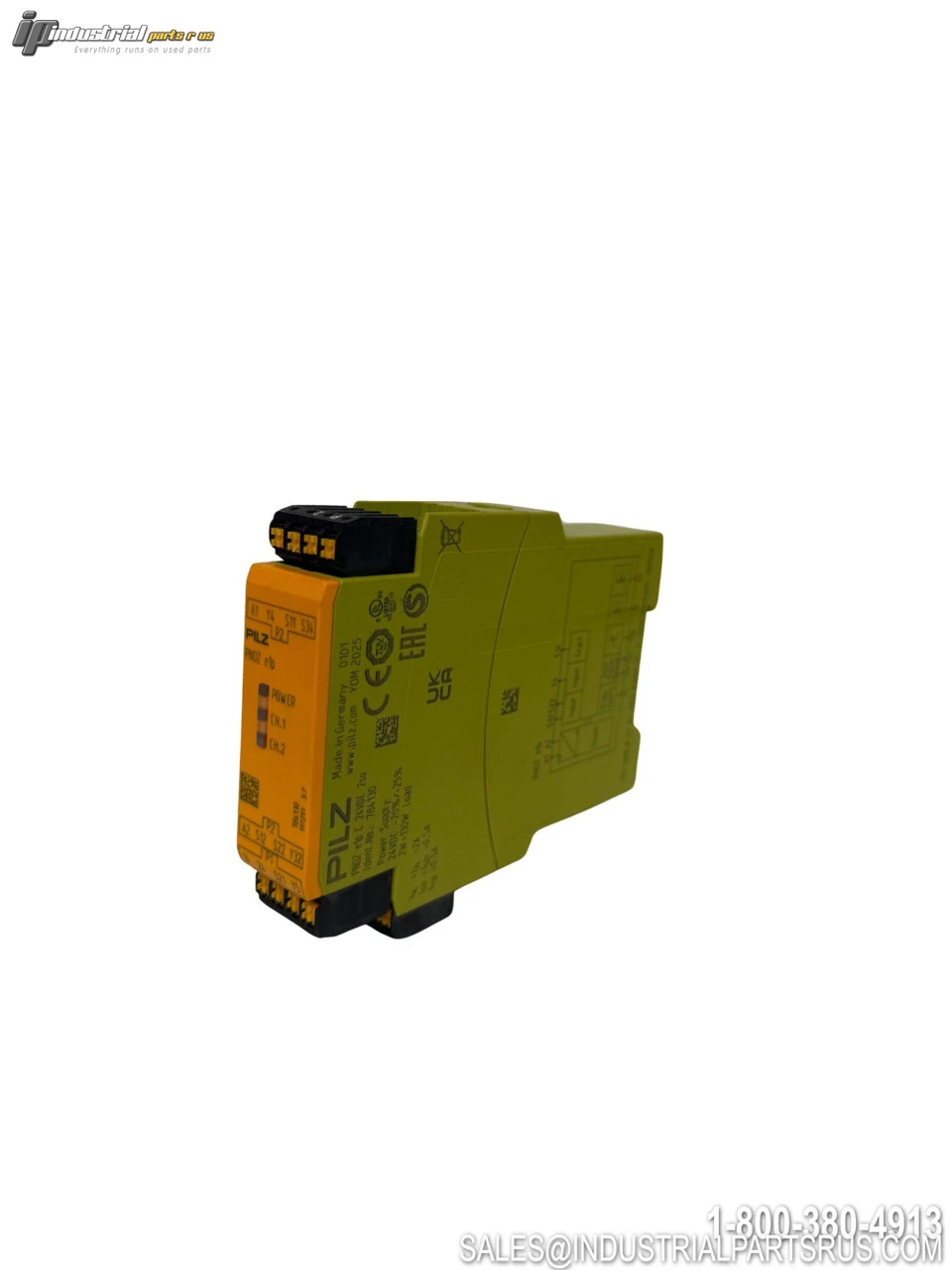

USED PILZ 784130

The Pilz 784130 (PNOZ e1p C 24VDC 2so) is a standalone PNOZelog series safety relay designed for single or dual-channel monitoring of E-STOP circuits, safety gates, light beam devices, and limit switches. It features plug-in spring-loaded terminals for easy installation and achieves up to SIL 3 / PL e / Category 4 safety performance per EN ISO 13849-1 and EN 62061. The relay supports both automatic and monitored manual start modes, self-test functionality, and detection of shorts across contacts, making it suitable for demanding machine safety applications.
Specification
Value
Brand
Pilz
Model / Part Number
784130
Product Name
PNOZ e1p C 24VDC 2so
Product Series / Family
PNOZelog
Supply Voltage
24V DC (19.2–30V DC range, 24V DC nominal)
Voltage Type
DC
Rated Current
2A
Number of Inputs
2 (1 x Digital Input 24VDC / 5mA)
Input Wiring
1/2-channel, with or without detection of shorts across contacts
Number of Safety Outputs
2 (instantaneous, undelayed)
Auxiliary Output
1 (in SC technology)
Total Outputs
5
Number of Test Pulse Outputs
2
Safety Integrity Level
SIL 2 (Cat.2 / PLd) / SIL 3 (Cat.4 / PLe)
Performance Level
PL d / PL e per EN ISO 13849-1
Safety Category
Category 2 / Category 4
Stop Category
0
PFH (SC output; 1-ch. monitored start)
1.34E-08
PFH (SC output; 2-ch. monitored start)
3.44E-09
Start Modes
Automatic / Monitored Manual Reset
Application Options
E-STOP monitoring, Safety gate monitoring, Limit switch monitoring, Light beam device monitoring Type 2 & Type 4
Connection Type
Plug-in / Detachable spring-loaded terminals
Mounting Type
DIN Rail
IP Rating
IP40
Ambient Temperature
-10°C to +55°C
Width
22.5 mm
Height
94 mm
Depth
121 mm
Net Weight
120 g
Gross Weight
135 g
Display / Indicators
Power LED, CH.1 LED, CH.2 LED
Product Standard
EN 60947-5-1
Applicable Standards
EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1, VDE 0116, DIN V VDE 801-1/A1
Certifications
CE, cULus, EAC (Eurasian), TÜV, CCC
GTIN
4046548008920
We warranty all items for 30 days from date of purchase.
