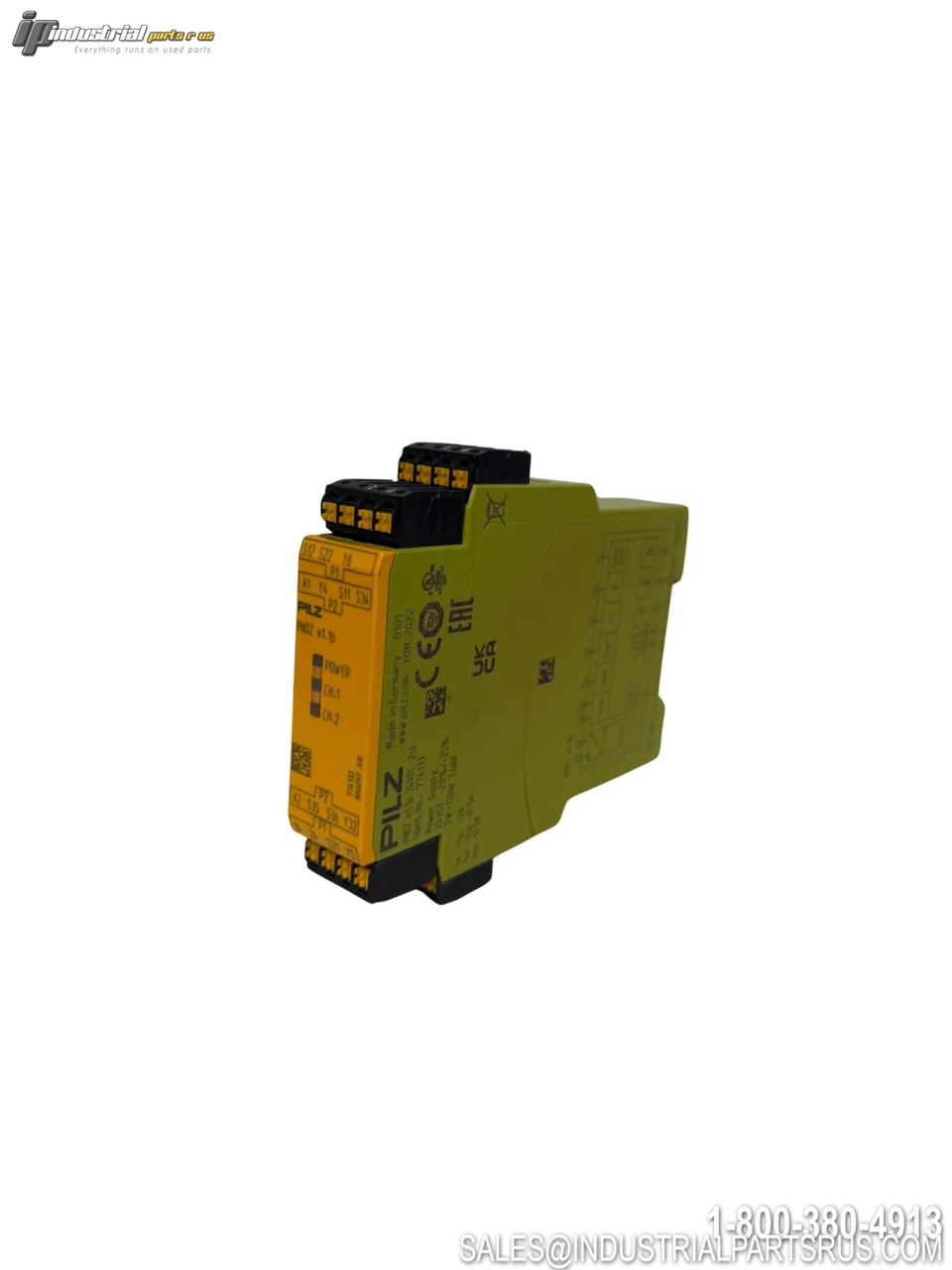

USED PILZ 774133

The Pilz 774133 (PNOZ e1.1p 24VDC 2so) is a standalone safety relay from the PNOZelog series, designed for safety-related interruption of control circuits in industrial machinery. It supports single- or dual-channel input wiring with optional detection of shorts across contacts, and provides two semiconductor safety outputs plus one auxiliary output for monitoring E-STOP pushbuttons, safety gates, light beam devices, and limit switches. The unit features automatic or monitored start modes, AND/OR logic inputs for linking multiple PNOZelog units, and continuous self-testing for the highest level of functional safety up to SIL 3 / PL e / Category 4.
Specification
Value
Brand
Pilz
Model / Part Number
774133
Product Name
PNOZ e1.1p 24VDC 2so
Series / Family
PNOZelog
Product Type
Safety Relay (Standalone)
Supply Voltage (Nominal)
24V DC
Supply Voltage Range
19.2–30V DC
Input Channels
1 or 2-channel wiring (with/without short-circuit detection)
Number of Inputs
2 (digital, 24VDC; 5mA)
Number of Outputs
5 total (2 safety outputs + 1 auxiliary transistor output + 2 test pulse outputs)
Safety Outputs
2 NO (semiconductor / SC technology)
Instantaneous Contacts
2NO
Auxiliary Output
1 transistor output (semiconductor)
Contact / Current Rating
0.5–2A
Safety Category
Category 4 (EN 954-1 / EN ISO 13849-1)
Safety Integrity Level
SIL 3 (IEC 62061)
Performance Level
PL e (EN ISO 13849-1)
Start Mode
Automatic or Monitored (manual) start
Logic Inputs
S35 (OR), S36 (AND) — for linking multiple PNOZelog units
Monitoring Functions
E-STOP, Safety Gates, Limit Switches, Light Beam Devices (Type 2 & Type 4)
Mounting Type
DIN Rail (35mm)
Terminal / Connection Type
Plug-in Screw Terminals
Housing Width
22.5 mm
Dimensions (H x W x D)
3.7 in x 0.89 in x 4.76 in (approx. 94 x 22.5 x 121 mm)
Gross Weight
144.8 g (5.04 oz)
IP Rating
IP40
Operating Temperature
-10°C to +55°C
Vibration Frequency
10–55 Hz
Applicable Standards
EN60204-1, EN954-1, VDE0113-1, VDE0116, EN 60947-5-1
Approvals / Certifications
UL, cUL, TÜV, CCC, RoHS
GTIN
4046548011968
We warranty all items for 30 days from date of purchase.
