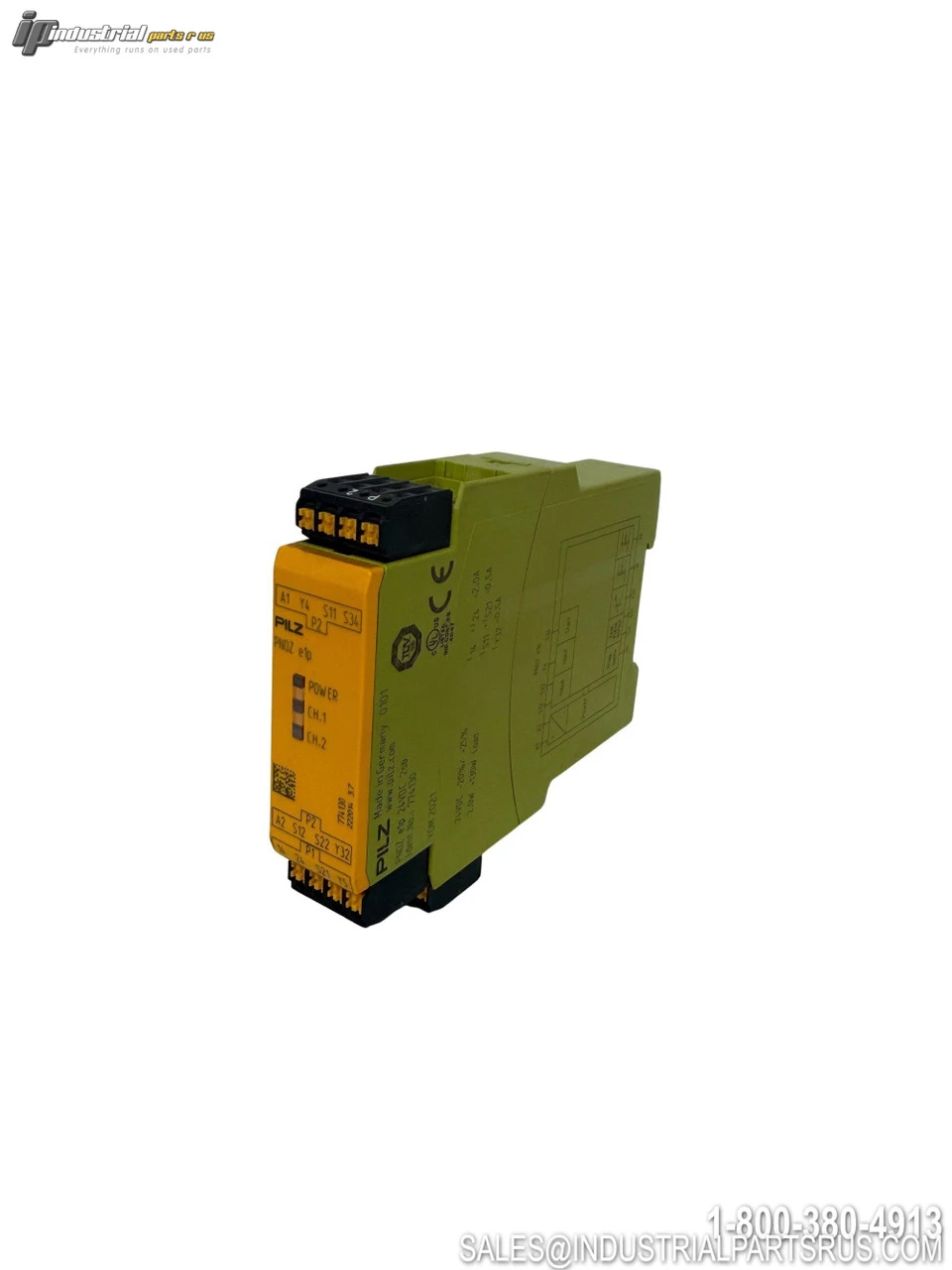

USED PILZ 774130

The Pilz 774130 is the PNOZ e1p 24VDC 2SO standalone safety relay from the PNOZelog product family. It provides single or dual-channel monitoring for E-STOP circuits, safety gates, limit switches, and light beam devices (Type 2 and Type 4), featuring 2 instantaneous semiconductor safety outputs and 1 auxiliary semiconductor output. The unit supports automatic and monitored start modes, continuous self-testing, and is safety-rated up to SIL 3 / PL e / Category 4 per EN ISO 13849-1 and EN 62061.
Specification
Value
Brand
Pilz
Model / Part Number
774130
Product Name
PNOZ e1p 24VDC 2SO
Series / Family
PNOZelog
Product Type
Safety Relay (Standalone)
Supply Voltage (Nominal)
24 VDC
Supply Voltage Range
19.2 – 30 VDC
Coil / Operating Voltage
24VDC
Input Channels
1 or 2 channel (with/without short-circuit detection)
Digital Input
1 x 24VDC / 5mA (S12, S22, Y4)
Test Pulse Outputs
2 x Test pulse outputs (S11–S21)
Safety Outputs
2 x Instantaneous semiconductor safety outputs (14, 24)
Auxiliary Output
1 x Instantaneous semiconductor auxiliary output (Y32)
Output Technology
Semiconductor (SC) outputs
Rated Output Current
2 A
Start Mode
Automatic or Monitored (manual) start
Safety Integrity Level
SIL 2 (1-ch, monitored start) / SIL 3 (1/2-ch, auto start)
Performance Level
PL d / Cat. 2 (1-ch) — PL e / Cat. 4 (1/2-ch auto start)
PFH Value
1.34E-08 (1-ch, mon. start) / 3.44E-09 (1/2-ch, auto start)
Monitoring Functions
E-STOP, Safety Gates, Limit Switches, Light Beam Devices Type 2 & 4
Mounting Type
DIN Rail
Connection Type
Plug-in / Detachable Screw Terminals
Housing Width
22.5 mm
Dimensions (H x W x D)
94 mm x 22.5 mm x 121 mm
Degree of Protection
IP40
Ambient Operating Temperature
-10 to +55°C
Housing Material
PPO body / ABS front housing
Display / Indicators
Power LED, CH.1 LED, CH.2 LED
Applicable Standards
EN 60947-5-1, EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1, VDE 0116, DIN V VDE 801-1/A1
Approvals / Certifications
CE, cULus, EAC, TÜV, CCC
Product Status
Phase-out / Discontinued
We warranty all items for 30 days from date of purchase.
