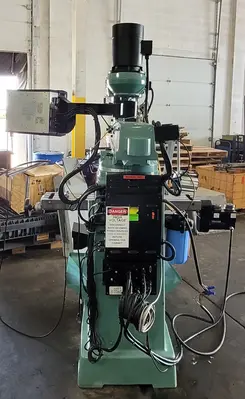

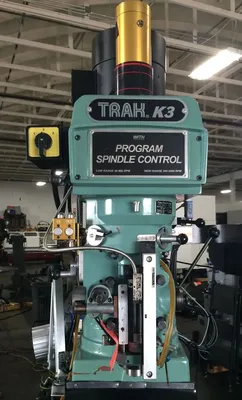

USED 2012 SOUTHWESTERN INDUSTRIES TRAK K3SX

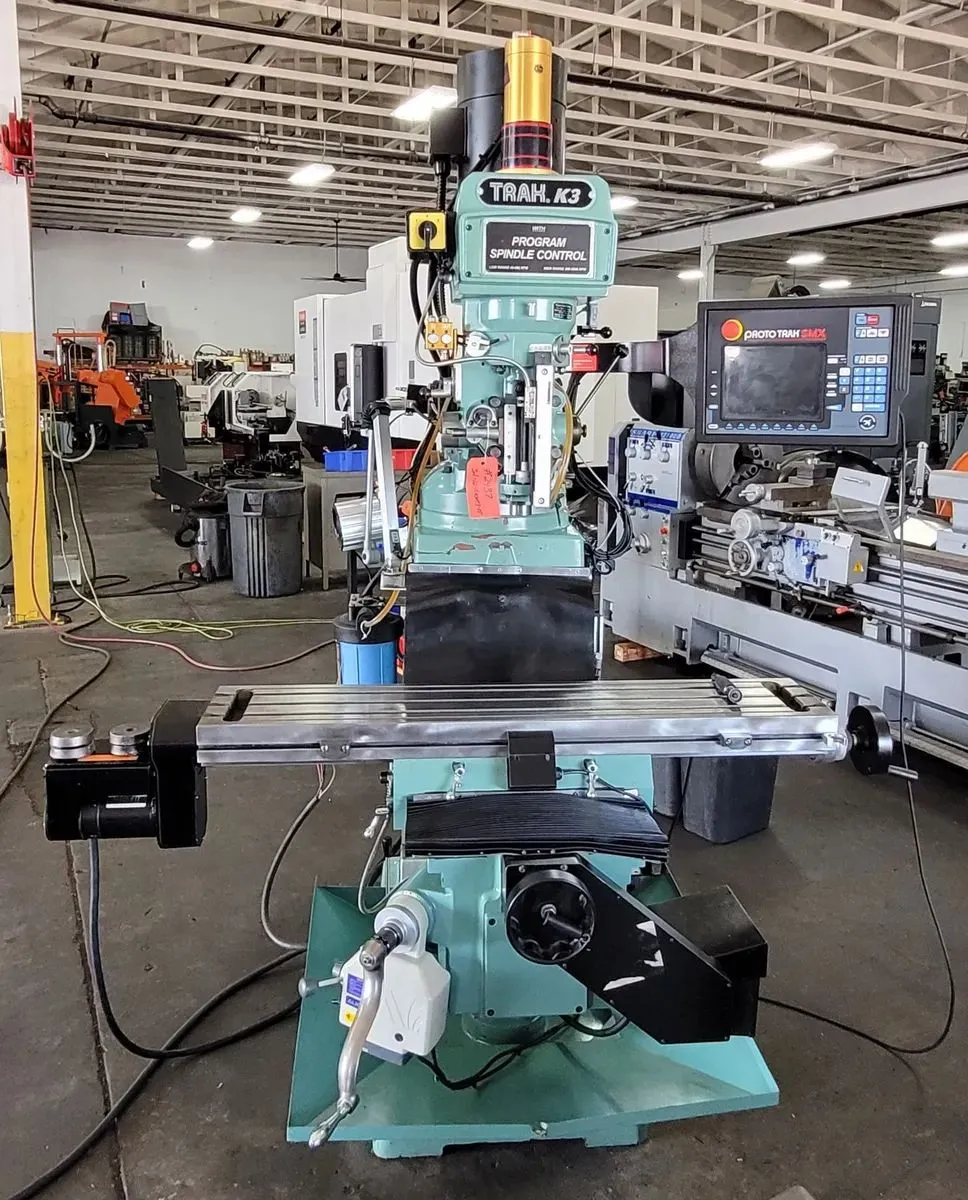

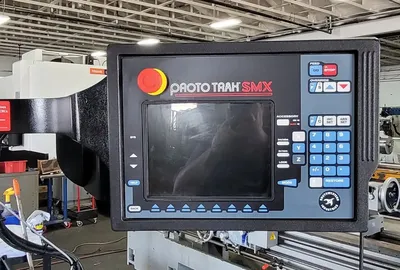

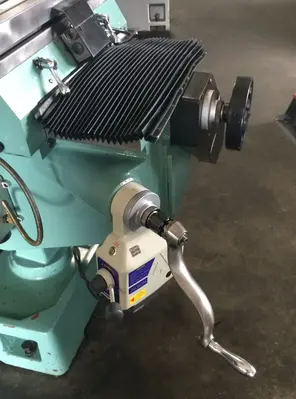

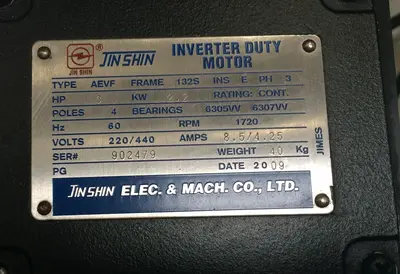

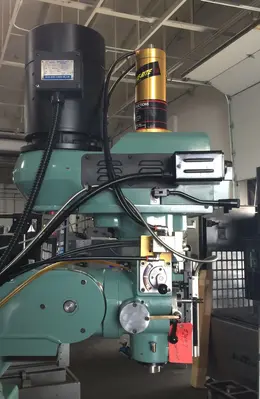

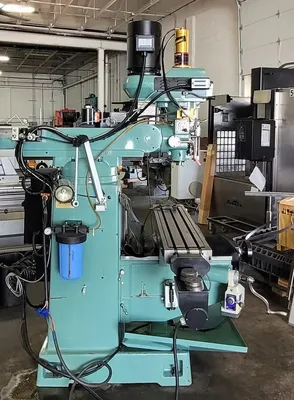

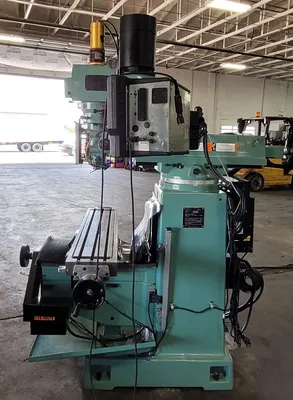

THE 2012 SOUTHWESTERN INDUSTRIES TRAK K3SX IS A VERTICAL CNC KNEE MILL EQUIPPED WITH THE PROTOTRAK SMX CONTROL SYSTEM, SUPPORTING 2-AXIS CNC OPERATION AND 3-AXIS DIGITAL READ-OUT (DRO). THE MACHINE FEATURES A 10 INCH BY 50 INCH TABLE WITH A MAXIMUM WORKPIECE WEIGHT CAPACITY OF 850 LBS. TRAVEL SPECIFICATIONS INCLUDE 32 INCHES OF LONGITUDINAL TRAVEL (X-AXIS), 16 INCHES OF CROSS TRAVEL (Y-AXIS), 16 INCHES OF VERTICAL KNEE TRAVEL (Z-AXIS), AND 15 INCHES OF RAM TRAVEL. THE SPINDLE IS POWERED BY A 3 HP MOTOR, PROVIDING A VARIABLE SPEED RANGE FROM 60 TO 4,200 RPM. IT UTILIZES AN R8 SPINDLE TAPER AND FEATURES A CHROME-HARDENED AND GROUND QUILL WITH A 3-3/8 INCH DIAMETER AND 5 INCHES OF MAXIMUM TRAVEL. THE HEAD IS CAPABLE OF TILTING 45 DEGREES FORWARD OR BACK AND 90 DEGREES LEFT OR RIGHT. CONSTRUCTION INCLUDES PRECISION 7207 CP4 SPINDLE BEARINGS AND TRUE MANUAL HANDWHEELS FOR MANUAL OPERATION. STANDARD HARDWARE INCLUDES A MAXI TORQUE-RITE POWER DRAW BAR AND POWER FEED IN THE KNEE. THE MACHINE'S PHYSICAL FOOTPRINT IS APPROXIMATELY 71 INCHES LONG, 59 INCHES WIDE, AND 84 INCHES HIGH, WITH AN OVERALL WEIGHT OF 4,500 LBS. ELECTRICAL REQUIREMENTS SPECIFY 220V 3-PHASE POWER FOR THE MACHINE AND 110V SINGLE-PHASE POWER FOR THE CONTROL SYSTEM.
