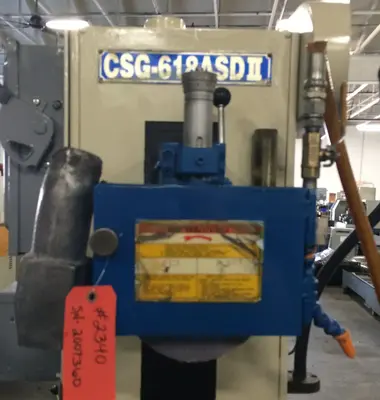

USED CLAUSING CSG-618ASD II

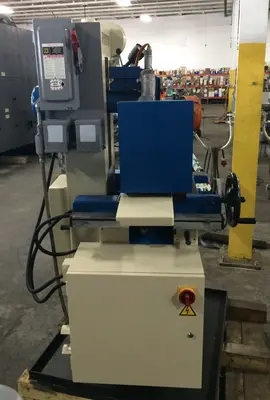

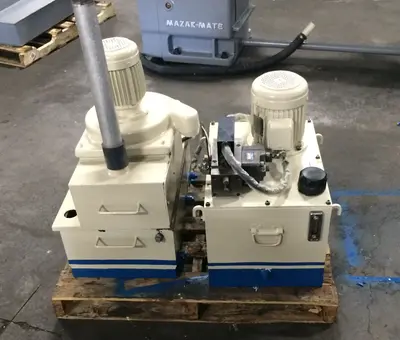

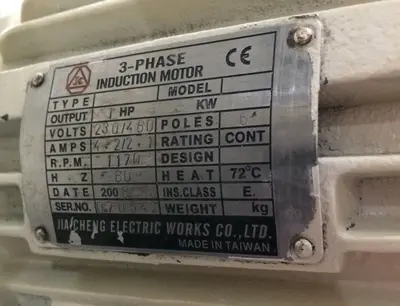

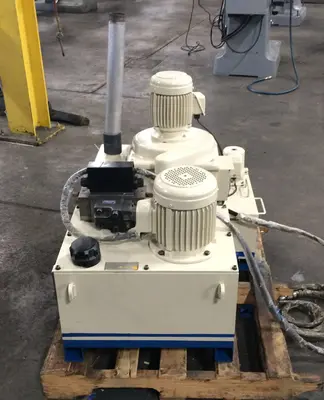

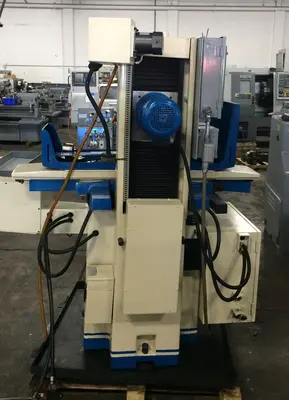

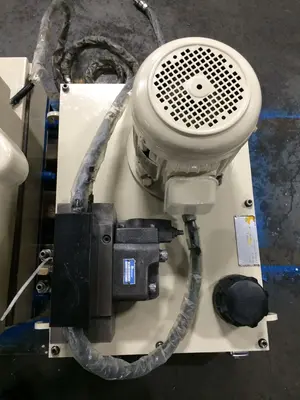

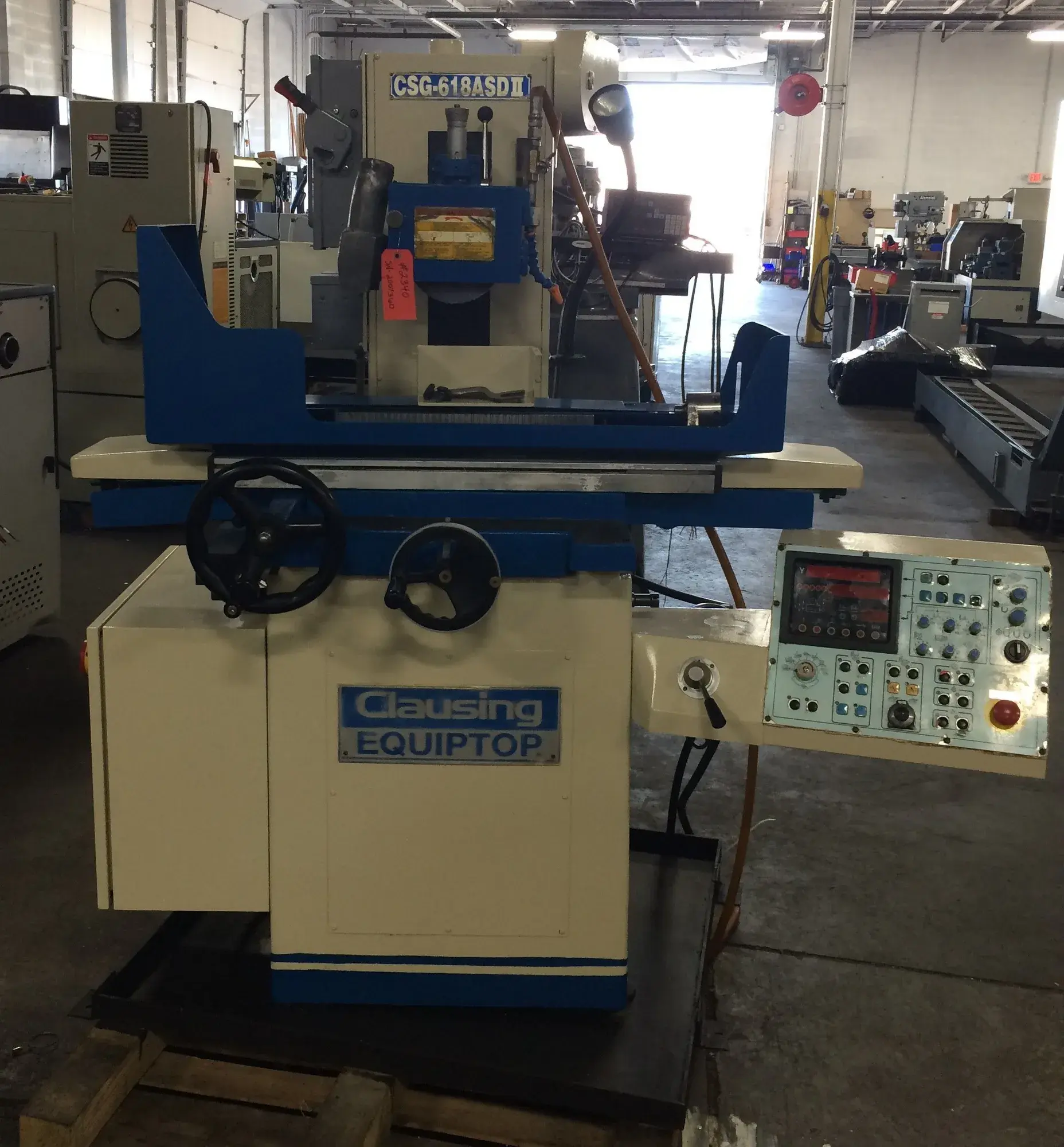

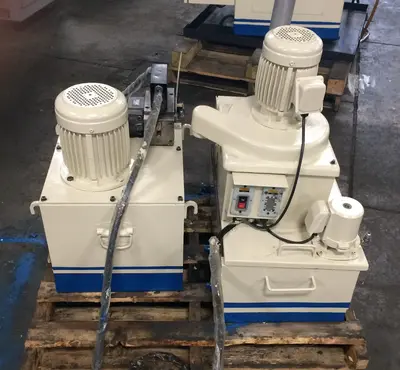

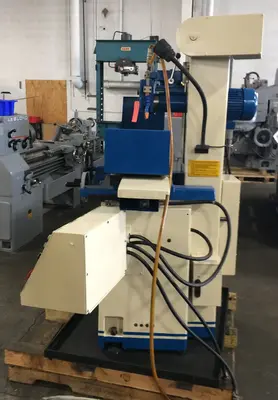

THE 2007 CLAUSING CSG-618ASD II IS A PRECISION 3-AXIS AUTOMATIC SURFACE GRINDER FEATURING A 6 INCH BY 18 INCH TABLE AND MAGNETIC CHUCK. THE UNIT PROVIDES A LONGITUDINAL HYDRAULIC TABLE TRAVEL BETWEEN 18.9 AND 20 INCHES WITH SPEEDS INFINITELY VARIABLE FROM 196 TO 984 INCHES PER MINUTE. CROSSFEED TRAVEL, AVAILABLE IN MANUAL OR AUTOMATIC MODES, RANGES FROM 7 TO 7.68 INCHES. THE MACHINE OFFERS A MAXIMUM DISTANCE OF 18 INCHES FROM THE TABLE TO THE SPINDLE CENTER. IT IS EQUIPPED WITH A 2 HP CARTRIDGE-TYPE SPINDLE MOTOR OPERATING AT 3450 RPM, SUPPORTED BY PRELOADED ANGULAR CONTACT BALL BEARINGS. THE SYSTEM UTILIZES AN 8-INCH DIAMETER GRINDING WHEEL WITH A WIDTH OF 0.5 TO 0.75 INCHES AND A 1.25-INCH BORE. FOR PRECISION MOVEMENT, THE VERTICAL HANDWHEEL PROVIDES GRADUATIONS OF 0.0001 INCHES WHILE THE CROSSFEED HANDWHEEL FEATURES 0.0005-INCH GRADUATIONS. CONSTRUCTION INCLUDES HAND-SCRAPED V AND FLAT WAYS WITH TURCITE-B COATING ON THE TABLE WAYS. ADDITIONAL TECHNICAL FEATURES INCLUDE A 1 HP HYDRAULIC MOTOR, A 40W VERTICAL RAPID FEED MOTOR, AN AUTOMATIC LUBRICATION SYSTEM, A TABLE-MOUNTED DIAMOND DRESSER, AND A SERVO MOTOR-DRIVEN CROSSFEED. THE MACHINE WEIGHS APPROXIMATELY 1,808 LBS AND HAS PHYSICAL DIMENSIONS OF 71.3 INCHES IN LENGTH, 44.6 INCHES IN WIDTH, AND 65.4 INCHES IN HEIGHT.
