Used

USED BRIDGEPORT ROMI EZ PATH S

Kentucky, United States
Asking Price
USD $12,950.00
28,904Listings|43Followers
Overview
Specs

Swing - 18"
Machining Length - 40"
# Axis - 2
Chuck Size - 10"
Bar Capacity - 2.08"
Power - 7.5 hp
Max RPM - 4,000 RPM
Tailstock - Yes
Live Tooling - No
Sub Spindle - No
Control - CNC
Dimensions - 100 x 49
Weight - 4900

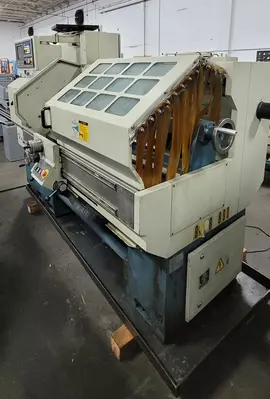

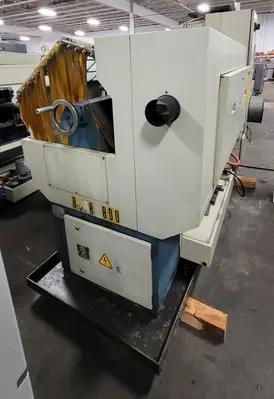

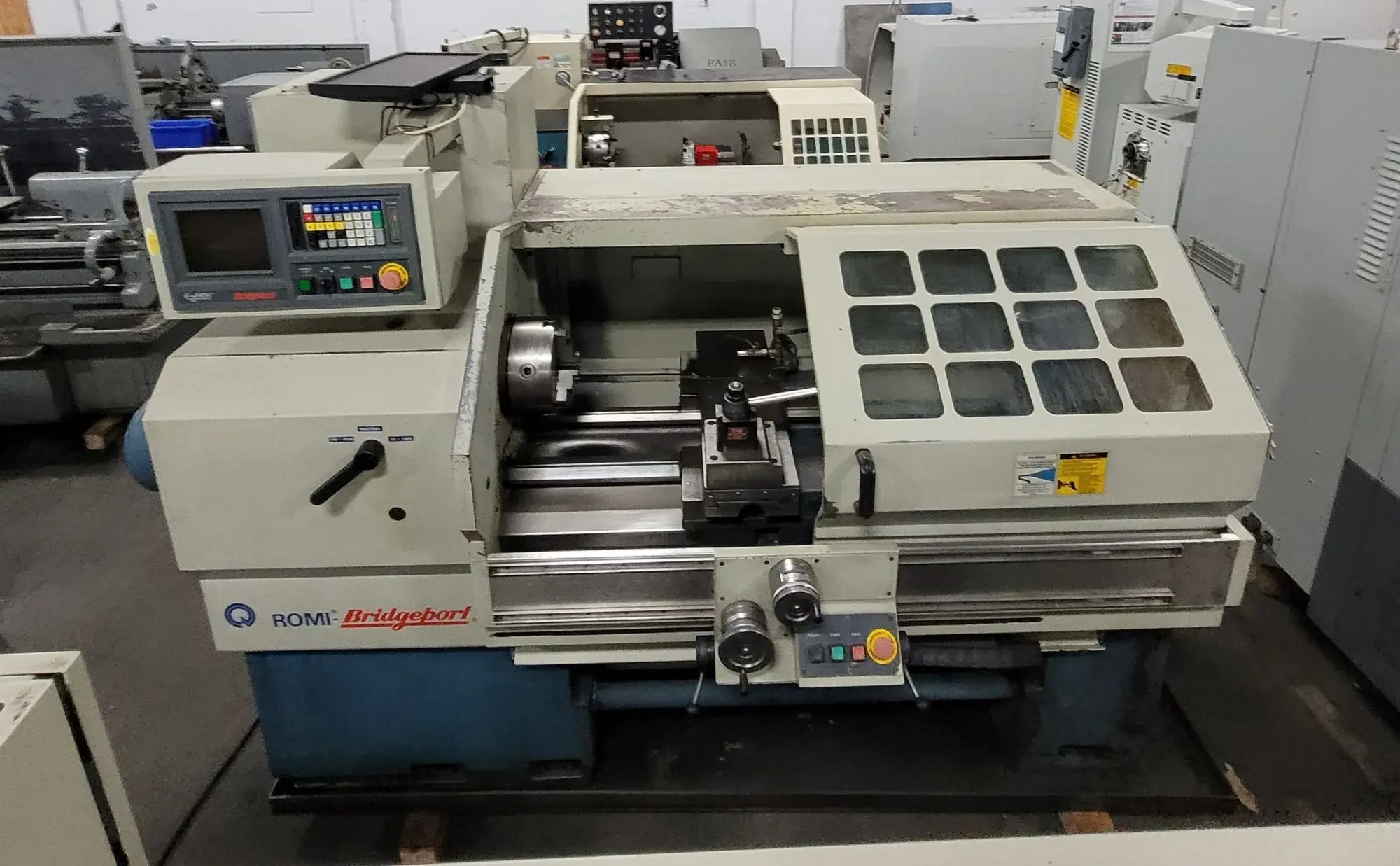

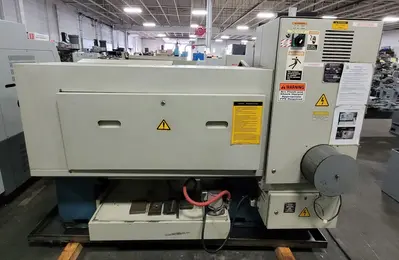

18” x 40” Bridgeport Romi EZ-Path S CNC Teach Lathe
Max Swing: 18″
Distance Between Centers: 40″
Standard Chuck Size: 10″
X Axis Travel: 8.6″
Z Axis Travel: 40″
Feedrates Rapid Traverse X Axis: 295 IPM
Rapid Traverse Z Axis: 394 IPM
Spindle Nose Size: A2-5
Spindle Bore: 2.08″
Spindle Speed Range: 25-4000 RPM
Spindle Drive Motor: 7.5 HP
Tailstock Quil Taper: 4.7″
Approximate Dimensions: 100″ x 49″
Machine Height: 77″ (Approx.)
Approx. Machine Weight: 4,900 Lbs.
Electrical Requirements: 240 V, 3 Ph
Equipped with:
Bridgeport EZ Path CNC Control
Dual Electronic Handwheel
Inch/Metric Threading

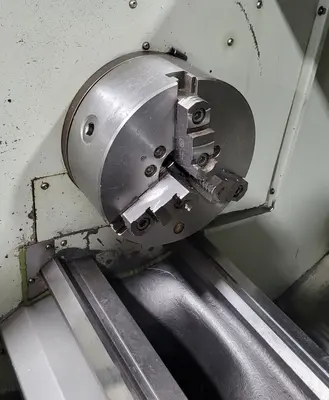

10″ 3-Jaw Chuck
Manual Tailstock
Geared Headstock

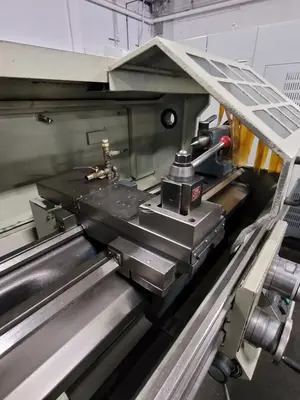

Dorian Quick Change Tool Post w/Tool Holders
Central Automatic Lube System
Coolant system with Chip Pan
18” x 40” Bridgeport Romi EZ-Path S CNC Teach Lathe
Max Swing: 18″
Distance Between Centers: 40″
Standard Chuck Size: 10″
X Axis Travel: 8.6″
Z Axis Travel: 40″
Feedrates Rapid Traverse X Axis: 295 IPM
Rapid Traverse Z Axis: 394 IPM
Spindle Nose Size: A2-5
Spindle Bore: 2.08″
Spindle Speed Range: 25-4000 RPM
Spindle Drive Motor: 7.5 HP
Tailstock Quil Taper: 4.7″
Approximate Dimensions: 100″ x 49″
Machine Height: 77″ (Approx.)
Approx. Machine Weight: 4,900 Lbs.
Electrical Requirements: 240 V, 3 Ph
Equipped with:
Bridgeport EZ Path CNC Control
Dual Electronic Handwheel
Inch/Metric Threading
10″ 3-Jaw Chuck
Manual Tailstock
Geared Headstock
Dorian Quick Change Tool Post w/Tool Holders
Central Automatic Lube System
Coolant system with Chip Pan
18” x 40” Bridgeport Romi EZ-Path S CNC Teach Lathe
Max Swing: 18″
Distance Between Centers: 40″
Standard Chuck Size: 10″
X Axis Travel: 8.6″
Z Axis Travel: 40″
Feedrates Rapid Traverse X Axis: 295 IPM
Rapid Traverse Z Axis: 394 IPM
Spindle Nose Size: A2-5
Spindle Bore: 2.08″
Spindle Speed Range: 25-4000 RPM
Spindle Drive Motor: 7.5 HP
Tailstock Quil Taper: 4.7″
Approximate Dimensions: 100″ x 49″
Machine Height: 77″ (Approx.)
Approx. Machine Weight: 4,900 Lbs.
Electrical Requirements: 240 V, 3 Ph
Equipped with:
Bridgeport EZ Path CNC Control
Dual Electronic Handwheel
Inch/Metric Threading
10″ 3-Jaw Chuck
Manual Tailstock
Geared Headstock
Dorian Quick Change Tool Post w/Tool Holders
Central Automatic Lube System
Coolant system with Chip Pan
