USED DAKE 5-075

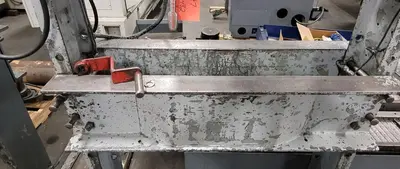

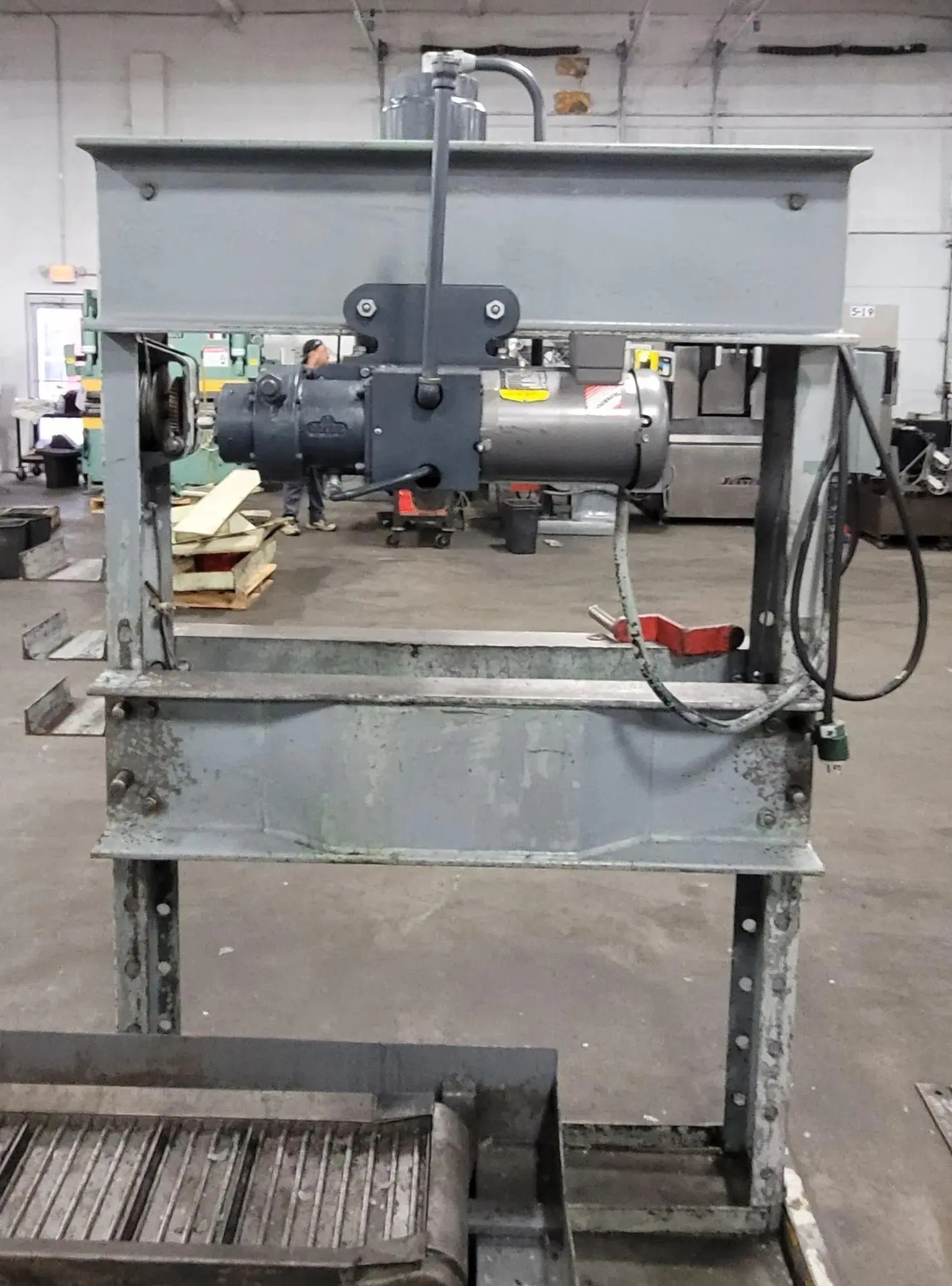

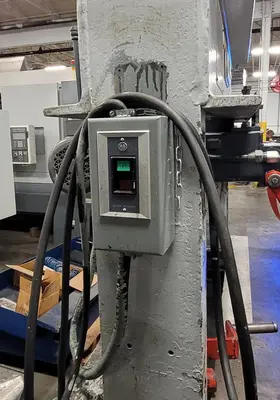

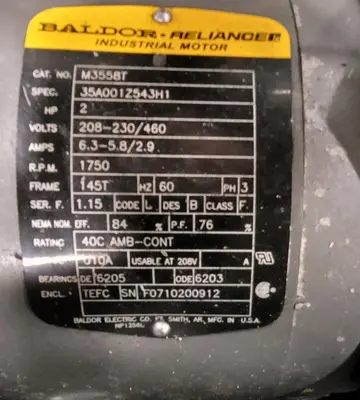

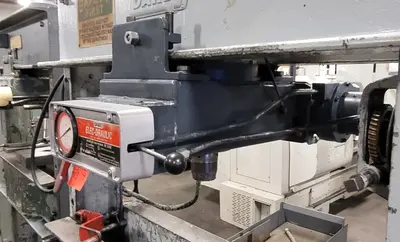

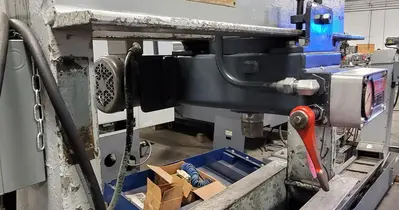

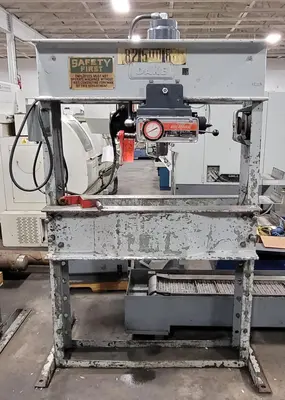

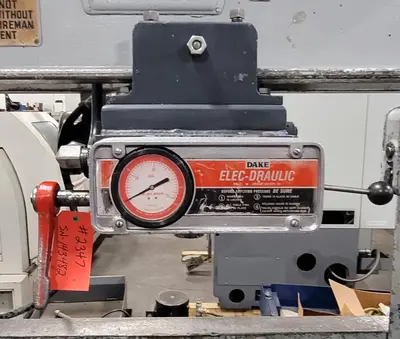

THE DAKE 5-075 ELEC-DRAULIC I H-FRAME PRESS IS A 75-TON ELECTRIC-HYDRAULIC PRESS DESIGNED FOR INDUSTRIAL, MAINTENANCE, AND PRODUCTION APPLICATIONS. IT FEATURES A 2 HP MOTOR COMPATIBLE WITH 220V/440V 3-PHASE POWER. THE UNIT PROVIDES A 44-INCH WIDTH BETWEEN UPRIGHTS AND 8 1/4 INCHES BETWEEN TABLE CHANNELS. THE RAM TRAVEL IS 10 INCHES, WHILE THE MOVABLE WORKHEAD OFFERS 24 INCHES OF HORIZONTAL TRAVEL FOR OFF-CENTER OPERATIONS. THE DISTANCE FROM THE RAM TO THE TABLE RANGES FROM A MINIMUM OF 6 INCHES TO A MAXIMUM OF 36 INCHES. PERFORMANCE SPECIFICATIONS INCLUDE AN APPROXIMATE ADVANCE RAM SPEED OF 28 IPM AND A PRESSING SPEED OF 5 IPM. THE PRESS INCLUDES AN ADJUSTABLE TABLE WITH A SELF-LOCKING HOIST AND FINGERTIP CONTROLS WITH A SAFETY OVERLOAD BYPASS. THE PHYSICAL DIMENSIONS ARE APPROXIMATELY 55 X 36 X 87 INCHES WITH A WEIGHT OF 1,245 LBS.
