USED 2023 LUCIFER HL82-M24

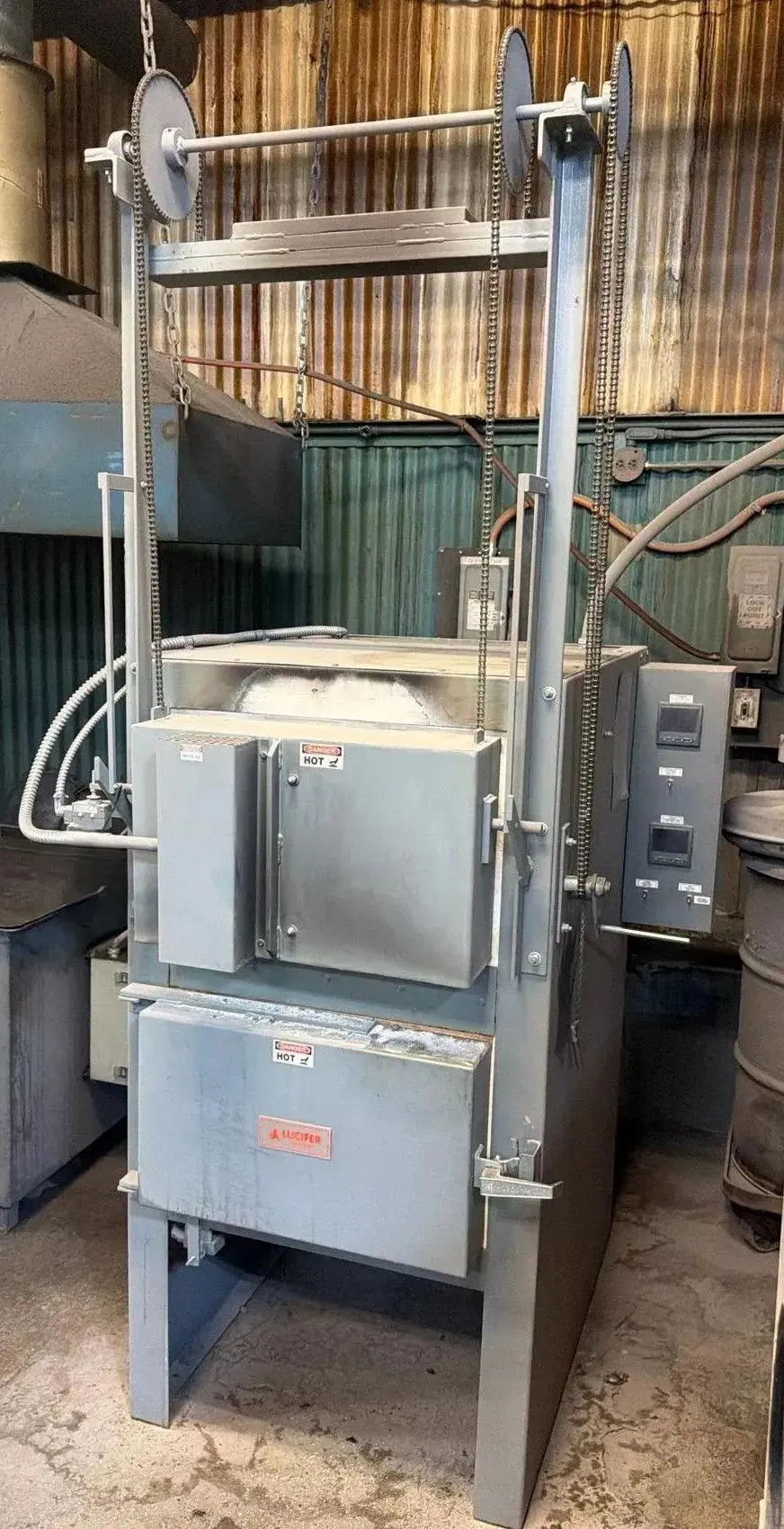

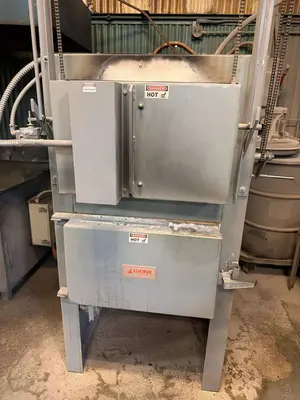

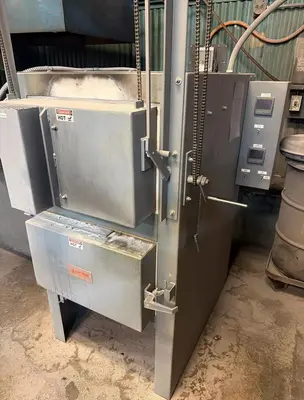

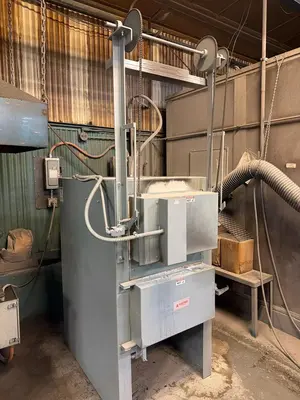

THE LUCIFER FURNACES HL82-M24 IS A DUAL-CHAMBER INDUSTRIAL HEAT TREAT AND DRAW FURNACE MANUFACTURED IN 2023. THIS UNIT FEATURES A HARDENING FURNACE OVER A TEMPERING OVEN CONFIGURATION. THE UPPER HARDENING CHAMBER REACHES A MAXIMUM TEMPERATURE OF 2300°F (1260°C), WHILE THE LOWER TEMPERING CHAMBER REACHES 1200°F (649°C). BOTH CHAMBERS HAVE INTERNAL DIMENSIONS OF 12 INCHES HIGH BY 12 INCHES WIDE BY 24 INCHES DEEP. THE FURNACE IS RATED FOR 26 KW AND OPERATES ON 230V, 3-PHASE, 60 HZ POWER WITH A 68-AMP DRAW. THE HEARTH IS DESIGNED TO SUPPORT WORKLOADS UP TO 50 LBS. PER SQUARE FOOT. CONSTRUCTION CONSISTS OF A WELDED SHEET METAL SINGLE SHELL WITH MULTI-LAYERED ENERGY-EFFICIENT FIREBRICK AND MINERAL BLOCK INSULATION. HEATING IS PROVIDED BY HEAVY-GAUGE COIL-WOUND LOW-WATT DENSITY ELEMENTS MOUNTED IN HOLDERS ON THE SIDES, BACK, AND DOORS. CONTROL SYSTEMS INCLUDE DIGITAL TEMPERATURE CONTROLLERS WITH TYPE K THERMOCOUPLES AND MAGNETIC CONTACTORS FOR EACH CHAMBER. SAFETY FEATURES INCLUDE A MICRO-SWITCH THAT INTERRUPTS POWER TO THE ELEMENTS AND FAN WHEN DOORS ARE OPENED. THE UPPER CHAMBER UTILIZES A MANUAL VERTICAL LIFT DOOR, WHILE THE LOWER CHAMBER FEATURES A HORIZONTAL SWING DOOR.
