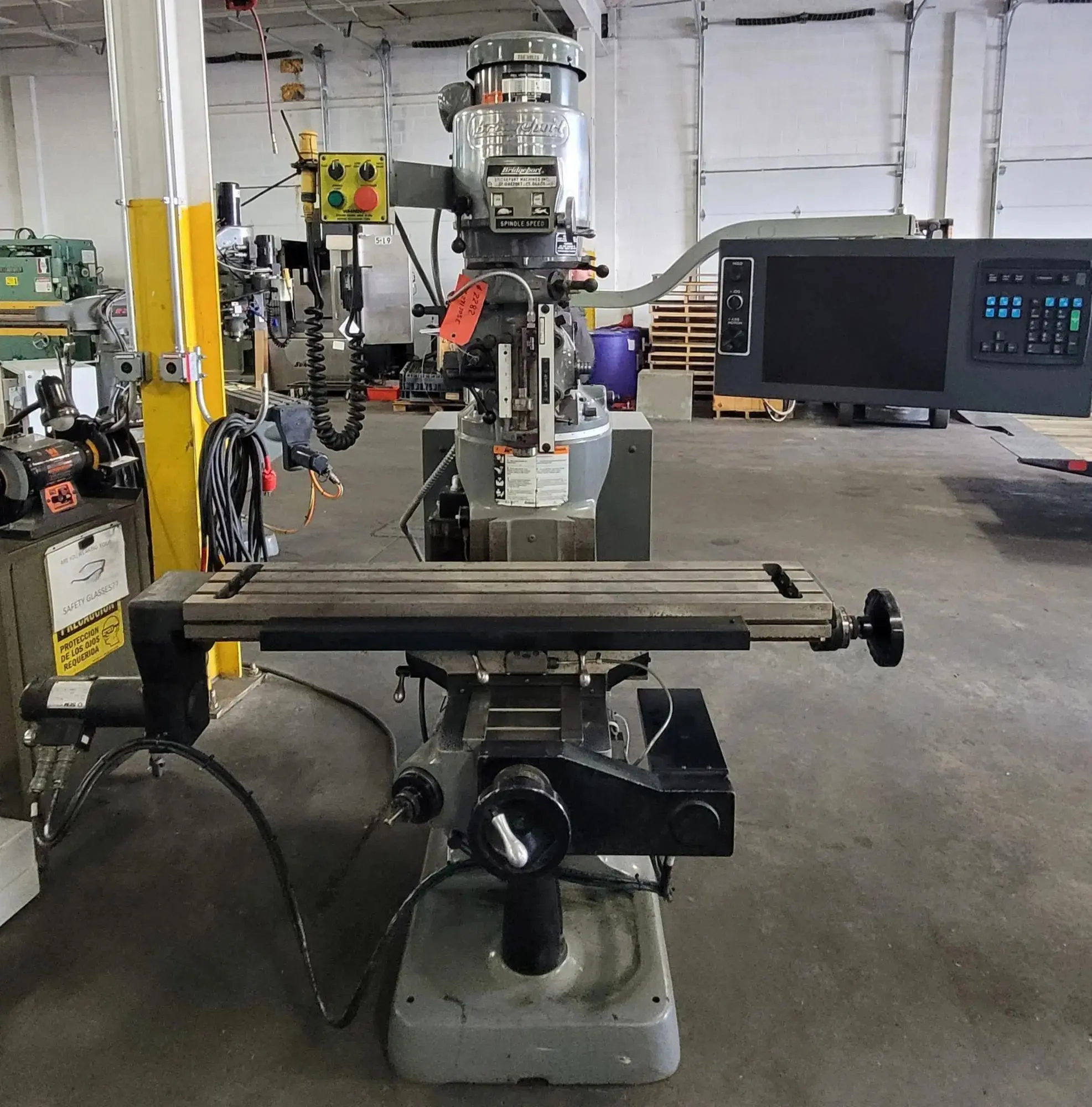

USED BRIDGEPORT EZ-TRAK-DX

THE BRIDGEPORT SERIES 1 EZ TRAK DX VERTICAL MILL FEATURES A 2 HP VARIABLE SPEED HEAD WITH AN R8 TAPER SPINDLE AND CHROME WAYS. TECHNICAL SPECIFICATIONS INCLUDE A 9 INCH BY 48 INCH TABLE, LONGITUDINAL TRAVEL OF 33.5 INCHES, CROSS TRAVEL OF 12 INCHES, AND VERTICAL KNEE TRAVEL OF 14 INCHES. THE QUILL PROVIDES 5 INCHES OF TRAVEL WITH FEED RATES OF 0.0015, 0.003, AND 0.006 INCHES. SPINDLE SPEEDS ARE INFINITELY VARIABLE FROM 60 TO 4200 RPM. THE MACHINE OFFERS A POSITIONING SPEED AND FEED RATE RANGE FOR THE X-Y AXIS OF 0.1 TO 100 INCHES PER MINUTE. PHYSICAL DIMENSIONS INCLUDE A THROAT DISTANCE OF 6-3/4 TO 18-3/4 INCHES AND A TABLE-TO-SPINDLE NOSE DISTANCE OF 2-1/2 TO 18-1/4 INCHES. THE 2 HP MOTOR OPERATES AT 1735 RPM AND IS CURRENTLY WIRED FOR 230V, 3-PHASE, 60-CYCLE POWER WITH A FULL LOAD AMPERAGE OF 6.2/3.1. ADDITIONAL COMPONENTS INCLUDE A TRICO MIST COOLANT SYSTEM, BUJIR AUTO LUBE SYSTEM, AND A RAM TRAVEL OF 12 INCHES. THE APPROXIMATE DIMENSIONS OF THE UNIT ARE 70 INCHES BY 77 INCHES BY 87 INCHES HIGH, WITH AN APPROXIMATE WEIGHT OF 3,000 LBS.
