USED 2012 CRESS C122012D/PM4

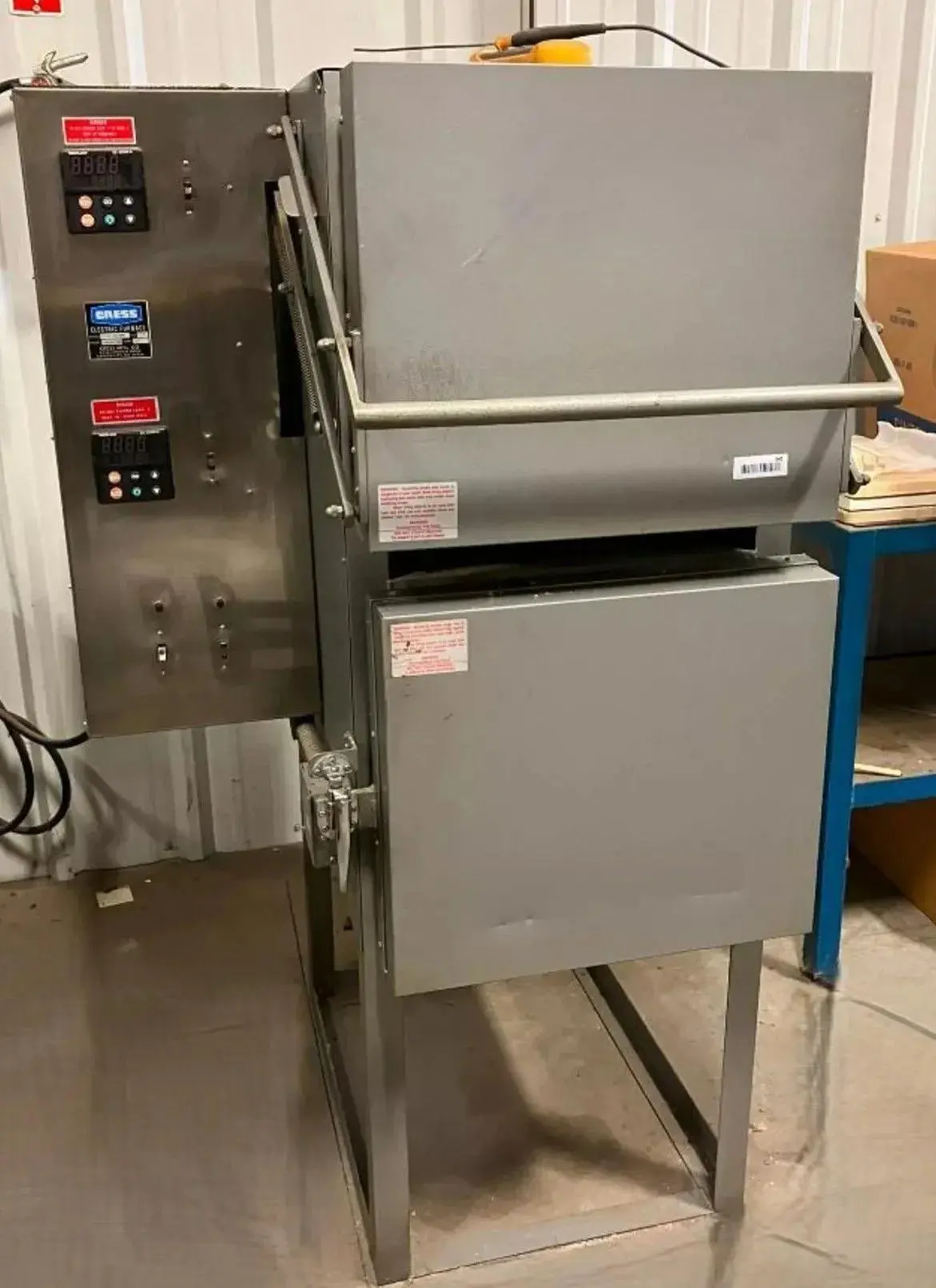

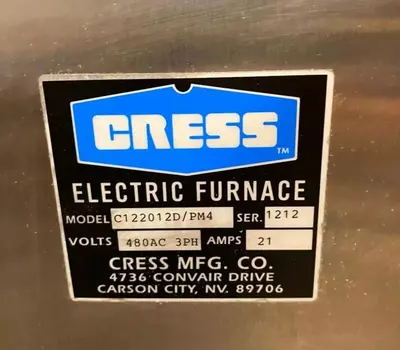

INTRODUCING THE 2012 CRESS C122012D/PM4 TEMPERING FURNACE, A DUAL CHAMBER POWERHOUSE DESIGNED FOR PRECISION HEATING APPLICATIONS. THE UPPER CHAMBER MEASURES 12 × 12 × 20 INCHES AND OPERATES AT TEMPERATURES UP TO 2,250°F, WHILE THE LOWER CHAMBER MEASURES 12 × 12 × 17 INCHES WITH A MAXIMUM TEMPERATURE OF 1,250°F. THE FURNACE IS POWERED BY AN 8.5 KW, 480 V THREE-PHASE ELECTRICAL SYSTEM AND FEATURES PM4 AUTOMATIC DIGITAL CONTROLLERS FOR PRECISE TEMPERATURE REGULATION. ADDITIONAL FEATURES INCLUDE ALLOY WIRE HEATING ELEMENTS, INSULATED CHAMBER CONSTRUCTION, COUNTERBALANCED DOORS, AND DUAL DOOR SAFETY SWITCHES THAT DISCONNECT POWER WHEN OPENED. DESIGNED FOR INDUSTRIAL HEAT TREATING, TEMPERING, LABORATORY TESTING, AND METALLURGICAL APPLICATIONS, THE FURNACE HAS OVERALL DIMENSIONS OF APPROXIMATELY 38 × 37 × 64 INCHES AND AN APPROXIMATE WEIGHT OF 950 LBS.
