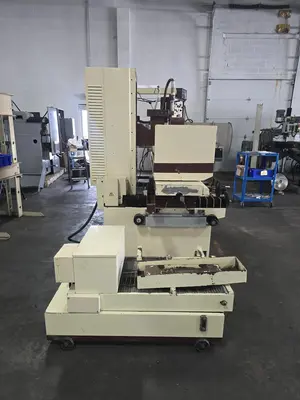

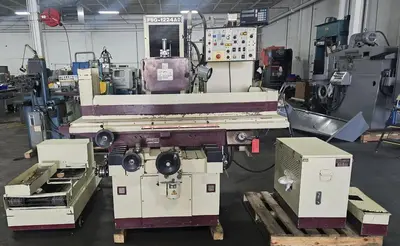

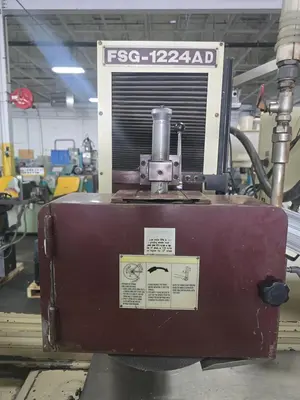

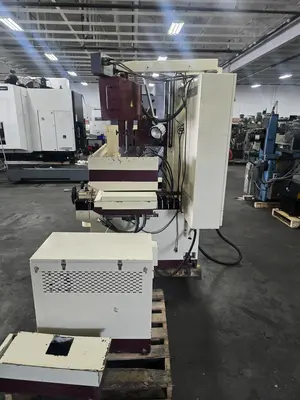

USED CHEVALIER FSG-1224AD

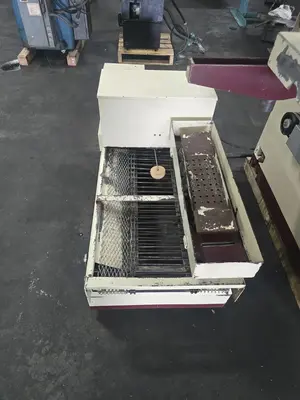

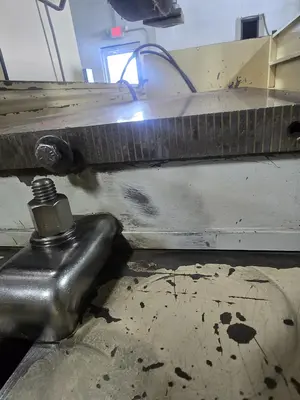

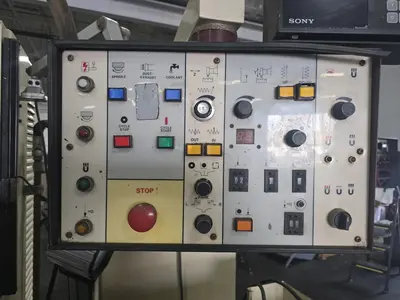

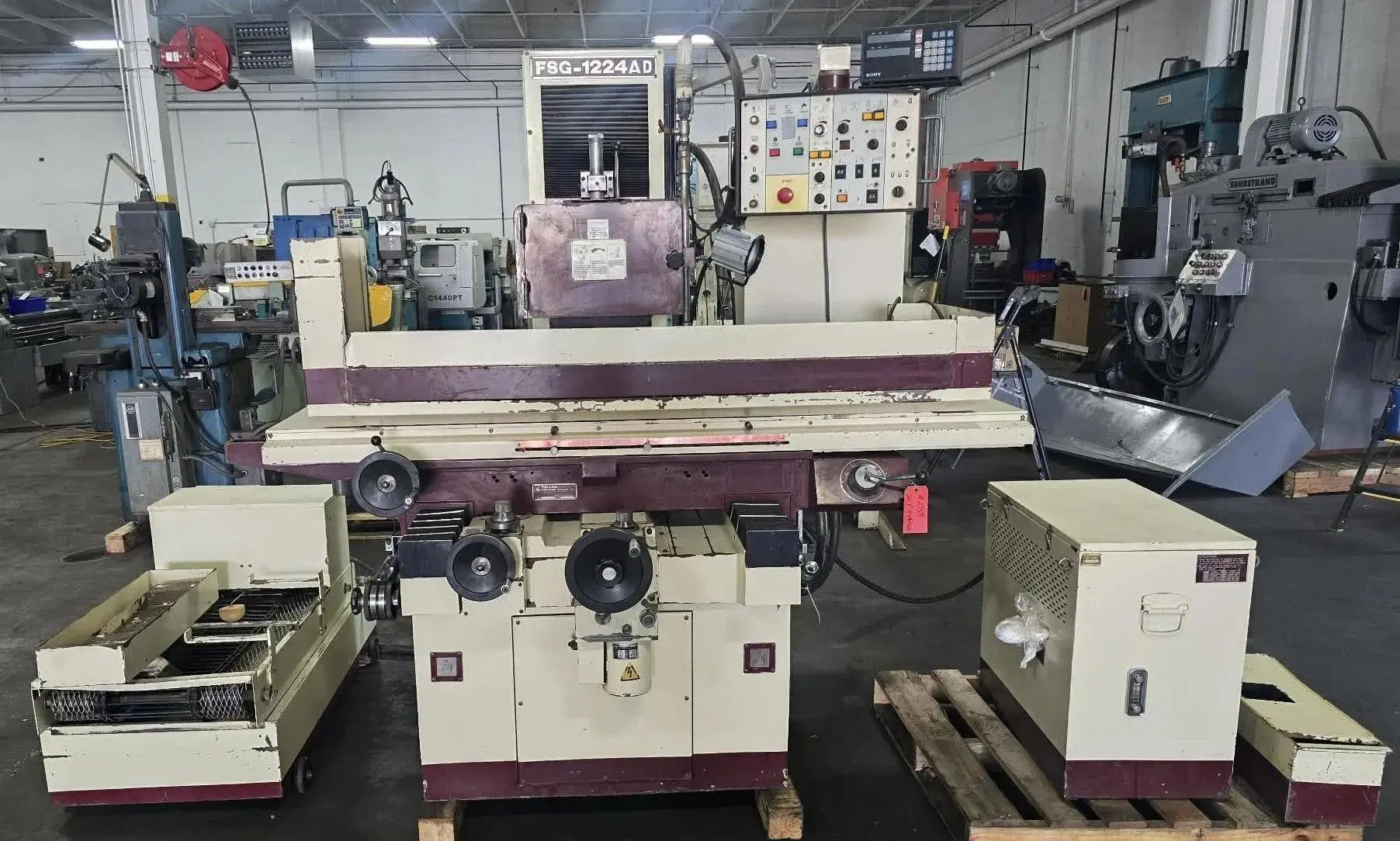

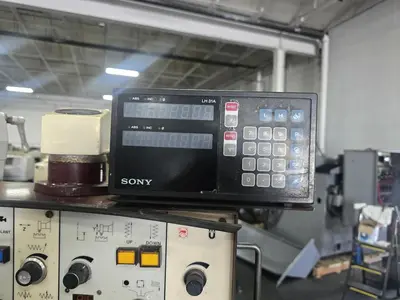

THE CHEVALIER FSG-1224AD IS A PRECISION SURFACE GRINDER FEATURING A 12 INCH BY 24 INCH GRINDING CAPACITY AND AN 11-3/4 INCH BY 25-3/8 INCH TABLE. THE MACHINE IS EQUIPPED WITH A PROGRAMMABLE MICROPROCESSOR FOR AUTOMATIC INCREMENTAL DOWNFEED, ADJUSTABLE FROM 0.00005 TO 0.002 INCHES IN SURFACE OR PLUNGE MODES. IT FEATURES A FULLY AUTOMATIC GRINDING CYCLE INCLUDING RAPID ADVANCE, UP TO 7 SPARKOUT PASSES, AND WHEELHEAD RETRACTION. THE LONGITUDINAL TABLE TRAVEL IS HYDRAULICALLY ACTUATED UP TO 25-5/8 INCHES, WHILE THE CROSSFEED TRAVEL PROVIDES 12 INCHES OF AUTOMATIC MOVEMENT. THE SPINDLE IS POWERED BY A 5 HP MOTOR, UTILIZING A 14 INCH DIAMETER BY 2 INCH WIDE GRINDING WHEEL. VERTICAL AND CROSS FEEDS OFFER FINE MICRO-FEED GRADUATIONS TO 0.00005 INCHES. THE UNIT INCLUDES AN 11-3/4 INCH BY 23-5/8 INCH ELECTROMAGNETIC CHUCK WITH VARIABLE HOLDING POWER AND AUTOMATIC DEMAGNETIZATION. ADDITIONAL TECHNICAL FEATURES INCLUDE A SONY TWO-AXIS DIGITAL READOUT, AN EXTERNAL COOLANT SYSTEM WITH PAPER FILTER, AND AN EXTERNAL HYDRAULIC PUMP AND TANK. THE MACHINE OPERATES ON A 3/60/230-460 VOLT DRIVE SYSTEM AND HAS APPROXIMATE PHYSICAL DIMENSIONS OF 98 INCHES BY 68 INCHES BY 88 INCHES, WEIGHING 4,850 LBS.
