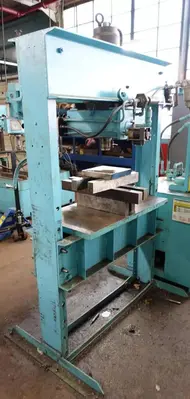

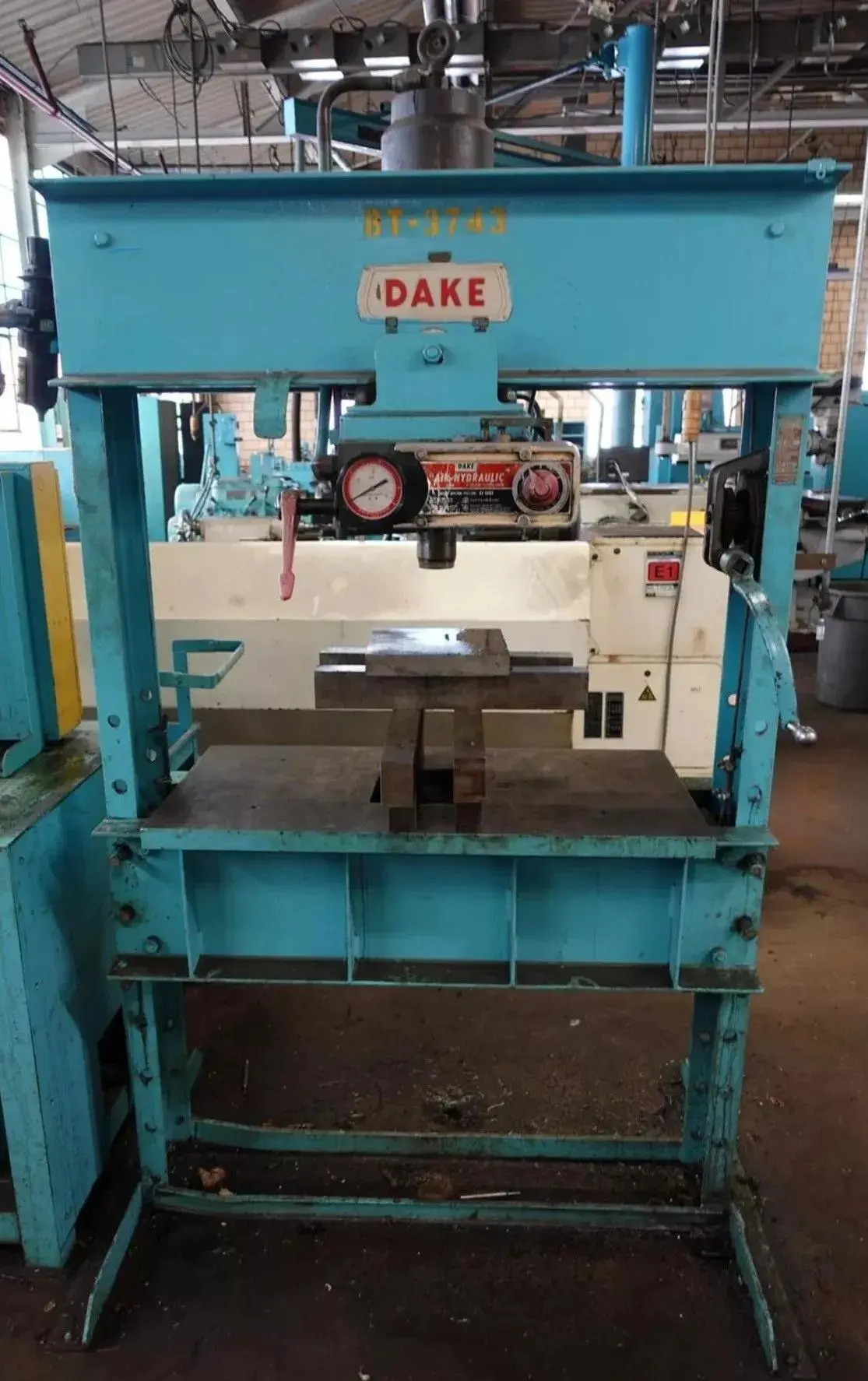

USED DAKE 6-275

THE DAKE 6-275 IS A 75-TON CAPACITY AIR HYDRAULIC H-FRAME PRESS DESIGNED FOR HEAVY-DUTY WORKSHOP USE. IT FEATURES A 10-INCH RAM STROKE, 44-INCH WIDTH BETWEEN UPRIGHTS, AND A 24-5/8 INCH HORIZONTAL WORKHEAD TRAVEL. THE UNIT HAS AN 8-1/4 INCH WIDTH BETWEEN TABLE CHANNELS AND PROVIDES A MAXIMUM DAYLIGHT OF 36 INCHES FROM RAM TO TABLE. OPERATING AT A REQUIRED AIR PRESSURE OF 90-125 PSI, THE PRESS OFFERS AN ADVANCE SPEED OF 45 IPM AND A PRESSING SPEED OF 2 IPM. PHYSICAL DIMENSIONS INCLUDE A 55-INCH BY 36-INCH BASE WITH AN OVERALL HEIGHT OF 86 INCHES, AND A WEIGHT RANGE BETWEEN 1,500 AND 1,550 LBS.
