USED OGDEN POWER

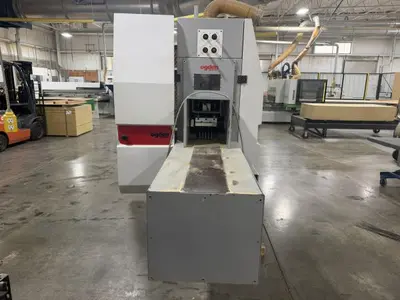

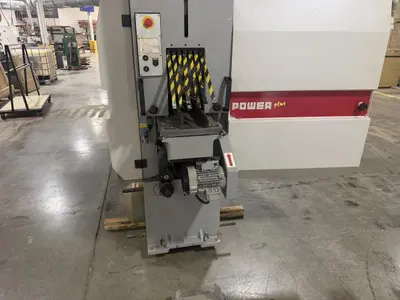

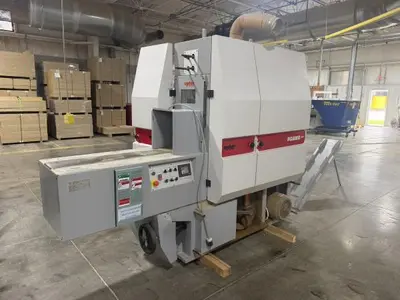

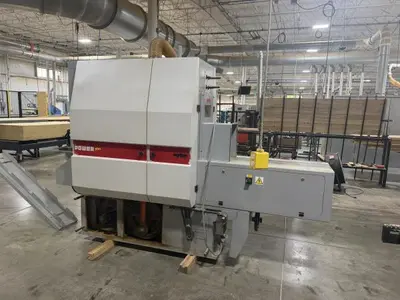

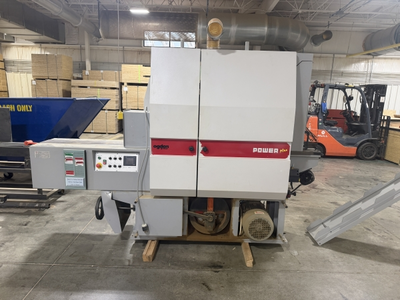

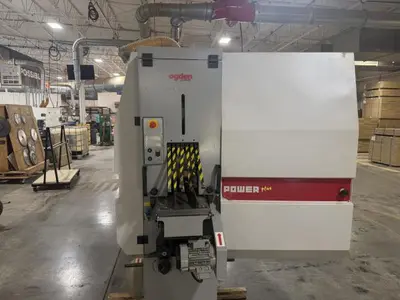

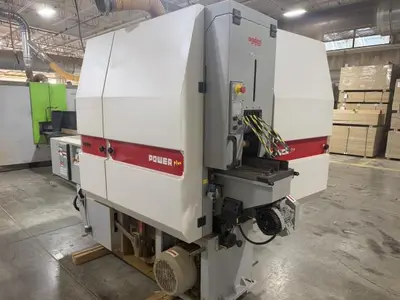

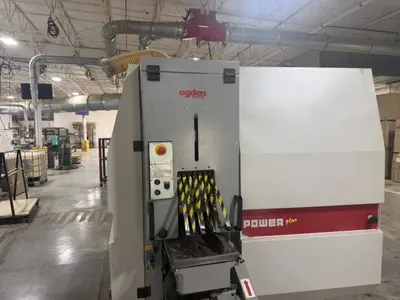

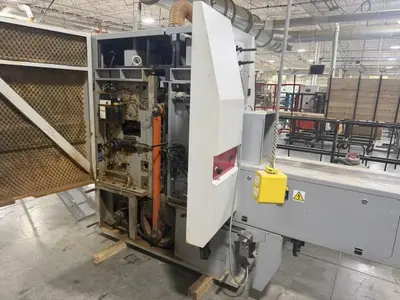

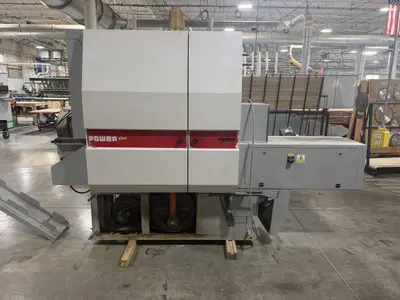

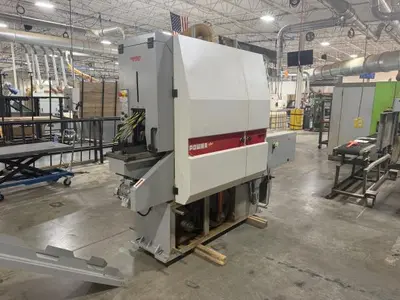

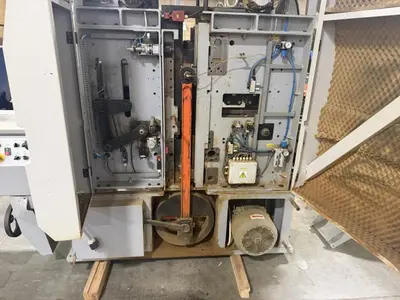

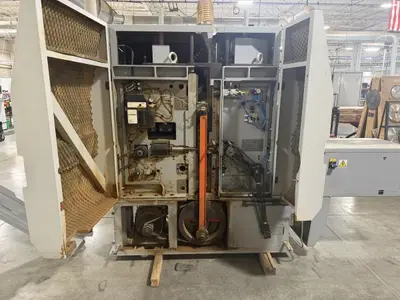

Ogden Power Plus 350 Thin Cutting Frame Saw and Planer (Model TR88)

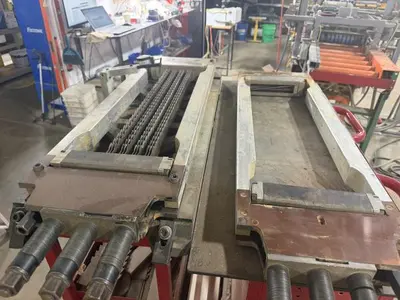

Includes option for two-sided planer on outfeed.
The Power Plus Thin-Cutting Frame Saw was developed for cutting solid wood blocks into glue-able slats with a minimum of saw kerf waste.
Power Plus uses lineal bearing guides which eliminates all play between the carriage and the base of the frame. This play free guide system results in less vibration of the machine and also accurate and smooth cut on the product.
Machine is equipped with:

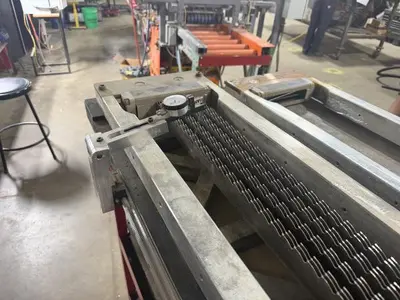

1 Setup frame change device with dial indicator
3 Saw frames according (2 short and 1 long)

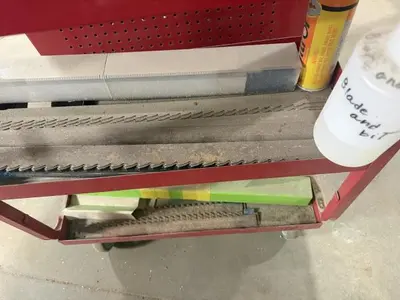

Multiple Sets of Saw Blades

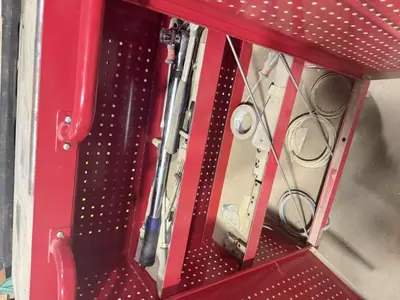

1 Precision torque wrench (200 Nm)
1 Chip breaker
1 Air blast system
Automatic raise lower of the top feed rollers via electrical push button

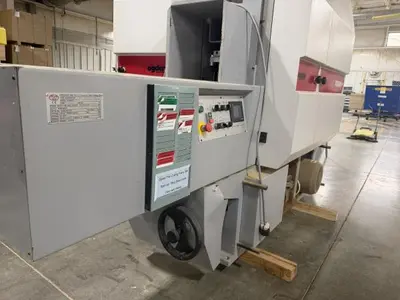

Digital feed speed indicator

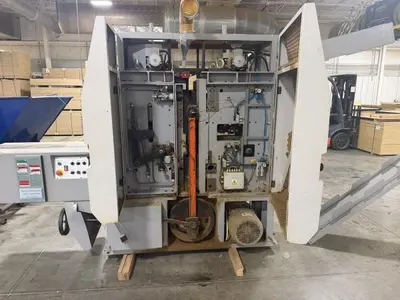

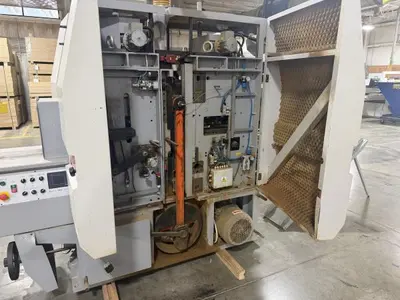

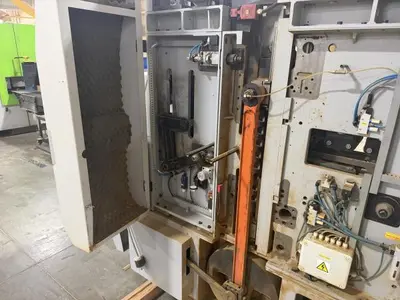

Automatic opening of the machine for frame removal

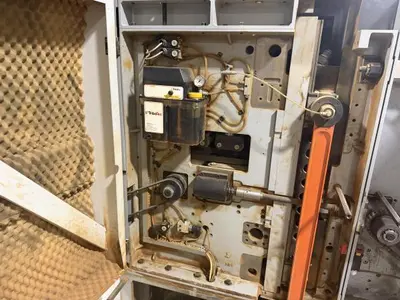

Automatic central lubricating system
Driven feed rollers top and bottom
TECHNICAL DATA
Voltage 480 V 60 HZ
Main Motor 15 kW
Feeding Speed 0.3-1.5 m/min
Strokes of the Saw Frame 160 mm
Strokes per minute 400 strokes/min
Cutting Height Adjustable 100 - 350 mm (4" - 13.5")
Cutting Width with side guide 1 x 150 mm
Min. Block Length 300 mm
Minimum Slat Thickness 2.5 mm (depending on cutting height)
Cutting Accuracy approx. + / - 0.2 mm
Saw Kerf 1.40 mm
Saw Blade Life-Stellite Saws approx. 10 - 40 hrs.
Dust Hood Diameter 1 x 120 mm top 1 x 160 mm bottom
Machine Dimensions L 2600 mm x W 800 mm x H 1700 mm
Machine Weight 3,700 kg or 8,000 lbs.
480v, 3ph
