Used

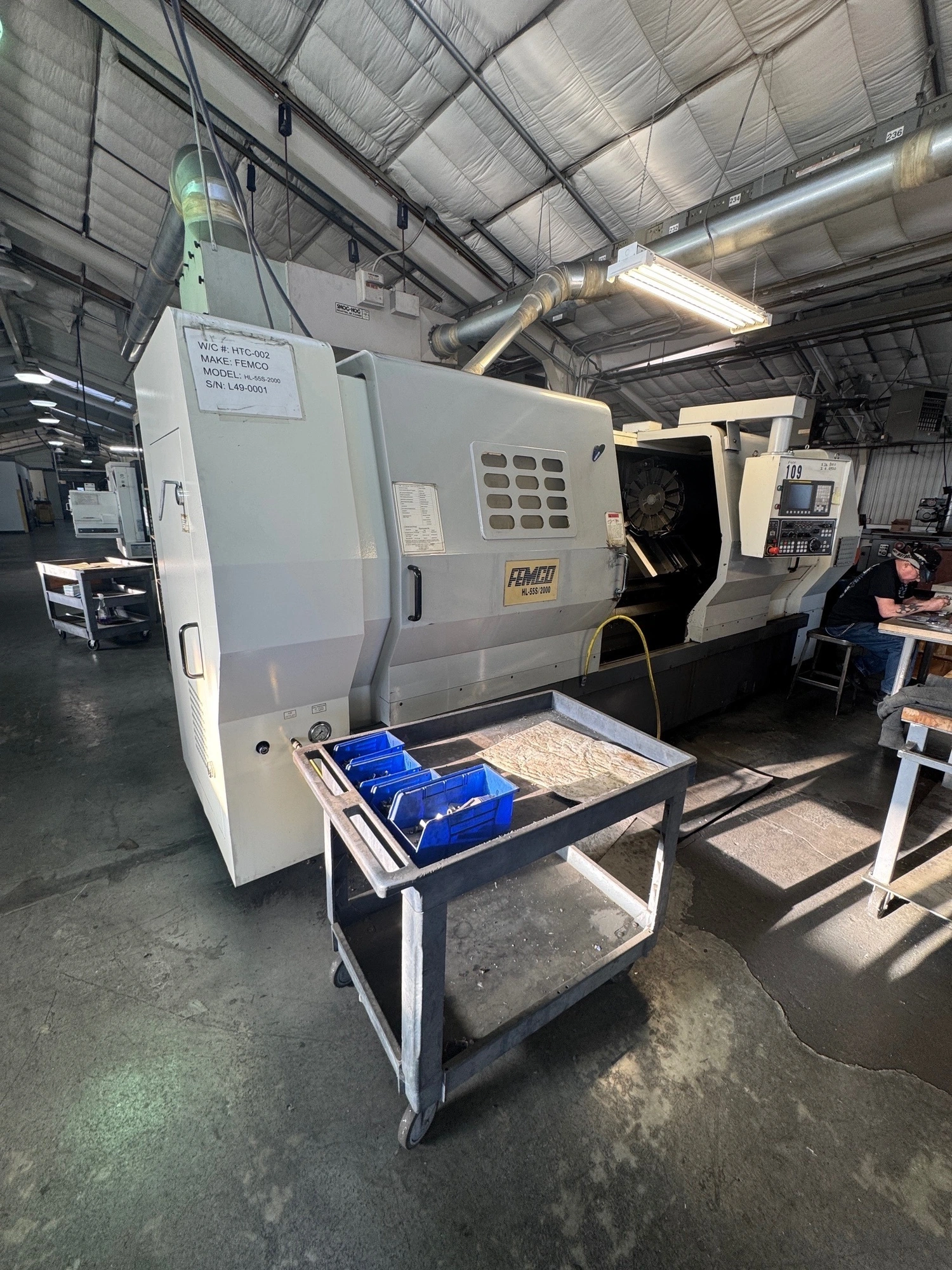

USED 2009 FEMCO HL-55/2000
California, United States
Overview
Specs
Swing Over Bed
27.95"
709.93 mm
Machining Length
75.5"
1,917.7 mm
Turning Diameter, Shaft Diameter
24.4"
619.76 mm
Chuck Size 1
15"
381 mm
Spindle Nose 1
A2-11
A2-11
Spindle Bore Diameter 1
5.2"
132.08 mm
Spindle Bar Capacity 1
4.53"
115.06 mm
Spindle Speeds 1
2,500 RPM
2,500 RPM
Spindle Horsepower 1
26 kW
34.9 hp
Rapid Traverse Rate - X1
472 in/min.
199.8 mm/sec.
Rapid Traverse Rate - Z1
591 in/min.
250.2 mm/sec.
Turret Configuration 1
12
12
Tailstock Quill Diameter
3.54"
89.916 mm
Tailstock Taper
MT-5
MT-5
Tailstock Quill Travel
4.72"
119.89 mm
Programmable Tailstock
YES
YES
Bar Capacity
4.53"
115.06 mm
Tailstock
'Yes'
'Yes'
Live Tooling
'No'
'No'
Sub Spindle
'No'
'No'
Equipped With
FANUC OITD CNC CONTROL
15" HYDRAULIC CHUCK
HYDRAULIC TAILSTOCK WITH POWER QUILL
CHIP CONVEYOR
