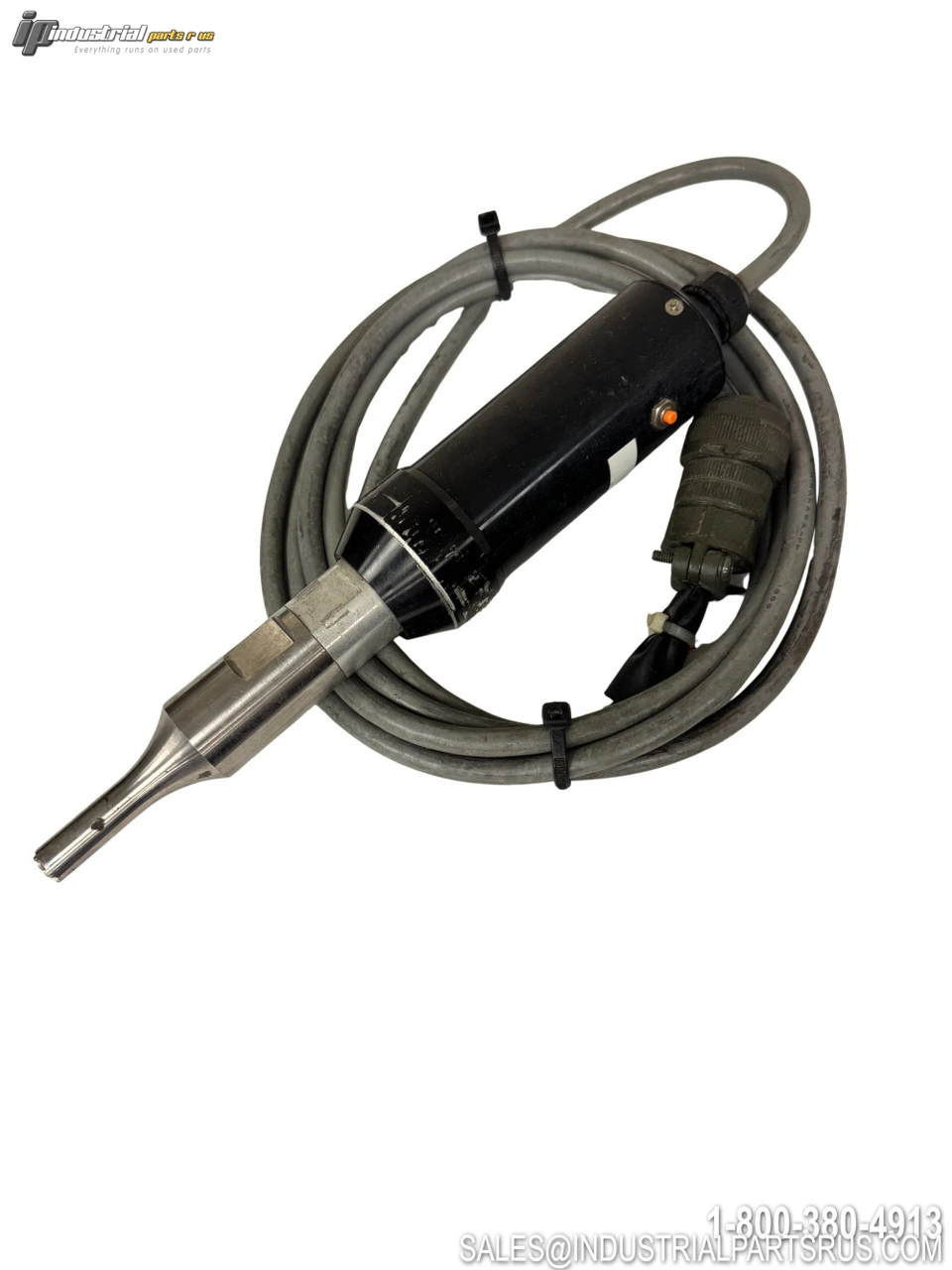

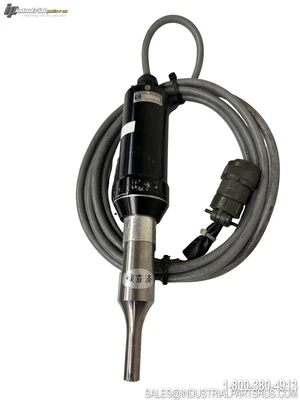

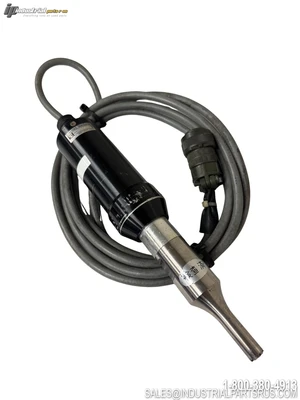

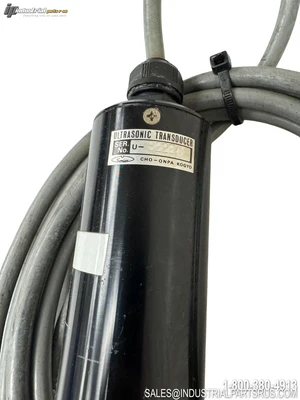

USED SONICS U-B2224

The Sonics & Materials U-B2224 is an ultrasonic welding booster designed as a stack component for ultrasonic plastics assembly systems. The booster is interposed between the converter (transducer) and the horn (sonotrode) within the ultrasonic stack, serving to transform and transmit vibratory amplitude from the converter to the welding horn. Sonics & Materials, Inc. is a leading manufacturer of ultrasonic plastics and metal welding systems, offering stack components including boosters, converters, and horns matched to their ultrasonic power supplies across frequencies of 20, 30, 35, and 40 kHz.
Specification
Value
Brand
Sonics
Model / Part Number
U-B2224
Manufacturer
Sonics & Materials, Inc.
Product Type
Ultrasonic Booster
Frequency
20 kHz (inferred from part number)
Gain Ratio
2:1 (inferred from part number)
Component Role
Stack component between converter and horn
Compatible Systems
Sonics E, F, and G Series ultrasonic welding presses (verify)
Material
Titanium or Aluminum (verify against label)
Mount Type
See label / verify
Thread Size (Input/Output)
See label / verify
Application
Ultrasonic plastics assembly, welding, staking, inserting
Series
See label
We warranty all items for 30 days from date of purchase.
