NEW MARTIN 40BB25H 5/8

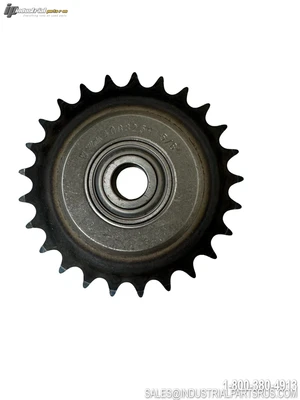

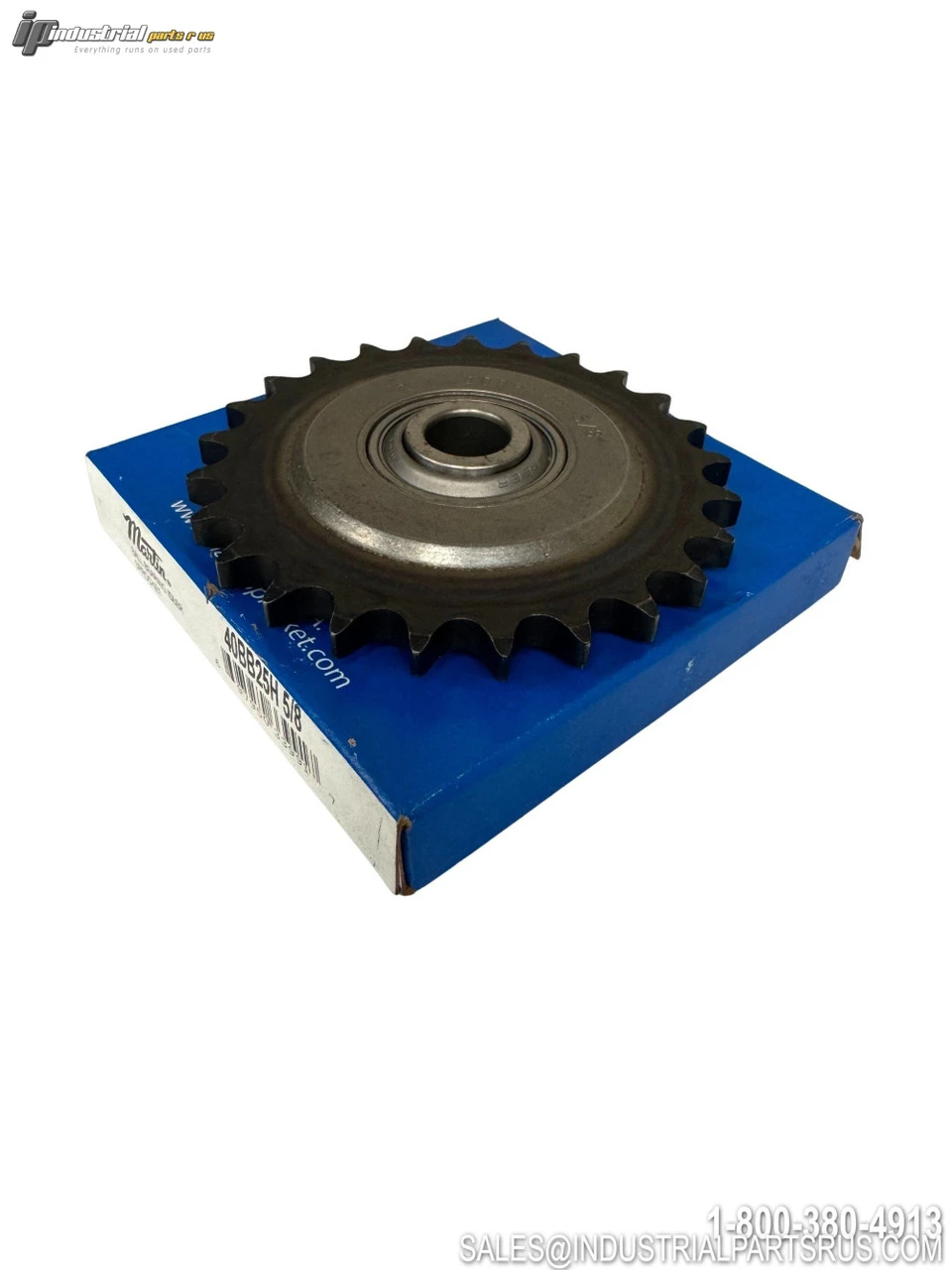

The Martin Sprocket & Gear 40BB25H 5/8 is a ball bearing idler chain sprocket designed for use with ANSI #40 roller chain (1/2" pitch). It features hardened teeth for extended wear life and is mounted on a precision ball bearing for smooth, free-running idler operation. The sprocket is manufactured from steel and is suitable for tensioning or guiding roller chain in power transmission and conveyor applications.
Specification
Value
Brand
Martin Sprocket & Gear
Model / Part Number
40BB25H 5/8
Product Type
Ball Bearing Idler Sprocket
Chain Size / Number
#40
Chain Type
Roller Chain (ANSI)
Chain Pitch
1/2 in (0.500 in / 12.7 mm)
Number of Teeth
25
Number of Rows (Strands)
1 (Single Strand)
Bore Diameter
5/8 in (0.625 in / 15.875 mm)
Outside Diameter (OD)
4.26 in (108.204 mm)
Teeth Width
0.284 in
Length Through Bore
0.72 in (18.288 mm)
Bearing Type
Ball Bearing
Hardened Teeth
Yes
Material
Steel
Inch / Metric
Inch
Weight
0.9 lbs (0.681 kg)
UNSPSC Code
31171901
