Avenger

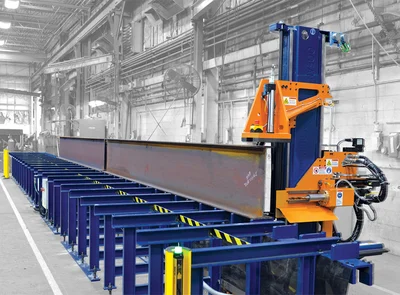

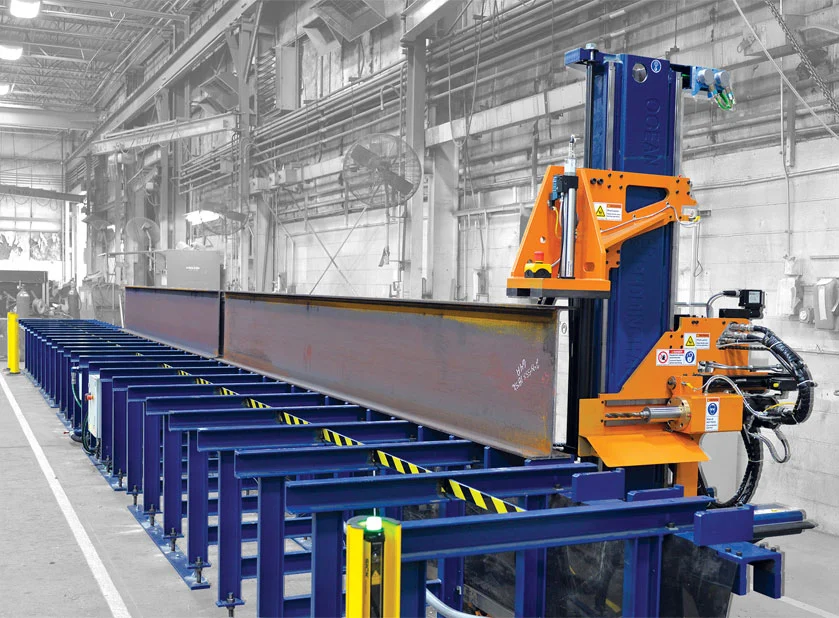

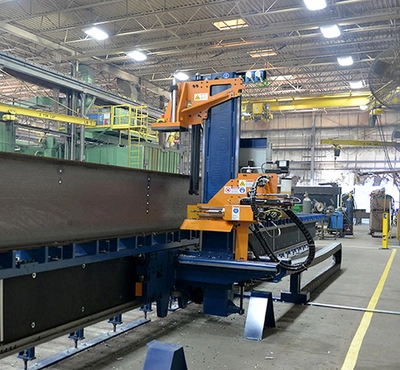

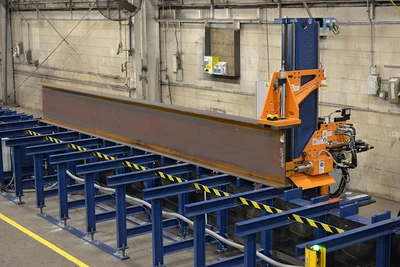

The Ocean Avenger CNC Single Spindle Beam Drill Line has been an immediate hit with the small to medium fabricator fabricating both structural steel and miscellaneous metals. Since it was introduced in 2003 more than 600 Ocean Avengers have been installed around the world, and this amazing machine has changed the lives of many a steel fabricator.
Capability & Design
The Ocean Avenger FORTY is the 3rd iteration of this popular machine and it is now even faster and simpler to use.
The Avenger FORTY will handle profiles up to 40″ tall (1m), while the Avenger THIRTY will handle profiles up to 30″ tall (760mm). The Avenger THIRTY is normally sold in countries where the maximum profiles size is under 760mm, and this machine packs into a standard shipping container. The Avenger FORTY needs a special Multi-Talent shipping container.
Both the Avenger FORTY and the Avenger THIRTY will handle the heaviest jumbo columns up to 730 lbs/ft, essentially the entire catalog of steel profiles found anywhere in the world.
Through the tool coolant system keeps drill bits sharper longer. Standard twist drills are capable of providing well in excess of 30,000 holes per drill with resharpening, and this significantly reduces consumable costs.

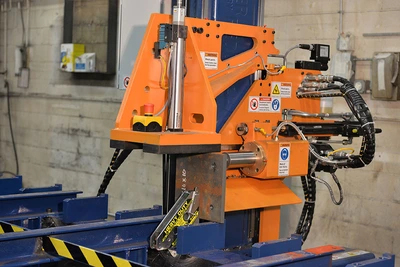

The Drill spindle has capable of drilling holes up to 1-9/16” diameter and through any thickness up to 10″.
The Ocean Avenger CNC beam drill line is capable of handling pre-coped parts allowing the machine to be placed anywhere in the production process.
The Ocean Avenger utilizes an exceptionally accurate and durable laser system to determine the Zero X-reference.
The Y direction is measured by a CNC encoder and the Avenger includes web sensor allowing the machine to detect the REAL web center line, allowing for beams that are hot rolled out of spec.
The Avenger completely eliminates manual layout, and manual drilling / punching.
It also lays out all the marks for your welded attachments, completely eliminating the tape measure and its associated errors.
Provides exceptional accuracy of hole placement, eliminating costly field modifications.
Very space efficient – uses no more space than your current trestles.
Simple and easy to operate.
No computer experience required.
Fully automatic measuring, layout and drilling cycle.
Fastest return on investment of all Ocean products.
Immediate payback on a low investment through attractive financing options.
The Ocean Avenger is the fastest selling CNC Beam Drill Line in the world and has been installed in more than 70 countries around the world.
These installations range from some of the coldest climates so some of the hottest and humid environments in the world.
The Ocean Avenger Beam Line is made in South Carolina, USA by Peddinghaus, the world’s leading builder of CNC steel fabricating machinery.
Peddinghaus is the most well-known and respected brand in structural steel machinery, over 100 years old.
The Ocean Avenger Beam Drill Line seamlessly integrates with all major steel detailing programs.
For fabricators using any of the 3-D model detailing programs such as Tekla Structures, SDS/2, StruMis, ProSteel 3-d etc, the operator merely imports the part directly from the model.
For fabricators doing more component type work where parts might have been detailed in Inventor or Solid Works, we offer post processors that allow easy importing of the part programs.
For fabricators and miscellaneous metal shops still using AutoCAD, we offer a post processor that allows easy importing of drawings detailed in AutoCAD. However very specific drawing procedures must be adhered to for this to work satisfactorily.
