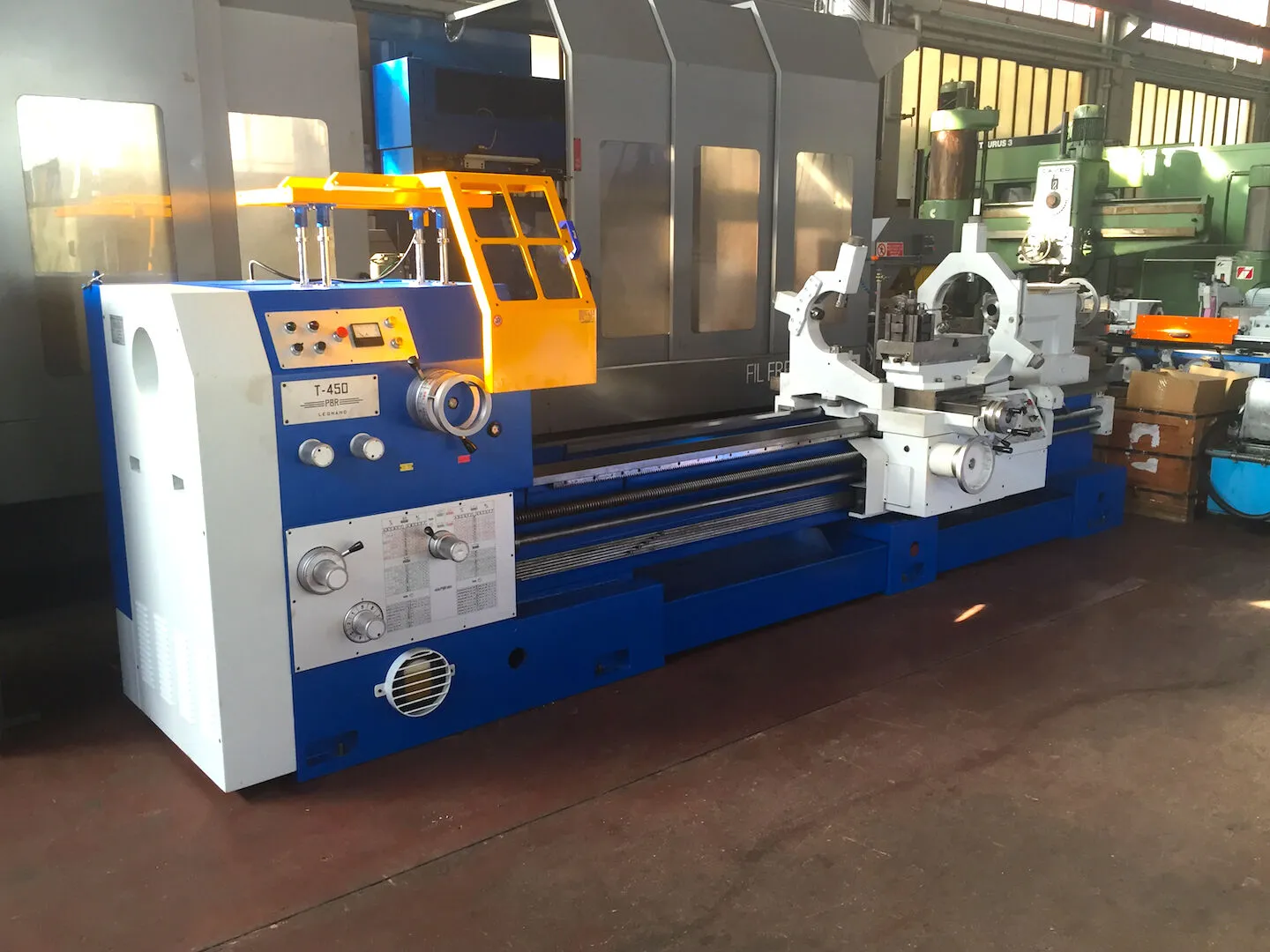

USED PBR T450 450X3000

Centres distance: 3000 mm118,11 in
Centres height: 450 mm17,72 in
Longitudinal (Z): 3000 mm118,11 in
Cross (X): 560 mm22,05 in
Max turning lenght: 3000 mm118,11 in
Max diameter on the bed: 920 mm36,22 in
Max swing on saddle: 620 mm24,41 in
Max swing in the gap: 1200 mm47,24 in
Bar passage: 130 mm5,12 in
Bed width: 570 mm22,44 in
Guide-ways number: 2 mm0,08 in
Max weight between centres: 3500 Kg
Max weight on steadies: 4500 Kg
Closed steadies: 1
Platform: n.1 ø500mm, n.1 ø600mm, n.1 ø700mm, n.1 ø800mm
Availability: pronta
Available under power: previo appuntamento
