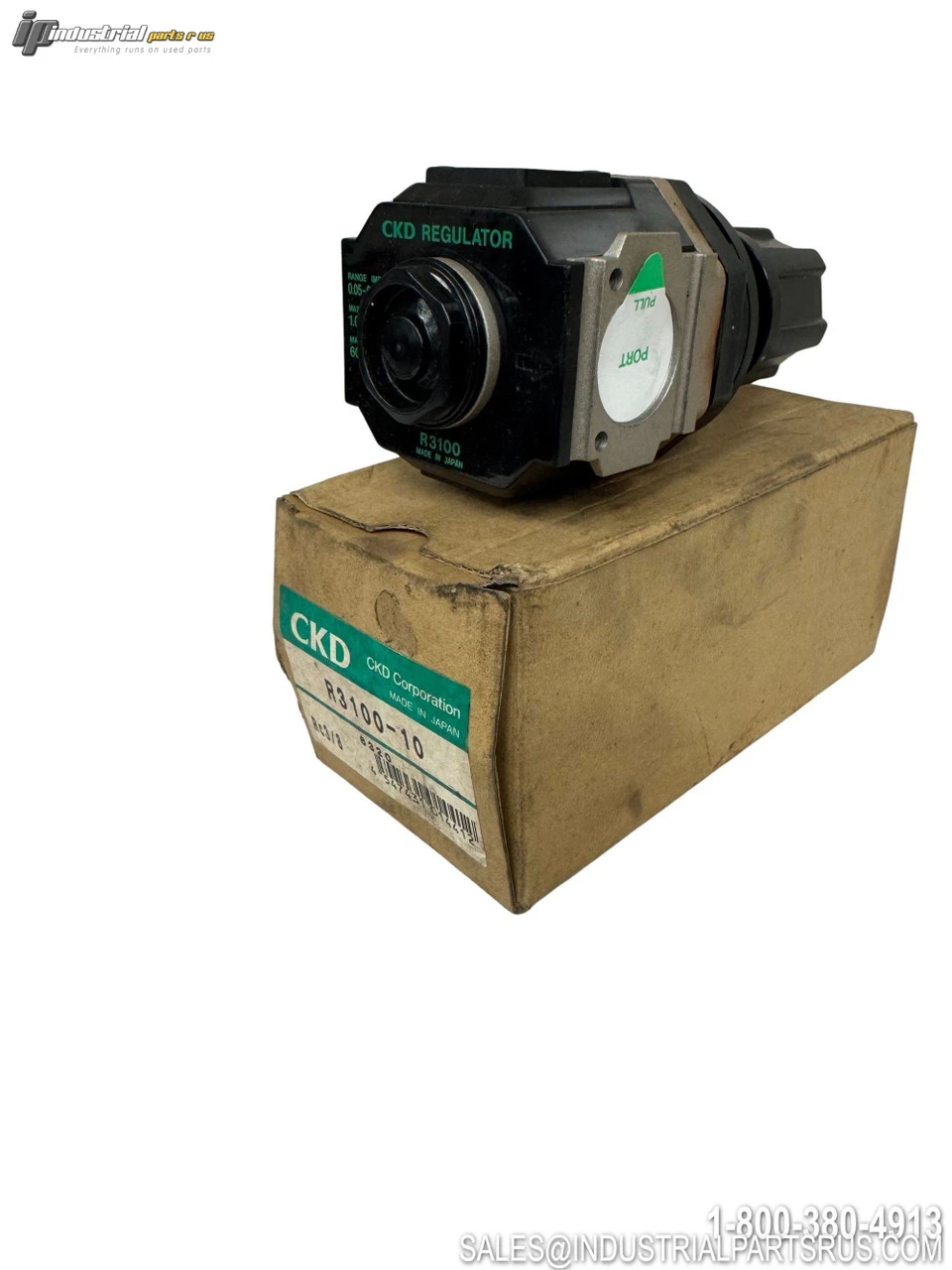

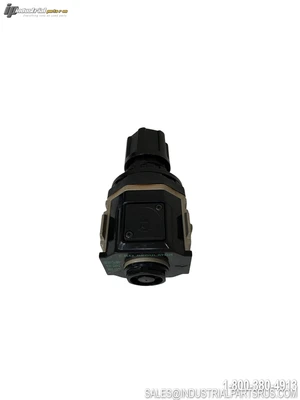

NEW CKD R3100-10

The CKD R3100-10 is a reverse-type pneumatic pressure regulator from CKD's R3100 Standard White Series. It features a built-in reverse flow (back-pressure release) function that allows secondary pressure to be relieved back to the primary side, making it well-suited for applications such as rechargeable battery processing equipment and other precision pneumatic circuits requiring pressure balance control. The regulator includes an embedded pressure gauge and supports tool-free pressure adjustment via a knob, with a push-lock mechanism for secure setting.
Specification
Value
Brand
CKD
Model / Part Number
R3100-10
Product Type
Reverse Air Regulator
Series
R3100 Standard White Series
Port Size Code
10 = 3/8"
Port Thread Type
Rc (BSPT) — standard (no N/G suffix)
Set Pressure Range

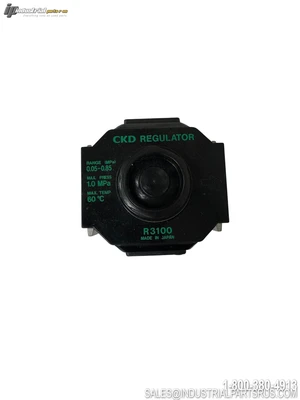

0.05 to 0.85 MPa (standard spring)
Maximum Working Pressure
1.0 MPa
Pressure Relief Type
With relief mechanism (standard)
Reverse Flow Function
Yes — secondary to primary back-pressure release
Pressure Gauge

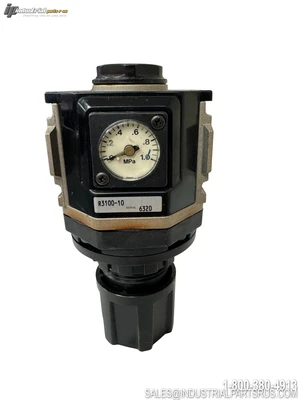

Embedded, 0–1.0 MPa indication range
Pressure Adjustment

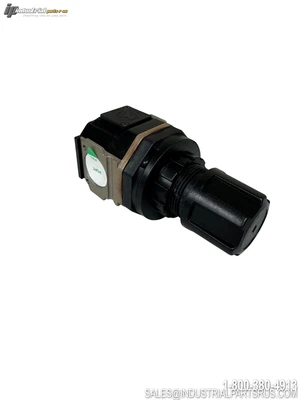

Tool-free knob with push-lock
Working Fluid
Air
Ambient / Fluid Temperature Range
5 to 50°C
Mounting
Inline piping or panel mount (panel nut included)
Compatible Attachments
L-bracket, C-bracket, piping adaptor set (optional)
Manufacturer
CKD Corporation
We warranty all items for 30 days from date of purchase.
