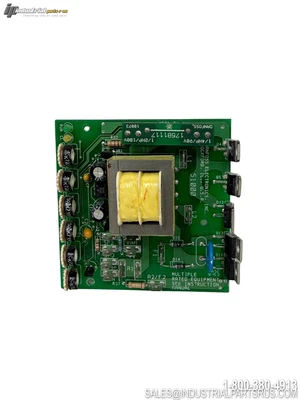

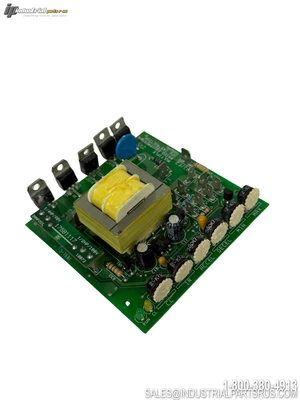

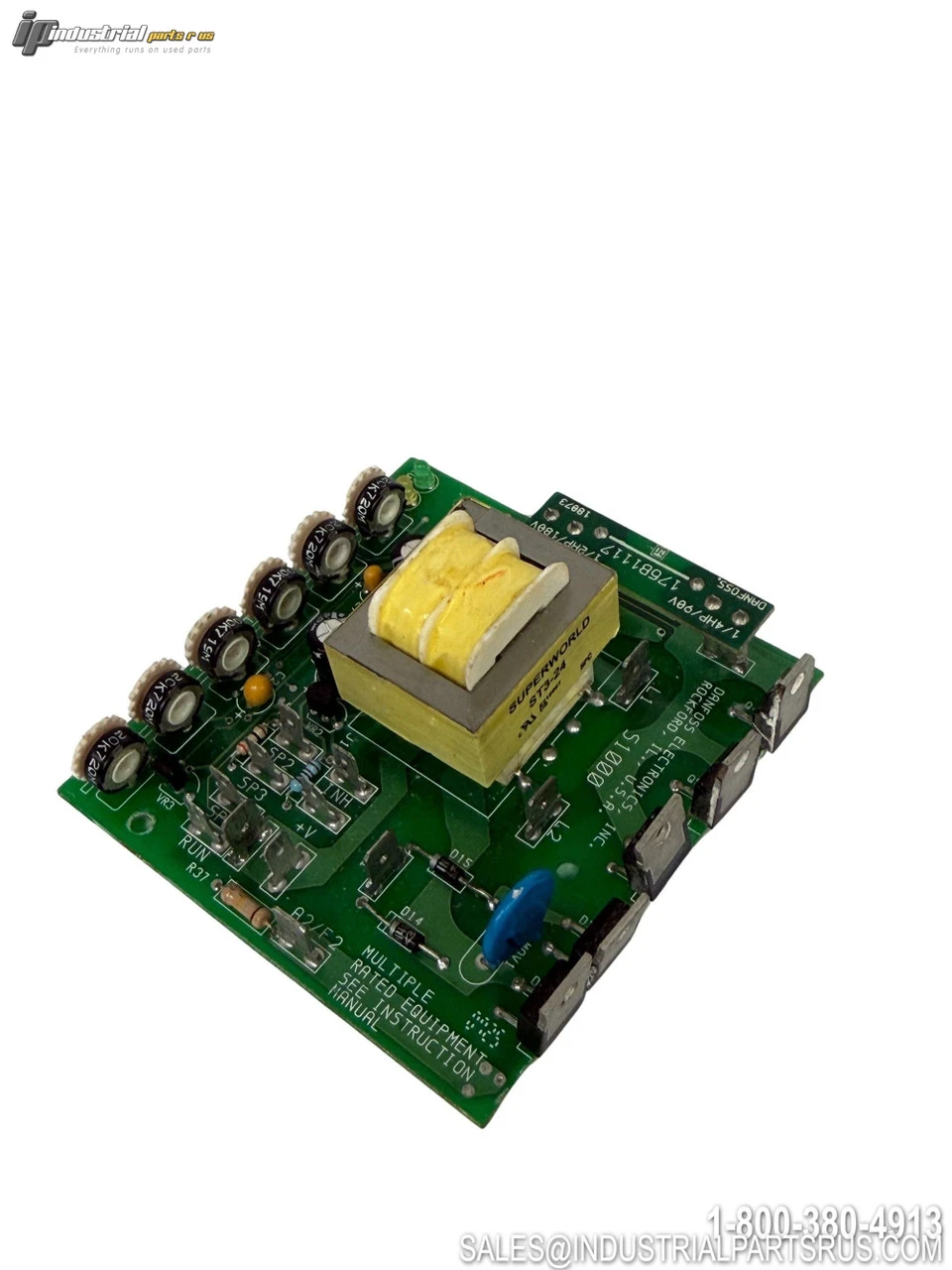

USED DANFOSS ELECTRONICS S1000

The Danfoss Electronics S1000 is a high-performance Vari-Speed DC motor speed control designed for maximum reliability in 1/20 to 2 HP DC motor applications. It features surface mount technology for improved reliability and reduced package size, and employs a full-wave bridge rectifier with free-wheeling diode for optimum motor performance. The S1000 accepts either 120 VAC or 240 VAC single-phase input and produces variable DC output (0–90VDC or 0–180VDC) to control the speed of permanent magnet or shunt-wound DC motors, and is commonly used in machine tool, lathe, and light industrial applications.
Specification
Value
Brand
Danfoss Electronics
Model / Part Number
S1000
Series / Product Name
Vari-Speed S1000
Product Type
DC Drive / DC Motor Speed Control
Horsepower Range
1/20 HP to 2 HP
Input Voltage
120 VAC or 240 VAC (single-phase, selectable)
Input Frequency
48 to 62 Hz
Output Voltage (120VAC Input)
0–90 VDC
Output Voltage (240VAC Input)
0–180 VDC
Phase
Single Phase
Rectifier Type
Full-Wave Bridge with Free-Wheeling Diode (SCR-based)
Output Devices
S6060L SCRs and D6020L Diodes
Technology
Surface Mount Technology (SMT)
Service Factor
1.0
Form Factor
1.35
Duty Cycle
Continuous
Overload Capability
150% for 1 Minute
Speed Regulation
2% of Base Speed (for 95% Load Change)
Speed Range
50:1 at Full Torque
Speed Potentiometer
5k ohm, 1W (available accessory)
Process Signal Input
0–5VDC (factory default) or 0–10VDC (via Jumper J2)
Wire Gauge (Terminal Board)
14–20 AWG
Ambient Temperature
32°F to 131°F (0°C to 55°C)
Elevation
Up to 3,000 ft (1,000 m) without derating
Current Limit
100% of Control Rating (adjustable)
Heatsink (Required for Higher HP)
P/N 176B1122 required for 3/4–1HP at 90VDC or 1.5–2HP at 180VDC
Common OEM Part Numbers
176B1111 (120VAC), 176B1113, 176B1114, 176B1129
We warranty all items for 30 days from date of purchase.
