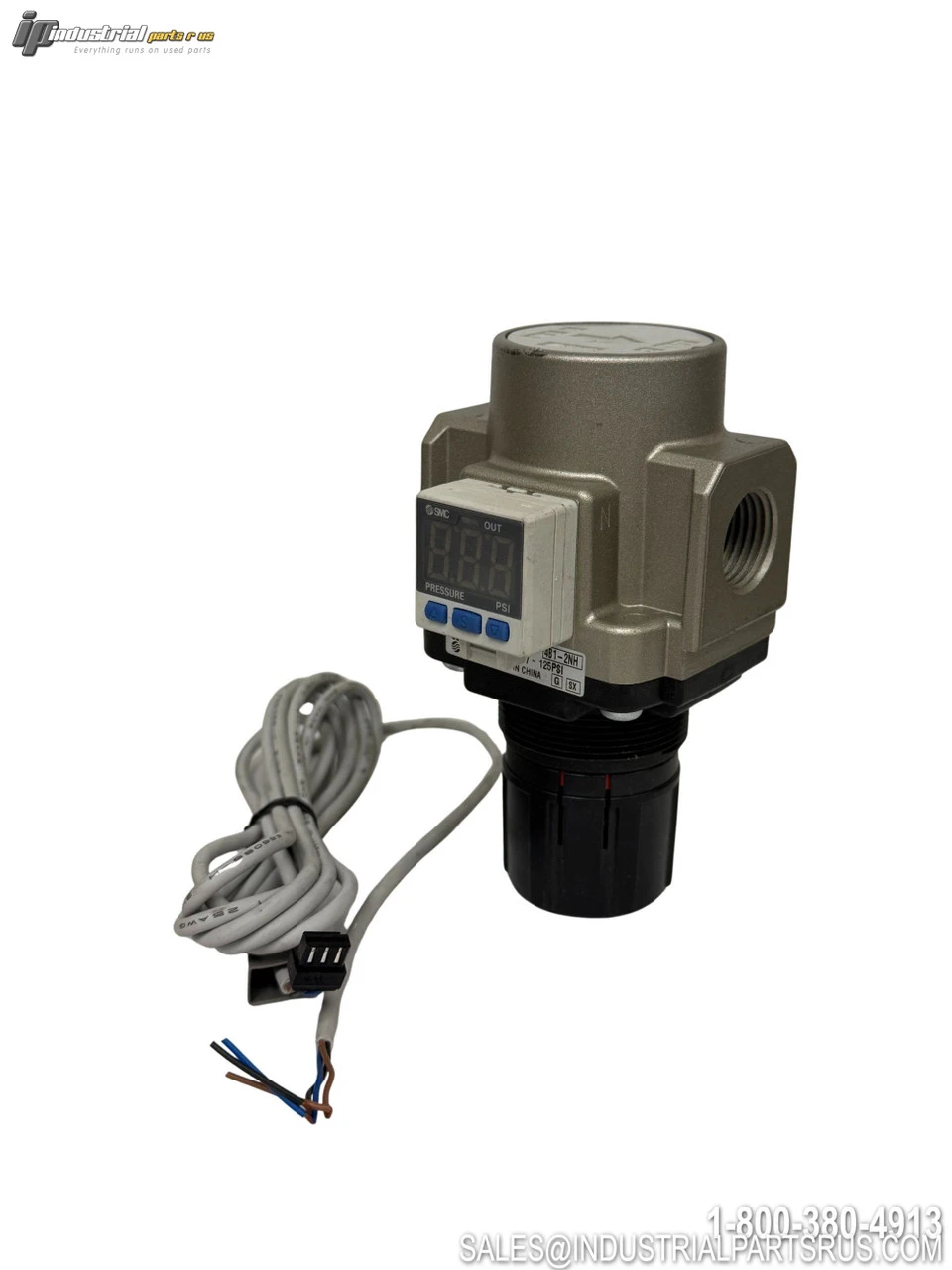

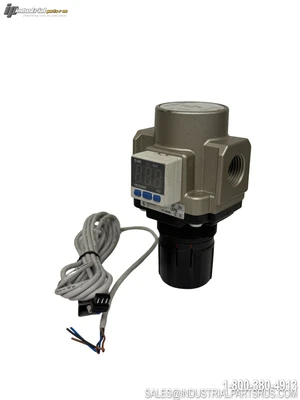

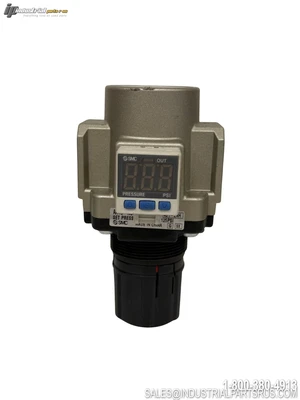

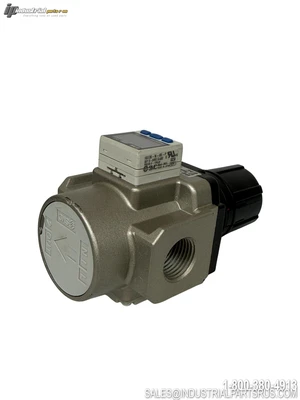

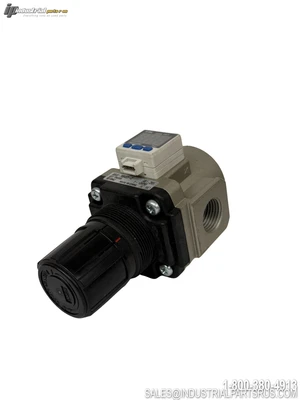

NEW SMC AR40-N04E3-Z

The SMC AR40-N04E3-Z is a modular-type pneumatic air pressure regulator from SMC's AR series, featuring a body size 40 with 1/2" NPT female ports. It includes an embedded square-type pressure gauge with a limit indicator and is configured with imperial unit markings (psi/°F) and a nameplate for North American (overseas) market use via the "Z" semi-standard designation. The relieving-type design rapidly exhausts downstream pressure when the set point is decreased, and the locking adjustment knob prevents accidental setting changes.
Specification
Value
Brand
SMC
Model / Part Number
AR40-N04E3-Z
Series
AR (Modular Regulator)
Product Type
Air Regulator, Modular Type
Body Size
40
Port Size
1/2" (04)
Thread Type
NPT (N)
Port Gender
Female
Pressure Gauge Type
Square Embedded Type with Limit Indicator + Right-Angle Round Gauge (E3 option)
Semi-Standard (Z)
Name Plate, Caution Plate, Pressure Gauge in psi / °F (Imperial Units — Overseas Use)
Regulator Type
Relieving Type (Internal Pilot)
Backflow Function
None (Standard)
Set Pressure Range
0.05 – 0.85 MPa (7.25 – 123 psi)
Maximum Set Pressure
0.85 MPa (123 psi)
Maximum Operating Pressure
1.0 MPa (145 psi)
Proof Pressure
1.5 MPa (217.6 psi)
Operating Temperature Range
-5°C to 60°C (23°F to 140°F), No Freezing
Fluid / Media
Compressed Air
Flow Direction
Left to Right
Knob Type
Downward Locking Knob (HNBR ozone-resistant rubber)
Body Material
Aluminium Die-Cast
Seal Material
NBR
Bonnet Material
Polyacetal
Diaphragm Material
HNBR (Ozone Resistant)
Max Flow Rate
1500 L/min (approx. 106 scfm)
Overall Length
128 mm
Overall Width
68 mm
Overall Height
70 mm
Modular Design
Yes — connects with other SMC AR series air preparation equipment
Panel Mount
Yes — integral panel mount ring; optional bracket and set nuts available
Manufacturer
SMC Corporation
We warranty all items for 30 days from date of purchase.
