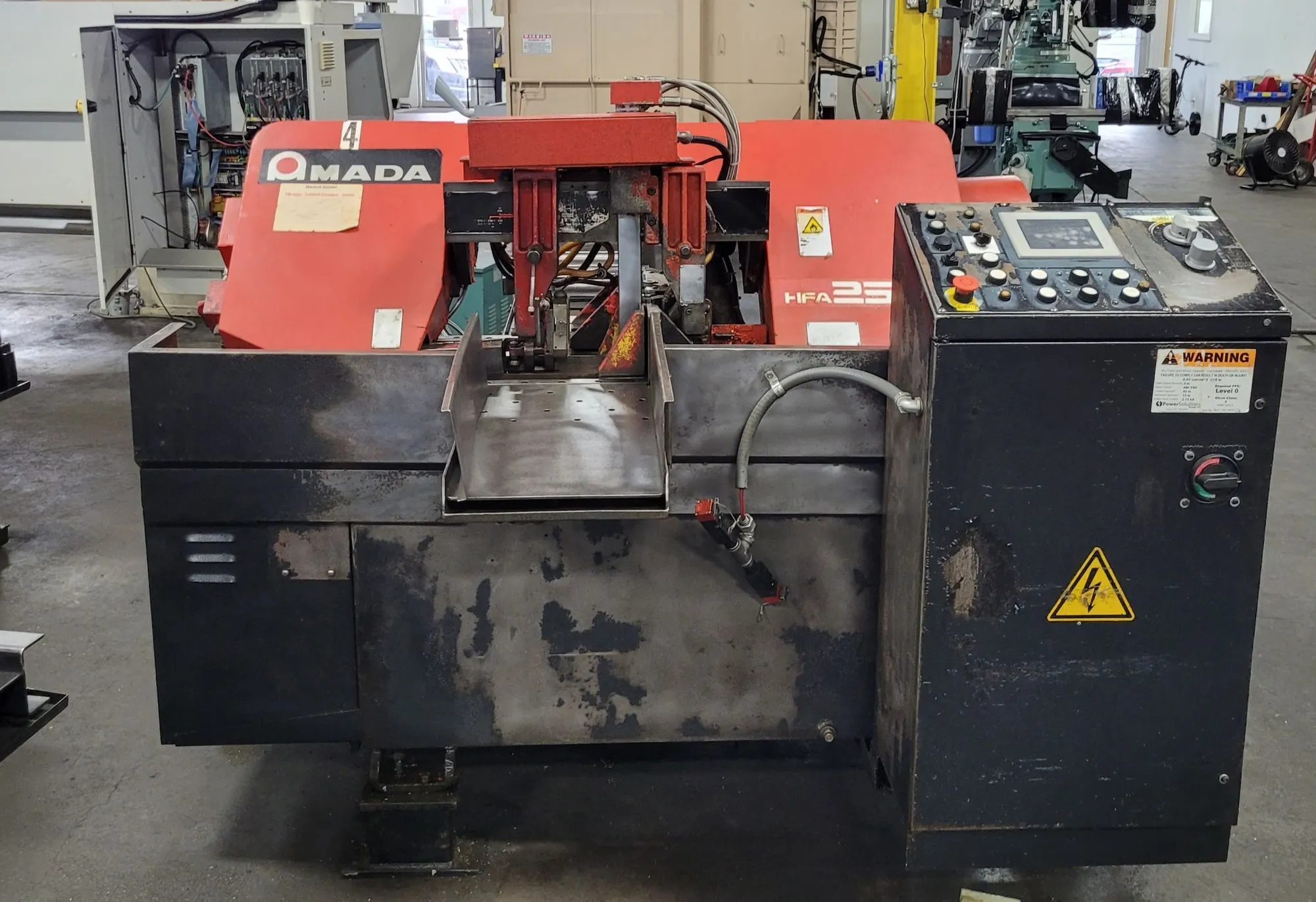

USED 2015 AMADA HFA-250W

2015 Amada HFA-250W Horizontal Band Saw

Capacity
Serial Number: 65050142
Round (Diameter): 1.18" to 10" (30–250 mm)
Rectangle (W x H): 10.6" x 10" (270 x 250 mm)
Work Load Capacity: 3,307 lbs (1,500 kg)

Saw Blade & Drive System
Blade Dimensions: 11' 6" x 0.042" x 1-1/4" (3505 x 1.1 x 34 mm)
Blade Speed: 89 - 295 ft/min (15 - 90 m/min) stepless variable
Blade Tension: Hydraulic
Saw Blade Motor: 5 HP (3.7 kW)
Belts; Blade: 2322V441K
Wire Brush: M-37

Material Indexing
Single Index Stroke: 15.75" (400 mm)
Repeat Indexing: Up to 9 times
Index Length: 0.39" to 999.999"
Remnant Length: 2.24" plus part length

Standard Features
Hydraulic full-stroke vises
Automatic head approach (feeler)
Powered chip conveyor
Blade deviation monitor
Motion detector (prevents wheel wear/blade breakage)
Auto-trim cut

Wired: 230V, 3 Phase, 60Hz, 8 KVA

Machine Dimensions & Weight
Machine Weight: 3,310 lbs (1,500 kg)
Dimensions (Head Down): 76.6" x 93.1" x 50.6" (W x L x H)
Table Height: 27.6"
