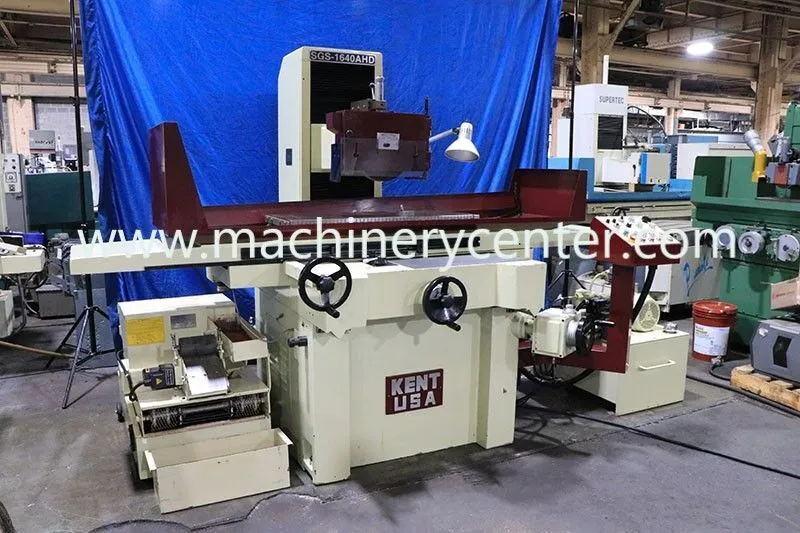

USED 2015 KENT Model: SGS-1640AHD

Kent Grinder
Model: SGS-1640AHD
Year: 2015-12

SIZE OF MAGNETIC CHUCK ......... 16” x 40”
DIST. FROM SPINDLE CENTER TO TABLE .... 23"
LONGITUDINAL TABLE TRAVEL ............. 43"
CROSS TRAVEL .......................... 17- 3/4"
VARIABLE TABLE SPEED, HYDRAULIC ..... 16' TO 80' FPM
AUTOMATIC CROSSFEED INCREMENT ......... 0 TO 5/8"
RAPID CROSS TRAVERSE RATE ............. 35" IPM
AUTO INCREMENTAL DOWNFEED ............. 0.001" TO .0001"
DOWNFEED HANDWHEEL PER GRADUATION ..... 0.0005"
PER REVOLUTION ........................ 0.1"
CROSSFEED HANDWHEEL PER GRADUATION .... 0.001"
PER REVOLUTION ............. .......... 0.2"
SPINDLE MOTOR ......................... 7.5 H.P.
STANDARD GRINDING WHEEL ............. 14"D x 2" x 5"
APPROX. WEIGHT ........................ 7,480 LBS

EQUIPPED WITH:
AUTO INCREMENTAL DOWNFEED (SURFACE & PLUNGE)
POWER RAPID WHEELHEAD POSITIONING
HYDRAULIC TABLE TRAVERSE
POWER CROSSFEED
16" X 40" KANETSU "KET-40100K" ELECTRO-MAGNETIC CHUCK
W/VARIABLE HOLD NEUTROFIER CONTROL
OVER-THE-WHEEL DRESSER, WITH MICROMETER ADJUSTMENT
OF THE DIAMOND
COOLANT SYSTEM w/PAPER FILTRATION & MAGNETIC SEPARATOR
MEEHANITE CASTING
V & FLAT TURCITE WAYS FOR SMOOTH LONGITUDINAL TRAVEL
CENTRALIZED LUBRICATION SYSTEM
EXTERNAL HYDRAULIC SYSTEM
WIRED PRESENTLY FOR 3/60/230 VOLTS

SPECIAL NOTE:
"AS EQUIPPED", OUR MACHINE IS OVER 60K NEW TODAY!

** ORIGINAL PAINT - EXCEPTIONAL CONDITION **
