USED 2022 DOOSAN DNM 6700

Lot Closes:: 7/30/2026 11:00:00 AM PT

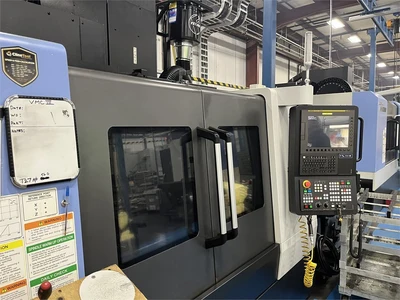

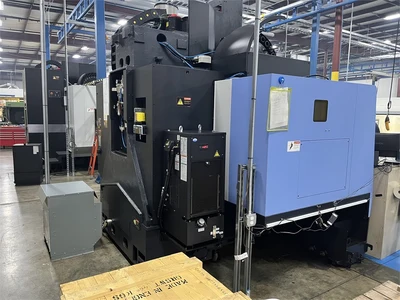

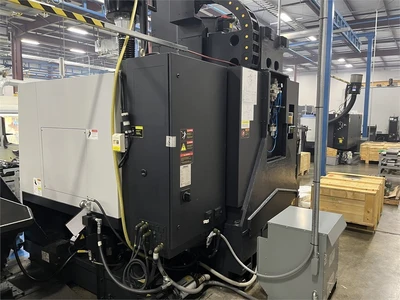

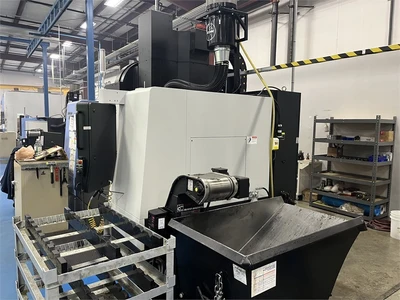

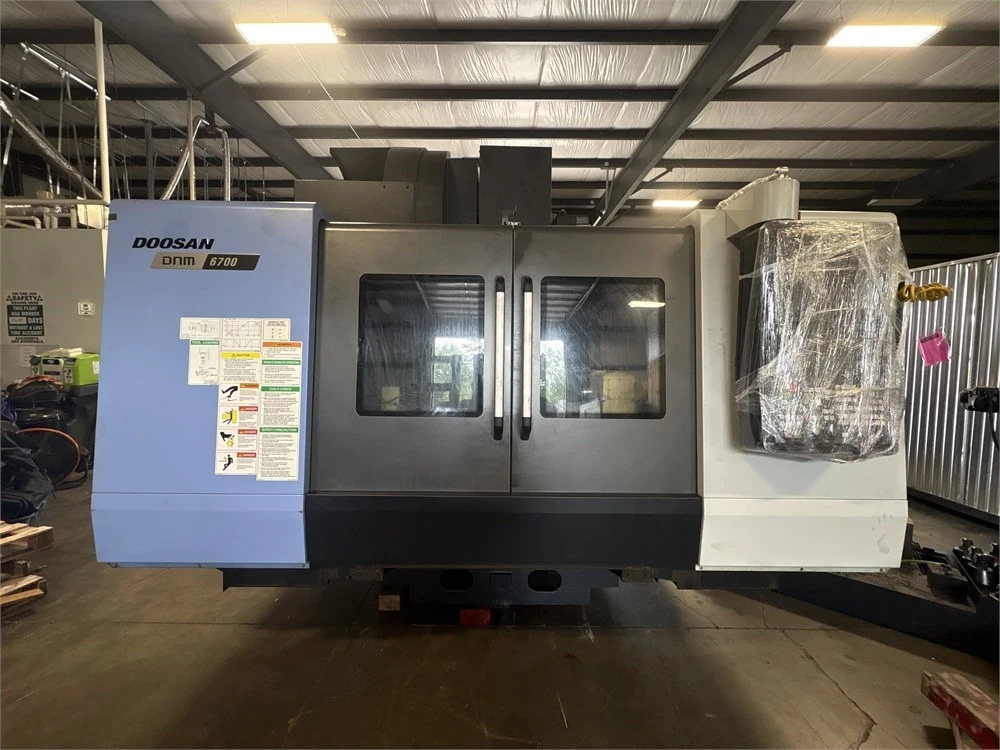

Doosan "DNM 6700" 4 Axis Vertical Machining Center (2022)
See attached original Spec Sheet/Quote

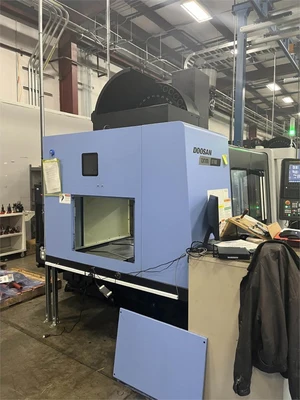

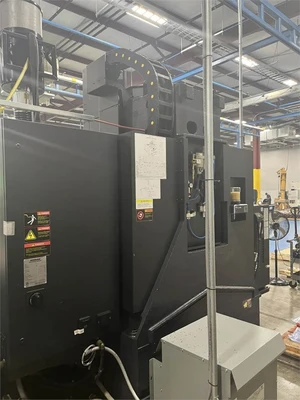

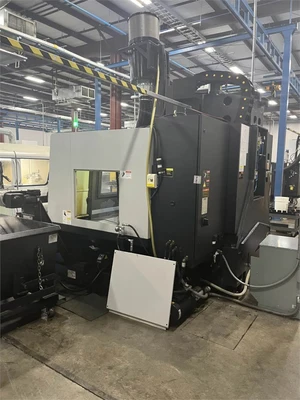

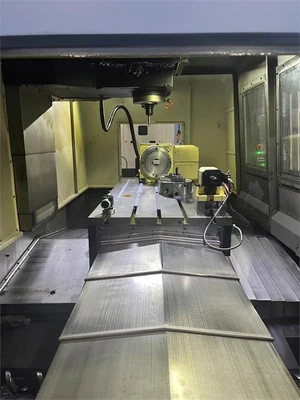

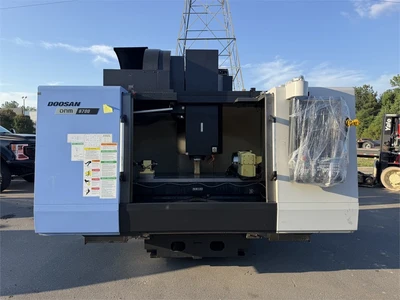

Machine has been prepared for shipping by rigger, see photos and video
3,446 approximate hours

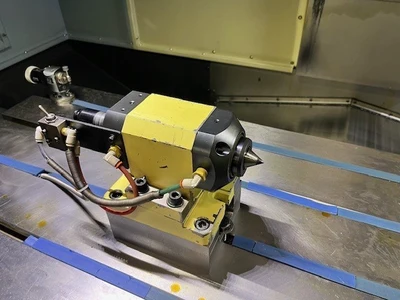

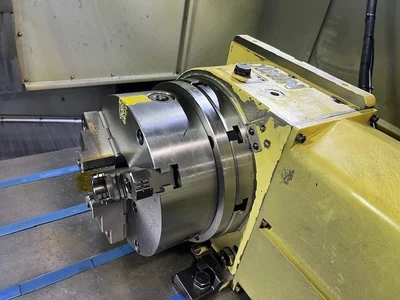

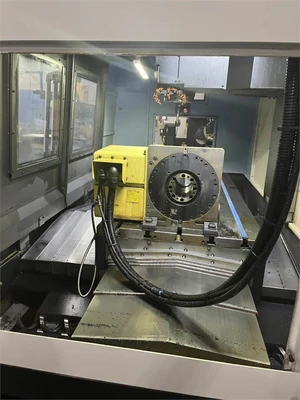

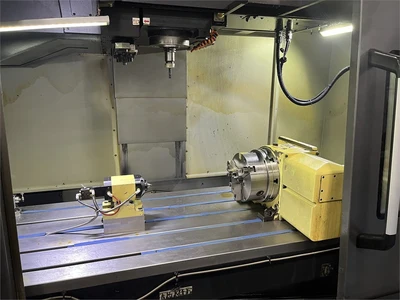

Thru spindle coolant, 4th axis, probing, tool setter
SPINDLE:
High precision, direct coupled spindle design with (11 / 18.5 kw \ 15 / 25 hp motor, 12,000 rpm)
Spindle nose to table top 150 mm to 775 mm (5.9" to 30.51")
Big Plus Spindle system CAT 40 Big Plus
Spindle speed 12,000 rpm
AC Spindle Motor (S3 15%) 11 / 18.5 kw (15 / 25 hp)
Spindle Torque (S3 15%) 118 nm (87 ft-lbs)
Spindle Acceleration \ Deceleration time 0 - 12k (2.06 sec) \ 12k - 0 (2.12 sec)
AUTOMATIC TOOL CHANGER:
Cam Type, Double Arm ATC
Number of Tools:  30
Tool Shank CAT 40
Pull Stud (Supply Company #) 711-23
Max. Tool Dia. \ Adjacent pots are empty (30) 80 mm \ 125 mm (3.15" \ 4.9")
Max. Tool Dia. \ Adjacent pots are empty (40\60) 76 mm \ 125 mm (2.99" \ 4.9")
Max. Tool Length 300 mm (11.8")
Max. Tool Weight 8 kg (17.6 lbs)
TANK CAPACITY:
Coolant tank capacity 325 liters (86 gallons)
Lubrication tank capacity .7 liter (.18 gallon)

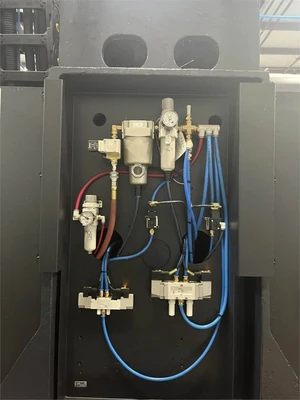

Air Required .54 mpa (80 psi) * 8.83 cfm

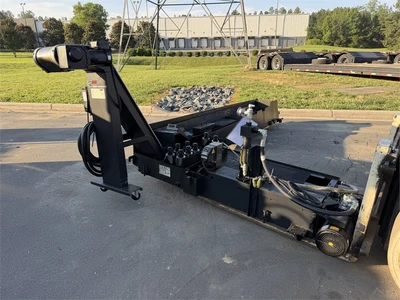

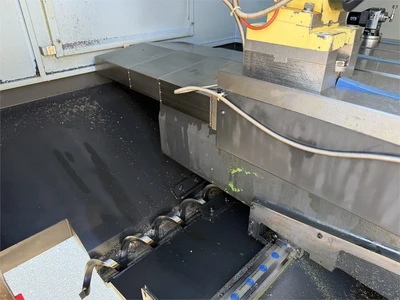

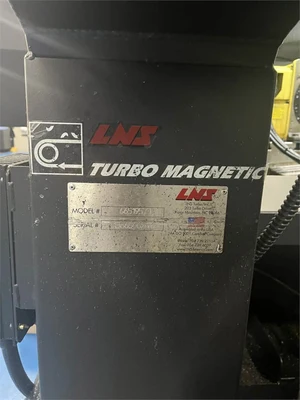

Chip conveyor
Sound enclosure

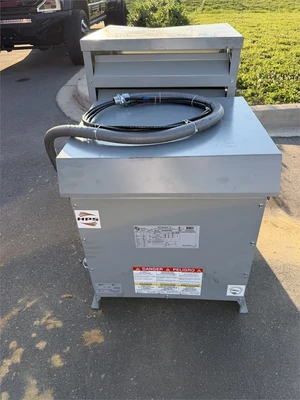

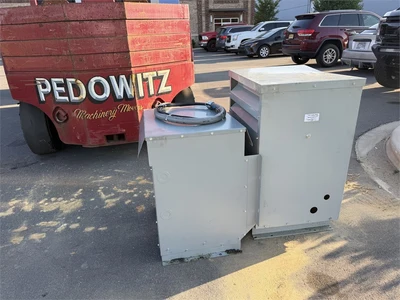

External electrical transformer, It is the purchaser’s responsibility to insure correct power requirements are met and properly supplied to the machine tool.

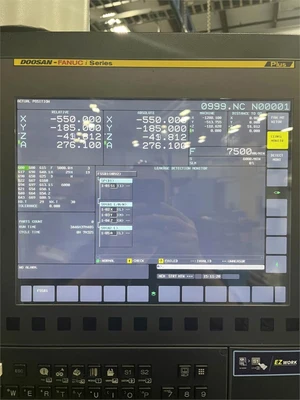

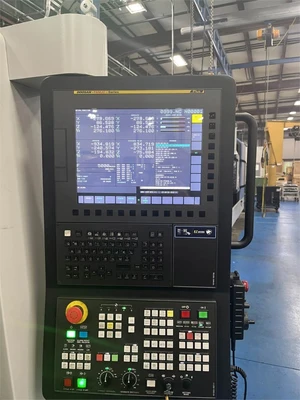

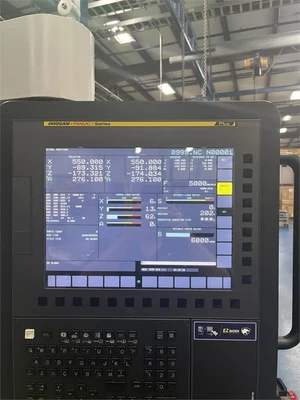

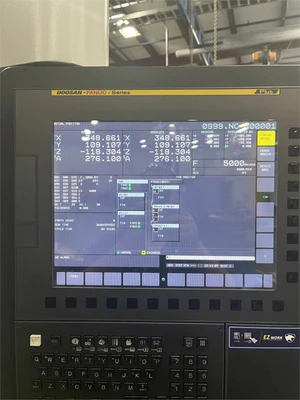

FANUC 0i-Plus control with iHMi touch screen interface
AICC II (200 block look ahead) + 1 gig data server
Renishaw probe ready (OMI-2T optical receiver and GUI software only)
Doosan Tool Load Monitoring and Adaptive Feedrate Control
Doosan Smart Thermal Monitoring (Software algorithm based thermal compensation system)
Remote control pendant
Massive Meehanite cast iron bed

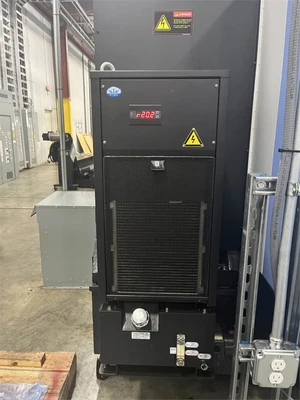

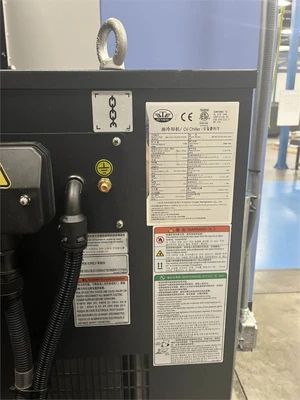

Spindle oil chiller
Spindle orientation, load meter, override and rigid tapping
Large Linear Roller Guides (X - 45 mm \ 1.772", Y - 45 mm \ 1.772", Z - 45 mm \ 1.772")
Servo motors mounted directly to the oversized and pre-tensioned ball screws (X - 40 mm \1.575", Y - 40 mm \ 1.575", Z - 40 mm \ 1.575")
Fast rapid traverse rate (X - 36 m/min \ 1,417 ipm, Y - 36 m/min \ 1,417 ipm, Z - 30 m/min \1,181 ipm)
X axis travel 1,300 mm (51.18")
Y axis travel 670 mm (26.38")
Z axis travel 625 mm (24.60")

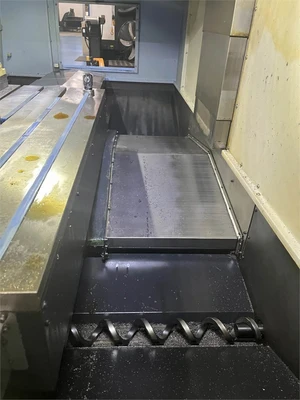

Table loading area 1,500 mm x 670 mm, (59.05" x 26.37")
Allowable table load 1,300 kg (2,866 lbs)
Table T-slot spacing x width (5) - 125mm x 18H8,(5) - 4.92" x .71"
MOTION:
X axis rapid traverse rate 36 m/min (1,417 ipm)
Y Axis rapid traverse rate 36 m/min (1,417 ipm)
Z axis rapid traverse rate 30 m/min (1,181 ipm)
Cutting feed rate 1 - 15,000 mm/min (.04 - 590 ipm)
Least command increment .001 mm (.0001")
X axis feed thrust (Continuous) 2,203 lbs
Y axis feed thrust (Continuous) 2,203 lbs
Z axis feed thrust (Continuous) 2,652 lbs
Positioning accuracy (Full Stroke)* +/- .005 mm (+/- .0002")
Repeatability +/- .002 mm (+/- .000080")
