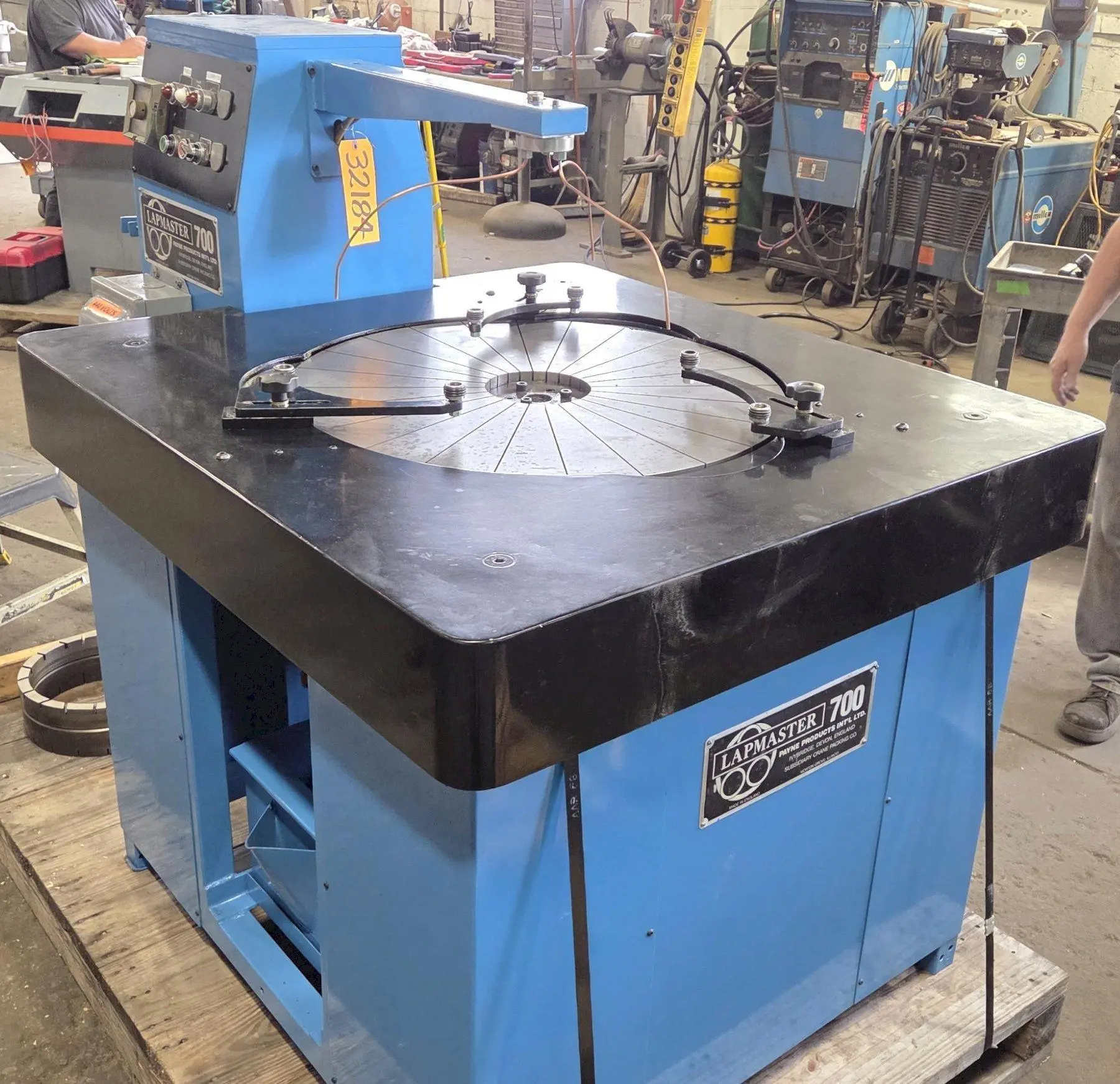

USED LAPMASTER 700

LAPMASTER PRECISION FLAT LAPPING MACHINE

MODEL: 700
SERIAL NUMBER: 70022

GENERAL SPECIFICATIONS

Three Ring Style Open Face Machine
For Production Parts Up To: 10-11/16" Diameter
Diameter Of Lapping Plate: 27-1/2" x 5-15/16" I.D.
Diameter Of Conditioning Rings: 10-3/4" I.D.  x 12-3/8" O.D.
Distance From Floor To Table: 36"
Lapping Plate Speed: Approximately 70 RPM

EQUIPPED WITH

2 HP Main Drive Motor and Controls
27-1/2" Diameter Cast Iron Serrated Lapping Plate

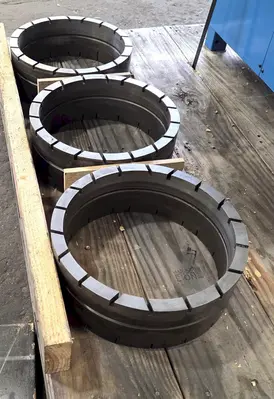

(3) Cast Iron Conditioning Rings
(3) Adjustable Ring Roller Guides (Yokes)
Heavy Duty Outside Parts Loading Table

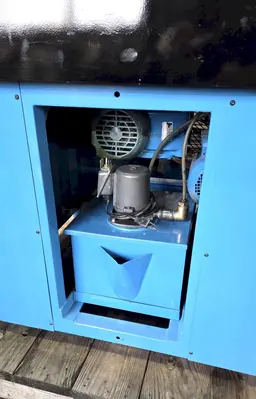

Slurry Feed System w/Pump and Distributor
Automatic Cycle Timer Control

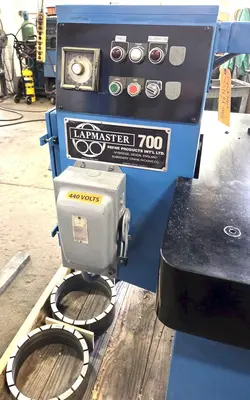

Push Button Control Station

Approximate Floor Space: 60" x 67" x 58"H
Approximate Weight: 2500 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
