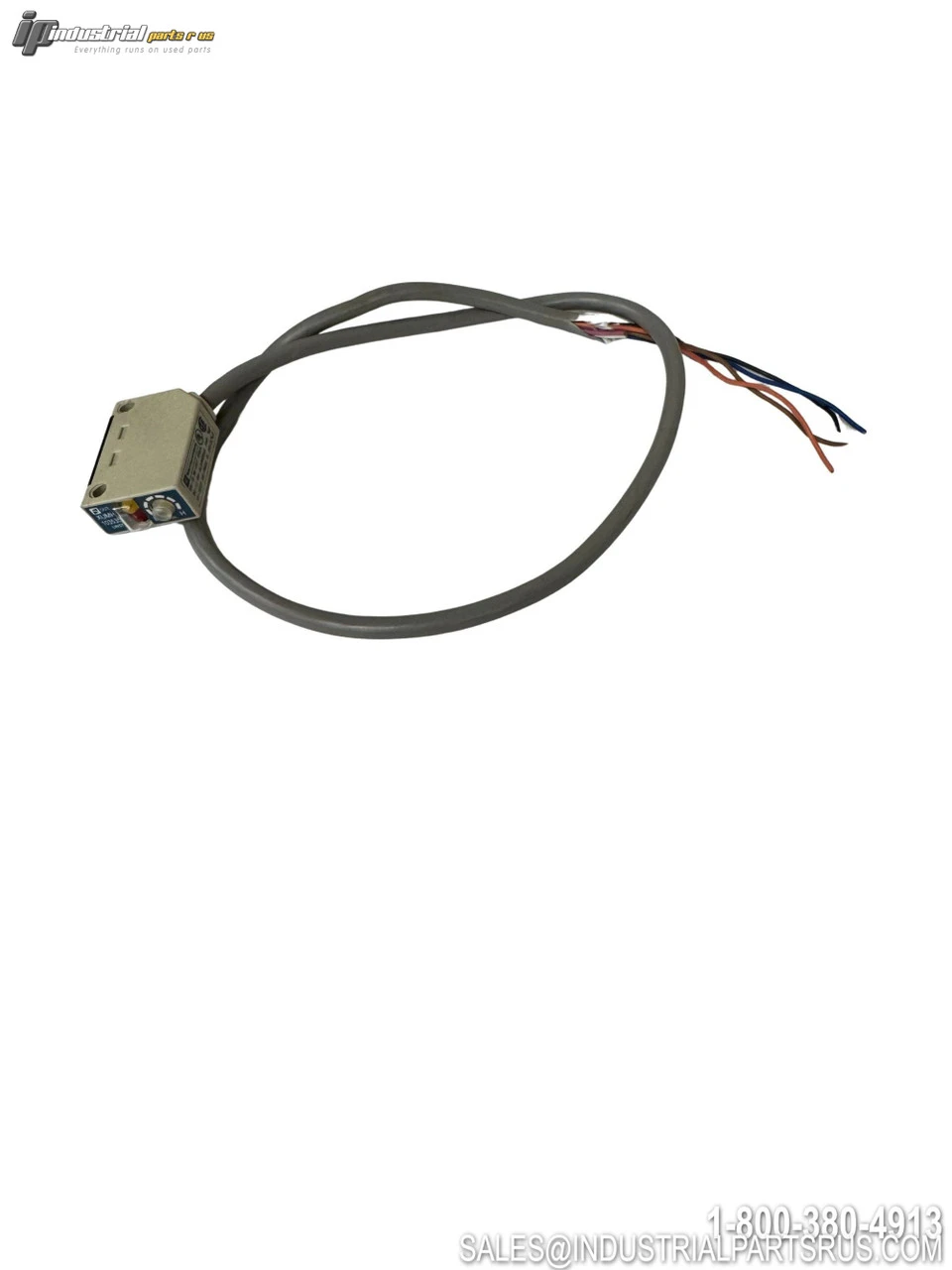

USED TELEMECANIQUE XUMH103535

The Telemecanique XUMH103535 is a legacy XUM series miniature photoelectric sensor from Schneider Electric's Osiris sensor family. Designed for non-contact object detection in industrial automation applications such as packaging, conveying, and assembly, this compact sensor features a PNP solid-state output and operates on a 12–24 VDC supply. This part number has been discontinued by the manufacturer and is cross-referenced to the current XUM0APSAL2 multimode replacement in Schneider Electric's substitution guide.
Specification
Value
Brand
Telemecanique
Model / Part Number
XUMH103535
Product Type
Photoelectric Sensor
Series / Family
XUM (Miniature Osiris Design)
Sensor Design
Miniature (Rectangular)
Detection System
Thru-Beam (Infrared)
Nominal Sensing Distance (Sn)
10 m (Thru-Beam)
Output Type
PNP (Transistor, Solid-State)
Output Function
1 NO or 1 NC (Programmable)
Supply Circuit Type
DC
Supply Voltage
12–24 VDC
Load Current (Max)
100 mA
Wiring Technique
3-Wire
Electrical Connection
Pre-wired Cable, 2 m
Enclosure / Body Material
Plastic (PBT)
Degree of Protection
IP67
Operating Temperature
-25°C to +55°C (-13°F to +131°F)
Overload / Short-Circuit Protection
Yes
Manufacturer / Parent Company
Schneider Electric (Telemecanique Sensors)
Status
Discontinued / Legacy (Obsolete)
Modern Replacement
XUM0APSAL2
We warranty all items for 30 days from date of purchase.
