USED GOULDS 3196

Used Equipment Facts About This Machine
MANUFACTURER INFORMATION
Goulds Pumps, an ITT brand, manufactures industrial centrifugal pumps for chemical processing, petrochemical, pulp and paper, food and beverage, metals, and general industrial applications. The Goulds 3196 product family is an ANSI B73.1 process-pump line designed for industrial liquid-transfer and process duties. Goulds identifies features of the broader 3196 line that include an open impeller, back pull-out construction, external impeller adjustment, and multiple sealing configurations. Those product-line features should not be attributed to this individual pump unless confirmed from its nameplate and documentation.
MAIN PRODUCT DESCRIPTION

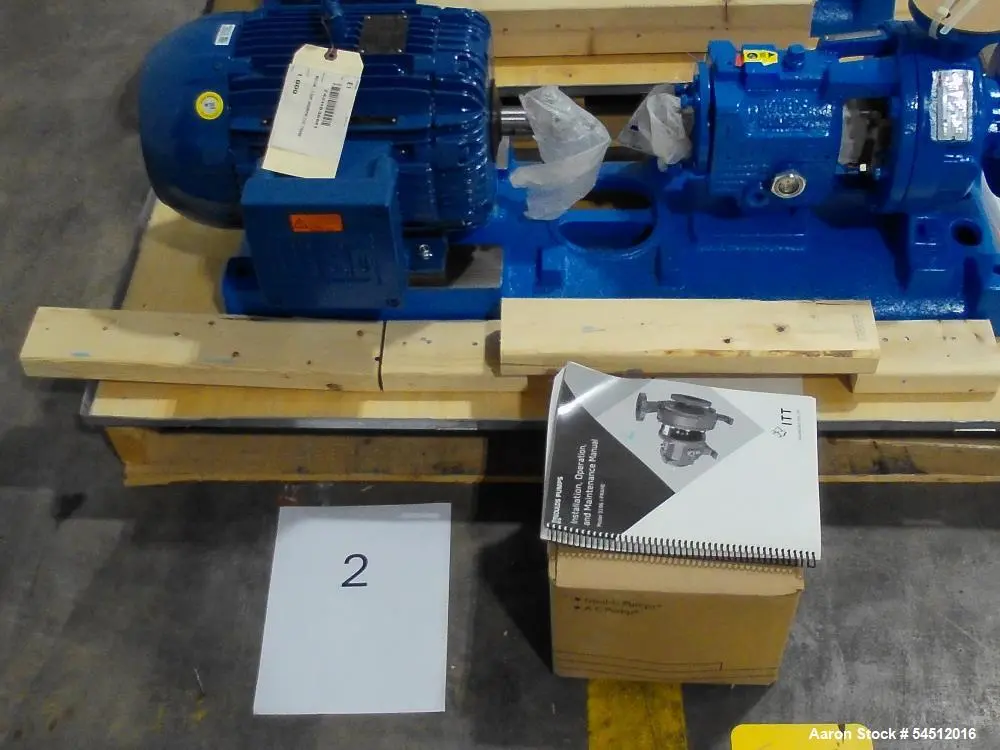

Unused Goulds Model 3196 ANSI centrifugal process pump, size 1.5 x 3-6, with 316 stainless steel construction and 316 stainless steel shaft, shaft sleeve, and seal gland. The pump is equipped with flood-oil lubrication, a Rexnord ES-e coupling, an aluminum non-sparking coupling guard, and a cast-iron baseplate. It is driven by a 7.5 HP, 3,600 RPM explosion-proof motor rated for 230/460-volt, three-phase, 60 Hz service with Class F insulation and a 1.15 service factor. The listed operating condition is 150 GPM at 40 PSI for Ethanol SDA 40B-200. The impeller diameter, mechanical seal details, serial number, year, pump curve, overall dimensions, weight, and testing status are not specified. Aaron Equipment stock number 54512016.
SPECIFICATIONS

Equipment type: ANSI centrifugal process pump
Manufacturer: Goulds
Model: 3196
Pump size: 1.5 x 3-6
Condition: Unused
Rated flow: 150 GPM
Listed rated pressure: 40 PSI
Rated service fluid: Ethanol SDA 40B-200
Pump construction: 316 stainless steel
Shaft material: 316 stainless steel
Shaft sleeve material: 316 stainless steel
Seal-gland material: 316 stainless steel
Lubrication: Flood-oil lubrication
Coupling manufacturer: Rexnord
Coupling model or series: ES-e
Coupling guard: Aluminum, non-sparking
Baseplate material: Cast iron

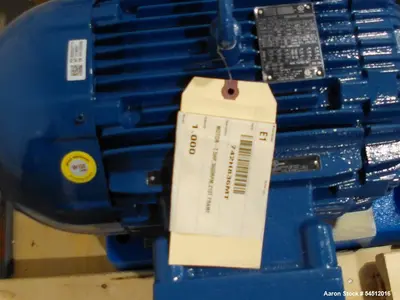

Motor horsepower: 7.5 HP
Motor speed: 3,600 RPM
Motor enclosure: Explosion-proof
Voltage: 230/460 volts
Phase: Three-phase
Frequency: 60 Hz
Insulation class: Class F
Motor service factor: 1.15
Stock number: 54512016

APPLICATIONS

Chemical liquid transfer
Solvent transfer
Ethanol transfer
Alcohol-handling systems
Petrochemical process service
Reactor feed
Process circulation
Tank-to-tank transfer
Batch-processing systems
Column feed or reflux service
General industrial liquid transfer
Food and beverage processing where construction and sanitary requirements are suitable
Pharmaceutical process support where pump design and documentation are suitable
Paint, coating, resin, and adhesive processing
Utility and plant-process service

The broader Goulds 3196 pump line is marketed for chemical, petrochemical, pulp and paper, primary-metals, food and beverage, and general industrial duties. Application suitability for this specific pump must be confirmed against its hydraulic curve, materials, seal arrangement, motor classification, and process conditions.
SUITABLE PRODUCTS AND MATERIALS

Ethanol SDA 40B-200
Industrial alcohols
Compatible solvents
Process chemicals
Hydrocarbon-based liquids
Cleaning solutions
Water-based process liquids
Compatible food ingredients
Compatible beverage-processing liquids
Liquid additives
Resins
Coatings
Adhesive components
Low-viscosity process fluids
Other liquids compatible with 316 stainless steel and the installed seal materials

Actual suitability depends on chemical concentration, temperature, viscosity, vapor pressure, specific gravity, solids content, corrosion potential, required flow, required head, net positive suction head available, and mechanical-seal compatibility.
PRODUCT DETAILS

Unused ANSI centrifugal process pump
Goulds Model 3196
Pump size 1.5 x 3-6
316 stainless steel pump construction
316 stainless steel shaft
316 stainless steel shaft sleeve
316 stainless steel seal gland
Rated at 150 GPM and 40 PSI for the listed ethanol service
Flood-oil bearing lubrication
Rexnord ES-e coupling
Aluminum non-sparking coupling guard
Cast-iron baseplate
7.5 HP motor
3,600 RPM motor speed
Explosion-proof motor
230/460-volt electrical service
Three-phase, 60 Hz power
Class F motor insulation
1.15 motor service factor
Available as Aaron Equipment stock number 54512016

FAQS

WHAT TYPE OF PUMP IS THIS?
This is an unused Goulds Model 3196 horizontal ANSI centrifugal process pump.
WHAT IS THE PUMP SIZE?
The listed pump size is 1.5 x 3-6. Buyers should confirm the suction and discharge connection orientation from the nameplate or dimensional drawing.
WHAT IS THE RATED CAPACITY?
The listing states a rated operating condition of 150 GPM at 40 PSI for Ethanol SDA 40B-200.
DOES 40 PSI REPRESENT TOTAL DIFFERENTIAL PRESSURE?
The listing states 40 PSI but does not clarify whether this is differential pressure, discharge pressure, or another rating. The pump curve or original data sheet should be reviewed.
WHAT IS THE PUMP CONSTRUCTED FROM?
The listing states that the pump has 316 stainless steel construction. The shaft, shaft sleeve, and seal gland are also identified as 316 stainless steel.
IS THE PUMP USED OR UNUSED?
The equipment is listed as unused. Buyers should confirm whether it has ever been installed, energized, wet-tested, or exposed to process fluid.
WHAT SIZE MOTOR IS INCLUDED?
The pump is driven by a 7.5 HP, 3,600 RPM motor.
WHAT ELECTRICAL SERVICE DOES THE MOTOR REQUIRE?
The motor is rated for 230/460 volts, three-phase, 60 Hz service.
IS THE MOTOR EXPLOSION-PROOF?
Yes. The listing describes the motor as explosion-proof. The exact hazardous-area class, division or zone, group, and temperature code are not specified.
WHAT TYPE OF COUPLING IS INCLUDED?
The pump includes a Rexnord ES-e coupling and an aluminum non-sparking coupling guard.
WHAT TYPE OF LUBRICATION DOES THE PUMP USE?
The listing identifies flood-oil lubrication.
IS A MECHANICAL SEAL INCLUDED?
The listing identifies a 316 stainless steel seal gland, but it does not provide enough information to confirm the manufacturer, model, style, or materials of the installed mechanical seal.
CAN AARON EQUIPMENT HELP VERIFY THE PUMP FOR MY APPLICATION?
Yes. Provide the liquid, concentration, temperature, viscosity, specific gravity, required flow, total dynamic head, suction conditions, NPSH available, system pressure, hazardous-area classification, and electrical service so Aaron Equipment can help evaluate the application.
CAN THE PUMP BE INSPECTED OR TESTED?
Contact Aaron Equipment to discuss inspection availability, nameplate photographs, shaft rotation, lubrication inspection, motor testing, alignment checks, documentation, and other available testing.
DOES AARON EQUIPMENT HELP WITH SHIPPING?
Yes. Aaron Equipment can assist with loading and freight coordination. Buyers should confirm the complete skid dimensions, weight, lifting points, center of gravity, preservation requirements, and whether the pump should be shipped with oil removed.
