USED FITZPATRICK DKAS012

Manufacturer
The Fitzpatrick Company is a globally recognized manufacturer of precision milling, size reduction, and particle processing equipment for the pharmaceutical, food, nutraceutical, chemical, and personal care industries. FitzMill processors are known for delivering consistent particle size reduction, gentle product handling, and reliable performance in sanitary manufacturing environments.

Description
The Used Fitzpatrick FitzMill, Model DKAS012, is a heavy-duty stainless steel hammer mill designed for efficient size reduction, granulation, deagglomeration, and milling of a wide variety of dry products. Constructed with stainless steel product contact surfaces, this versatile mill is ideal for pharmaceutical, food, nutraceutical, chemical, and industrial processing applications requiring sanitary operation and consistent particle sizing.

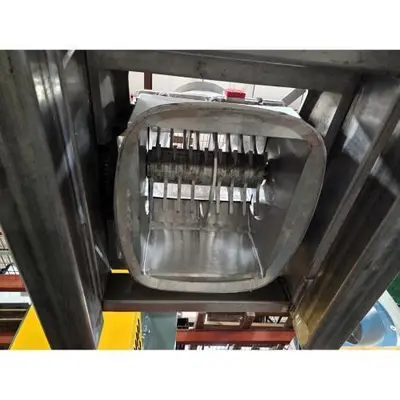

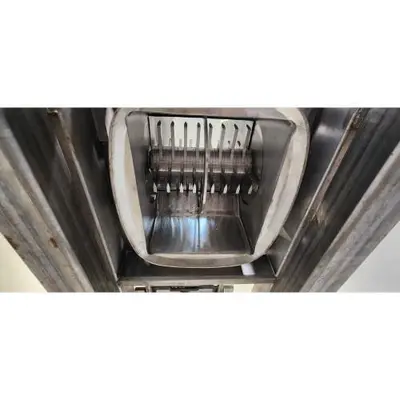

The milling chamber measures approximately 12.5 inches wide by 15.37 inches long and incorporates a center screen support bar. The mill is equipped with 32 reversible fixed milling blades featuring blunt flat-edge and knife-edge cutting surfaces, allowing operators to optimize milling performance based on product characteristics while extending blade service life.

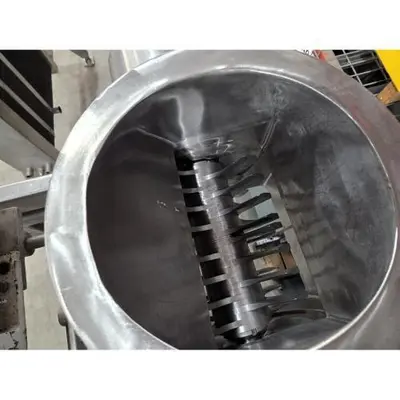

Material enters through a 10-inch flanged inlet and discharges through a large 16-inch × 19-inch oval outlet with a banding groove, positioned approximately 75.5 inches above the base for convenient integration with downstream conveying or collection equipment.

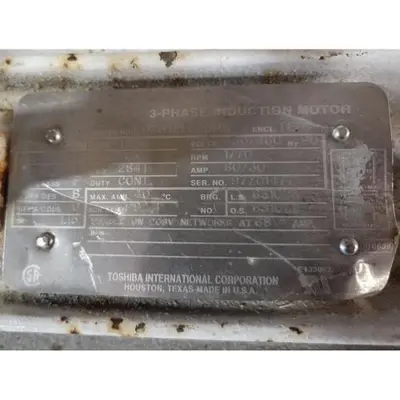

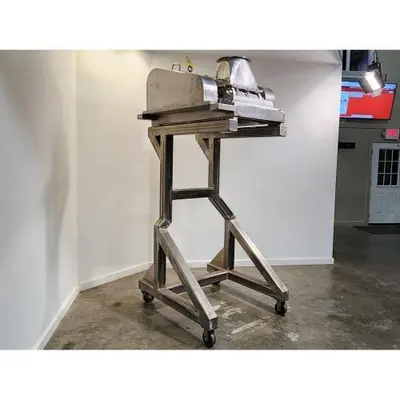

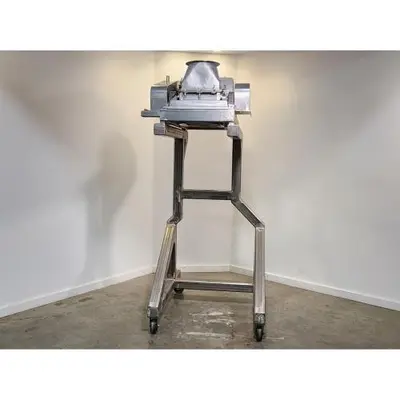

The unit is powered by a 25 HP, 1,770 RPM motor suitable for 230/460 Volt, 3 Phase, 60 Hz electrical service. The mill is mounted on a robust welded stainless steel portable frame fabricated from 4-inch box tubing, providing excellent mobility and durability.
Note: Screens are not included, allowing users to select screen perforations appropriate for their desired particle size and application.

Specifications

Specification
Details

Manufacturer
Fitzpatrick Company

Model

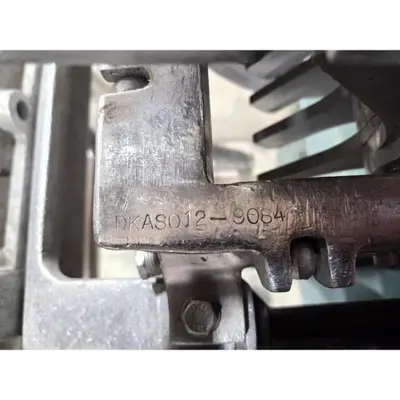

DKAS012

Equipment Type
FitzMill / Hammer Mill / Size Reduction Mill

Construction
Stainless Steel

Milling Chamber
Approximately 12.5 in. W × 15.37 in. L

Screen Support
Center Screen Support Bar

Screens
Not Included

Milling Blades
32 Fixed Reversible Blades

Blade Configuration
Blunt Flat-Edge / Knife-Edge

Inlet
10 in. Flanged

Discharge
16 in. × 19 in. Oval with Banding Groove

Discharge Height
Approximately 75.5 in. Above Base

Motor
25 HP

Motor Speed
1,770 RPM

Electrical
3 Phase, 60 Hz, 230/460 Volt

Base Frame
Welded Stainless Steel, 4 in. Box Tubing

Base Dimensions
Approximately 42 in. W × 48 in. L

Condition
Used

Applications
This FitzMill is commonly used for:

Pharmaceutical milling
Food ingredient size reduction
Nutraceutical processing
Chemical powder milling
Granulation
Deagglomeration
Spice grinding
Herbal processing
Cosmetic ingredient milling
Powder conditioning
Dry product processing
Ingredient preparation

Common Products Processed

Pharmaceutical powders
Tablets
Dry granulations
Nutritional supplements
Spices
Herbs
Sugar
Salt
Food ingredients
Chemical powders
Resins
Mineral products

Features & Benefits

Stainless steel sanitary construction
Heavy-duty FitzMill design
Large 12.5-inch × 15.37-inch milling chamber
32 reversible milling blades
Blunt and knife-edge blade configuration
Large 10-inch flanged inlet
Oversized oval discharge opening
25 HP industrial drive motor
Portable welded stainless steel frame
Flexible screen selection for various particle sizes
Ideal for pharmaceutical, food, and chemical processing
Designed for reliable, continuous production

Frequently Asked Questions
What industries commonly use the FitzMill DKAS012?
The FitzMill DKAS012 is widely used in pharmaceutical, nutraceutical, food, chemical, cosmetic, and specialty materials manufacturing for size reduction and granulation.
Are screens included with this mill?
No. Screens are not included, allowing users to install the perforation size best suited for their specific particle size requirements.
What type of blades are installed?
The mill is equipped with 32 reversible fixed blades featuring both blunt flat-edge and knife-edge cutting surfaces, providing flexibility for different milling applications.
What motor powers the mill?
The unit is driven by a 25 HP, 1,770 RPM motor designed for 230/460 Volt, 3 Phase, 60 Hz electrical service.
Is the mill portable?
Yes. The FitzMill is mounted on a welded stainless steel portable frame constructed from heavy-duty 4-inch box tubing, making repositioning within a facility easier.
