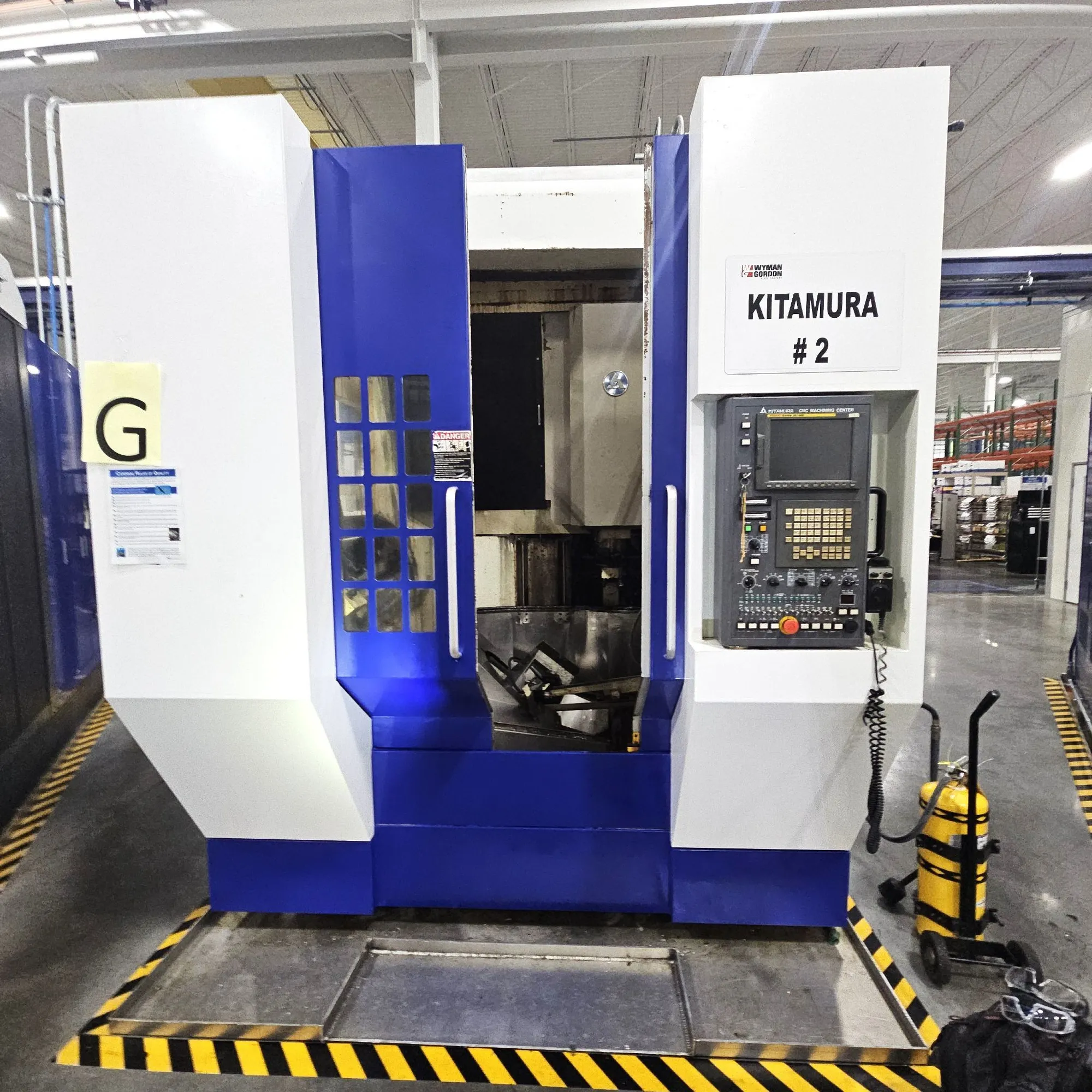

USED 2017 KITAMURA MYTRUNNION-5

2017 Kitamura My-Trunnion 5 Machine #2. Parts Machine.
* Excellent for Back Up Parts on Machine #4 with Order.!

Please Note: Machine had 24" Tilting Rotary Table Removed to Sent to Re-Builder for Repair and Decided Not to Repair to Sell as Parts Machine with Last Remaining Fully Operational 2017 Kitamura My-Trunnion 5 Machine #4. Contract
Ended Reason Available!

Machine recently Prep for Shipment and Loading is Available Timed with Machine #4 Shipment Opportunity.

This Machine has Valuable Fanuc Series 30 Model A Electronics and 50 Station ATC Parts, and Rear Chip Conveyor and Rotary Table Removed. Include Aluminum
Fabricated Chip Pan and many Standard Options.
2017 Kitamura My-Trunnion 5-Axis w/Fanuc Series 30i Model B-CNC Controls Machine #4, 50 Position Automatic Tool Changer, 20,000 Rpm Spindle, 24" 4-Jaw Rotary Chuck, Heavy Duty Taper Milling, All Box Way Construction & Rigidity. This is a Japan Quality Constructed Machine with Great USA Factory & Large Dealer Network Supported Machine.

Main Specifications
Kitamura My-Trunnion 5-Axis
Table Length 24.8 "
Table Width 19.7 "
CNC 5-Axis Mach Center
FANUC Series 30i CNC Control
Cat 40 Spindle Taper
Spindle Speed Range 20 ~ 20,000 rpm
Spindle motor power 30 hp
Automatic High Speed 50 Station Tool Changer
Max longitudinal cutting feed (X-Axis) 1,968 "/min
Max transversal cutting feed (Y-Axis) 1,968 "/min
Max vertical ram cutting feed (Z-Axis) 984 "/min
X-Axis travel 32.3 "
Y-Axis travel 29.3 "
Z-Axis travel (Ram Stroke) 19.6 "
Machine weighs 30,000 Lbs.

More Photos on Electronics in Process!

Special Offered Pricing!

Sincerely,
Mark Murphy
Murphy Machinery
