USED 2021 COASTONE C15
Overview
CoastOne C15 Precision All-Electric Press Brake
Built in Finland, these brakes are servo-driven, and are equipped with the highest class linear guides available. The drives are specially designed for years of accurate bending under the most demanding requirements. A user friendly programming system makes set-ups fast, and is perfect for short runs and hot production requirements.
The C-One series was ergonomically designed and provides an efficient working environment for the operator. The CoastOne is eco-friendly, using no hydraulic oil to be disposed of, and consumes very little electricity. With no hydraulics to keep cool, the heat generation is kept to a minimum. The electrical savings alone can amount to a 50% savings when compared to hydraulic press brakes.
A servo-driven press brake provides better cycle times and lower maintenance levels than a hydraulic press brake. In addition to the fast acting ram, the X and R back gauge provides impressive production capabilities in small lot sizes, something today fabricators must have the ability to respond to.
When comparing overall ergonomics, efficiencies, and eco-friendly nature of the CoastOne press brake, a better system will be hard to find.
https://international-technologies.com/product-category/coastone-electric-press-brakes/
[email protected]
Specs
Tonnage 48 tons 440 kN
Maximum bending length 63” 1600 mm
Distance between frames 61” 1550 mm
Throat depth 5.9” 150 mm
Open height maximum 19.68” 500 mm
Open height minimum 9.84” 250 mm
Y axis stroke length 9.84” 250 mm
Y axis working speed 23.6 IPM 10 mm/sec
Y axis max. speed* 236 IPM 100 mm/sec
Y axis repeating accuracy +/- 0.0000787” +/- 0.002 mm
X axis stroke 23.62” 600 mm
X axis speed 19.69 IPS 500 mm/sec
X axis accuracy +/- 0.000984” +/- 0.025 mm
R axis stroke 7.87” 200 mm
R axis speed 236 IPM 100 mm/sec
R axis repeating accuracy +/- 0.00197” +/- 0.05 mm
Z axis speed 2362 IPM 1000 mm/sec
Z axis repeating accuracy +/- 0.0197” +/- 0.5 mm
Delta X axis movement +/- 1.97” +/- 50 mm
Delta X axis speed 236 IPM 100 mm/sec
Delta X axis repeating accuracy +/- 0.000984” +/- 0.025 mm
Motor power 13.4 HP 2 x 5 kW
Machine weight 6614 lbs 3000 kg
Machine width, foot to foot 87.8” 2230 mm
Machine width, frame 63” 1600 mm
Machine depth 61.02” 1550 mm
Machine height 84.65” 2150 mm
Control Omron/CoastOne software
Servo Motor Yaskawa/Panasonic
Equipped With
48 tons forming tonnage
• Max bending length of 63”
• 3 axis system consisting of Y, X, and R

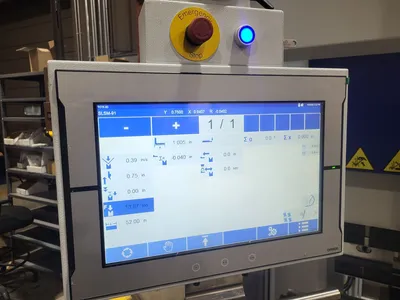

• TC15 PLC-based touch screen control
• 2 axis CNC back gauge consisting of X, and R
• 2 back gauge fingers
• European style punch holders, qty. 7 (Amada/Promecam)
• 60 mm (2.36”) die bed
• Foot pedal
• Anchors for mounting machine
• Voltage 480/50-60 Hz (transformer required for 240 volts)
• Warranty: as is, where is
