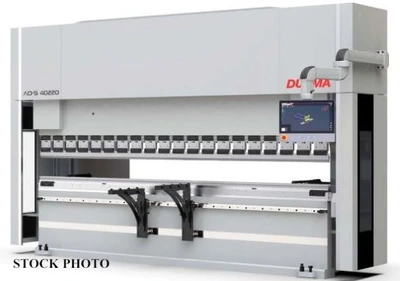

NEW DURMA AD-S 40220

DURMA (NEW) MODEL AD-S 40220 CNC HYDRAULIC
PRESS BRAKE WITH DA-66S CONTROL

242 US TONS
13' 3" BENDING LENGTH
11' 9" BETWEEN COLUMNS
35.4" TABLE HEIGHT
4.1" TABLE WIDTH
10.4" STROKE
20.8" DAYLIGHT
17.71" THROAT DEPTH
378"/MINUTE Y-AXIS RAPID SPEED
24"/MINUTE Y-AXIS WORKING SPEED
331"/MINUTE Y-AXIS RETURN SPEED
0.0004" RAM REPEATABILITY
1200"/MINUTE BACKGAUGE (X-AXIS) WORKING SPEED
25.5" BACKGAUGE (X-AXIS) WORKING DISTANCE
827"/MINUTE R-AXIS WORKING SPEED
29 HP MOTOR

DELEM DA-66S CNC CONTROL
- 2D GRAPHICAL TOUCH SCREEN PROGRAMMING MODE
- 3D VISUALIZATION IN SIMULATION PRODUCTION
- 24" HIGH RESOLUTION COLOR TFT
- DELEM MODUSYS COMPATIBILITY
- USB PERIPHERAL INTERFACING
- USER SPECIFIC APPLICATION SUPPORT
- SENSOR BENDING AND CORRECTION INTERFACE
- PROFILE-S2D OFFLINE SOFTWARE

STANDARD FEATURES
- 4-AXIS CNC Y1, Y2, X, R
- FIESSLER LC5 LASER FINGER SAFETY - MANUAL HT ADJUST
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN
- UNIVERSAL WEDGE STYLE PUNCH CLAMP
(FOR AMERICAN OR EUROPEAN STYLE PUNCHES)
- BOTTOM DIE RAIL ADAPTER
(FOR AMERICAN AND EUROPEAN STYLE DIES)

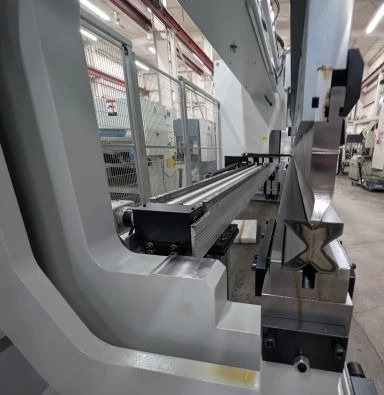

- PRECISION GROUND PUNCH/4-WAY DIE
TOP TOOL - ROLLERI P135.75.R08
BOTTOM TOOL - ROLLERI M.460R.85
- 2 SLIDING FRONT SUPPORT ARMS WITH T-SLOT,
TILTING STOP AND FULL LENGTH LINEAR GUIDE
- 2 BACKGAUGE FINGER BLOCKS
- CNC CONTROLLED MOTORIZED CROWNING
- LED WORK LIGHT ON TOP RAM

OPTIONS INCLUDED
- 4 + 1 AXIS BG X, R, Z1, Z2 DELTA X +/-4.9"

HYDRAULIC OIL REQUIRED
Power: (3-Phase)
