NEW TECNAR ROTOWELD 3.0
Overview

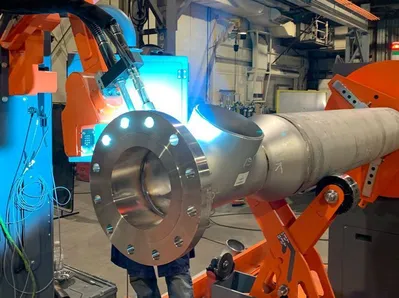

The Most Advanced Automated Pipe Spool Welding Robot

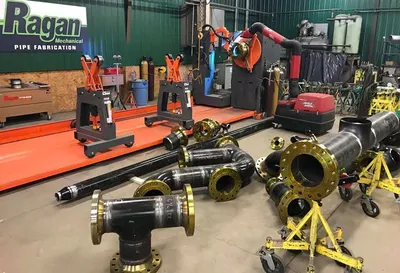

Built on 35 years of automated welding expertise, the Rotoweld 3.0 helps pipe fabrication shops increase throughput, improve weld consistency, reduce dependence on highly experienced welders, and track production performance from anywhere.
Up to 400% productivity increase
True automatic welding with minimal welding experience required
Consistent, high-quality welds every cycle
Remote productivity and quality tracking
Get a Quote
AI Avatar
You’re viewing: “ROTOWELD 3.0 AUTOMATED PIPE SPOOL WELDING SYSTEM”. Ask about specs, compatibility, maintenance, troubleshooting, or parts/service.
Ask about “ROTOWELD 3.0 AUTOMATED PIPE SPOOL WELDING SYSTEM” (specs, parts, service, etc.)
Category: Robotic Beam Welding
Tag: tecnar
Vide
Specs
Specification Single Bay Twin Bay Single Bay HD Twin Bay HD
Diameter capacity 3–42 in. 3–42 in. 3–48 in. 3–48 in.

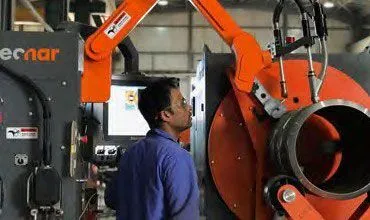

Rotators 1 2 1 2

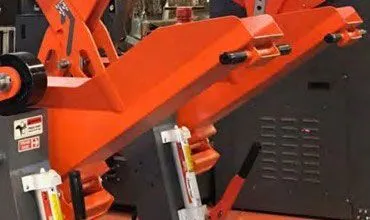

Pipe stands 2 4 2 4
Pipe stand capacity 10,000 lb/pair 10,000 lb/pair 20,000 lb/pair 20,000 lb/pair
System width 7.5 ft 7.5 ft 7.5 ft 7.5 ft
System height 9.2 ft 9.2 ft 11.5 ft 11.5 ft
Standard length 32 ft 80 ft 32 ft 80 ft
Productivity 150+ dia in/shift 300+ dia in/shift 150+ dia in/shift 300+ dia in/shift
Materials: Carbon steel including A333 Grade 6, 304/316 stainless steel and similar grades, Cr-Mo alloys, and duplex stainless steel

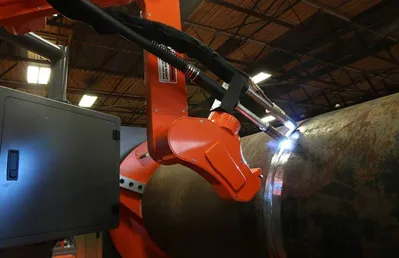

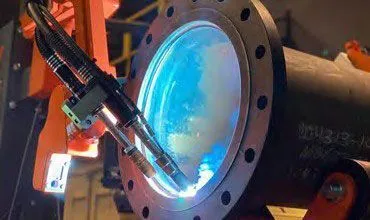

Root pass: GMAW short circuit / STT
Fill pass: GMAW spray or pulsed transfer
Optional fill processes: SAW and FCAW

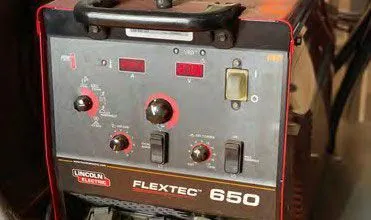

Welding sources: Lincoln Power Wave S500; Lincoln Flextec 650 for SAW option
Equipped With
High Productivity Output
Designed to weld up to five times faster than manual SMAW or GTAW. Single Bay systems are rated for 150+ diameter inches per shift, while Twin Bay systems can exceed 300 diameter inches per shift.
Prodatalog Performance Tracking
A web-based interface for productivity tracking and quality control. Managers can access welding data, performance information, and weld reports from virtually anywhere.
Workflow Software Compatibility
Compatible with MSUITE, STRATUS, and PypeServer. The system can receive weld IDs, load the correct welding program, report completion, and send weld data back to the shop tracking platform.

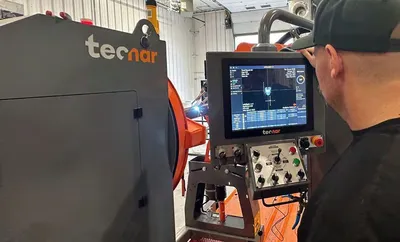

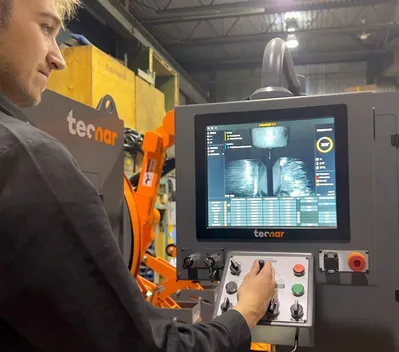

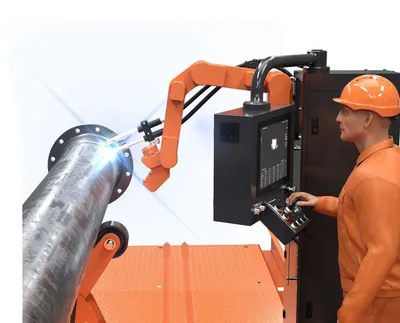

Simple Operator Interface
Large centered welding image, live welding parameters, program selection, operator login, and guided torch positioning help simplify setup and daily operation.

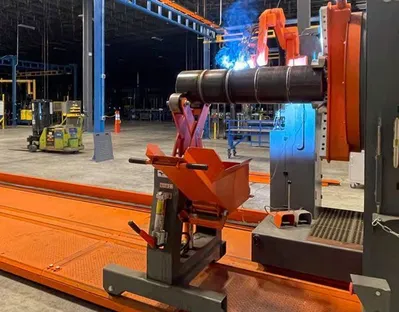

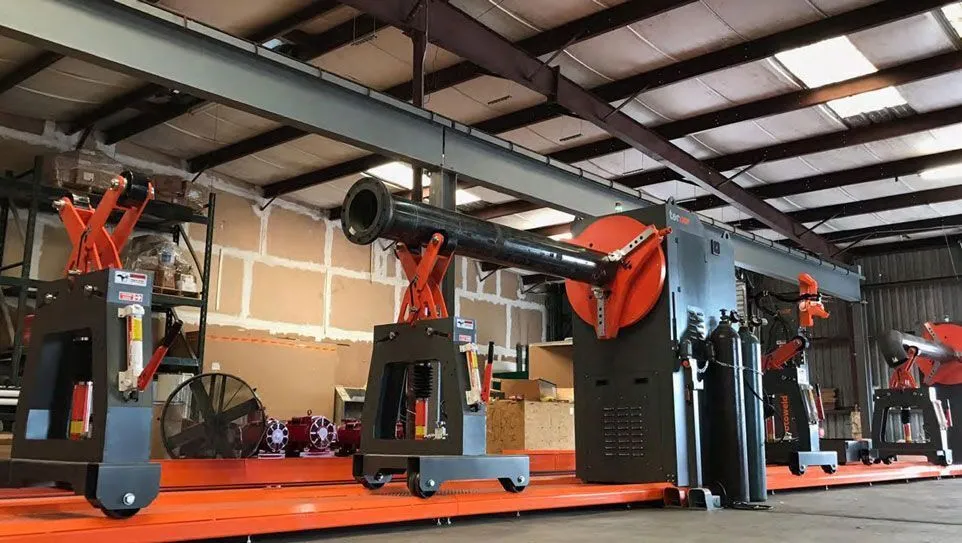

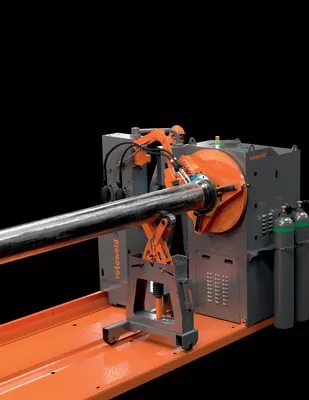

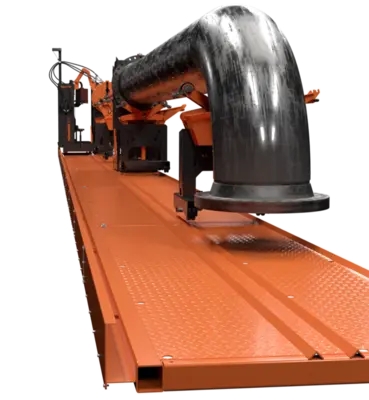

Fully Integrated Rail System
The welding carriage, rotators, and pipe stands share a common rail system for repeatable alignment, controlled torch position, reduced setup time, and cleaner cable management.
Flexible Welding Programs
Built-in program tools support carbon steel and stainless pipe sizes, accelerate WPS qualification, and allow specialized recipes to be developed with remote expert support.
Quality Control Insight
PerfectPass-iQ generates weld-level data and reports that document pipe preparation, welding conditions, and overall weld quality scores.
