NEW 2026 DOALL TF-2028M
Overview

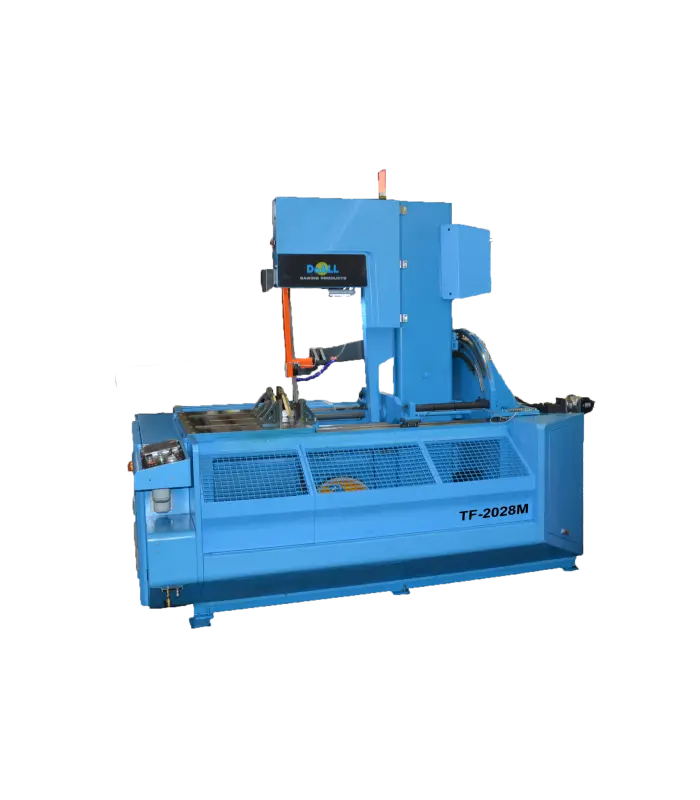

2026 DOALL MODEL TF-2028M VERT TILT FRAME BANDSAW, Capacity 20"W x 28"H, Rounds 20"
DoALL Tilt Frame TF-2028M is designed to deliver higher productivity, longer blade life, and improved operator safety for structural cutting applications. It offers up to w 20” x h 28″ rectangular and 20” round tube cutting capacity.
The TF-2028M from DoALL Sawing Products has many versatile features that allow this machine to be used in medium to large-sized shops.
Specs
Core Cutting Capacities
Rectangle at 90°: \(20^{\prime\prime} \times 28^{\prime\prime}\) (up to 500 × 730 mm)
Round at 90°: \(20^{\prime \prime }\) (structural)
Miter Cutting: Up to 60° left and right (powered or hydraulic tilt depending on the model)
Smallest Clamped Piece: 10 × 10 mm
Mechanical Specifications
Saw Blade Dimensions: Typically \(1.25^{\prime\prime} \times 0.042^{\prime\prime}\) or 34 × 1.1 mm
Blade Speed: Variable between 65 - 360 FPM (20 - 110 M/Min)
Main Drive Motor: 6.5 kW (approx. 6.7 - 10 HP)
Weight: Estimated at 7,000 lbs. depending on integrated coolant and vise accessories
Standard Equipment & Controls
Control: Touchscreen PLC with manual and AI Smart Mode
Equipped With
Standard equipment included with your new TF-2028M:
60 Degree Left and Right Cutting Capability
High Torque Variable Frequency Saw Band Drive
Programmed Band Change Cycle
Full Stroke Hydraulic Clamping Cylinders
Variable Vice Pressure
Replaceable Vice Wear Plates (Two Sets)
Auto/Manual Hydraulic Positioned Saw Guide Post
Band Break Switch
Laser Line for Material Positioning
Hydraulic Locking Alloy Steel 1-1/4” Saw Guide Blocks
Flood Coolant
Mist Band Lubrication System
Band Wheels 20" Diameter HT250 Cast Iron
Wheel Driven Band Cleaning Brush
Linear Bearings for the Head Carriage
Recirculating Coolant System
Auto Lubrication System
Digitally Displayed Angle Position with Hydraulic Lock
Shovel/Rake for Chip Removal
LED Work Light
7 Degree Cant Design
Saw Blade Guards
Band Door Interlocks
One (1) Complimentary DoALL Bi Metal Saw Blade
Complimentary DoALL Cutting Fluids Package
