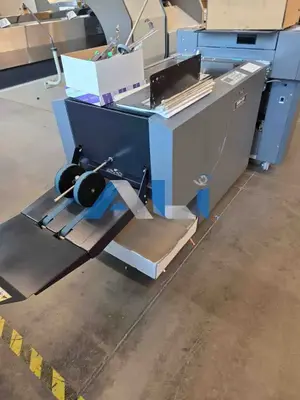

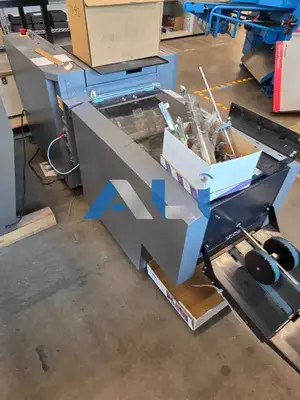

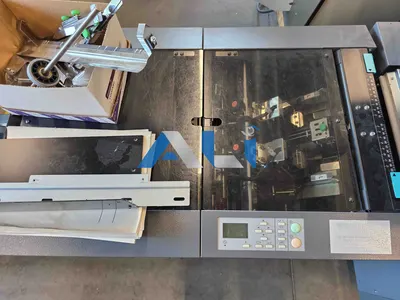

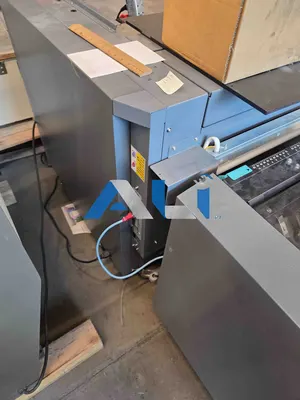

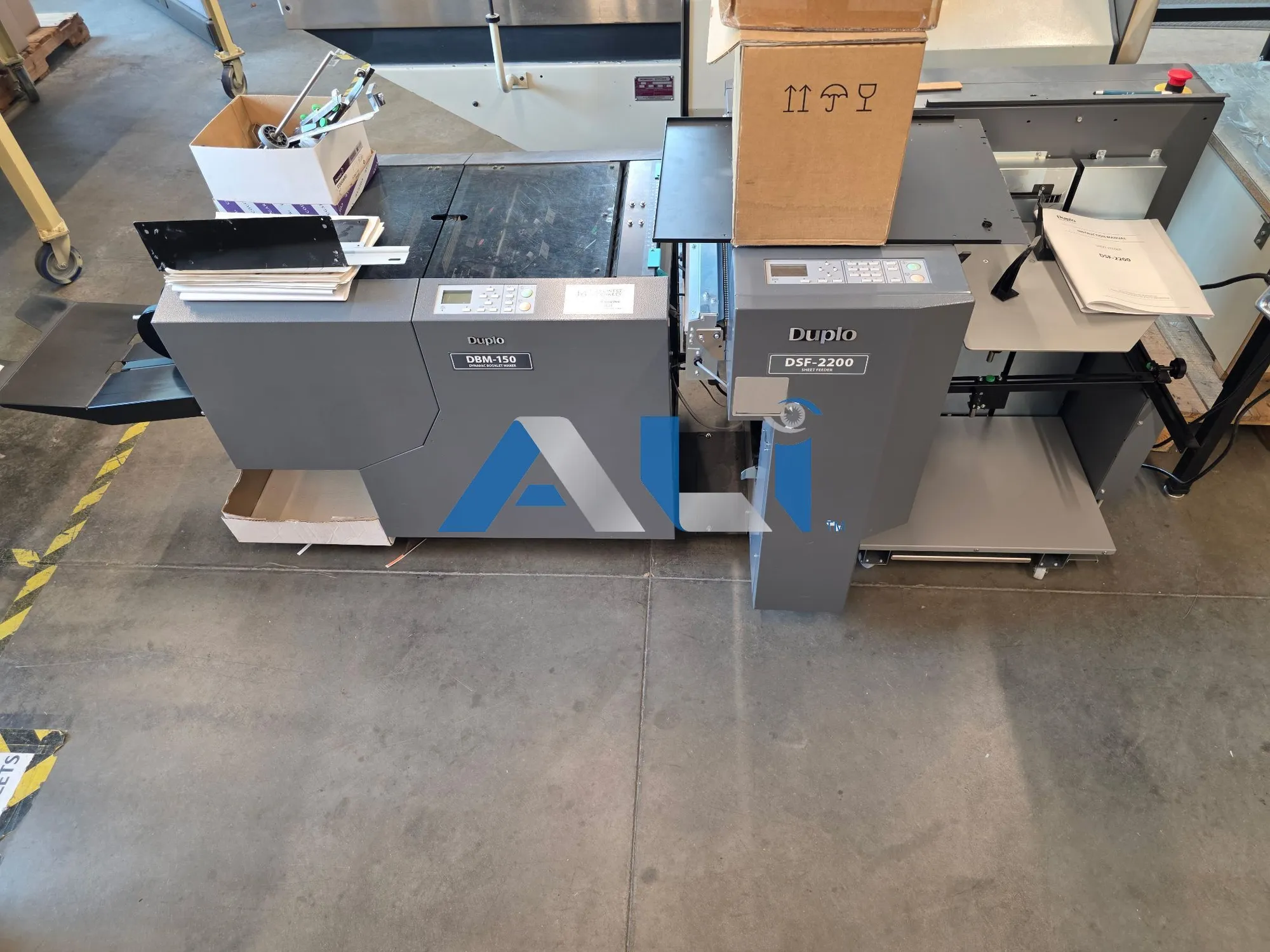

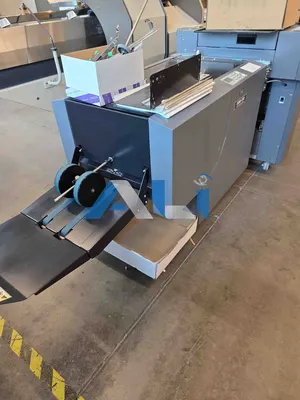

USED DUPLO DBM-150

Number of Bins: 2
Separation: Front air (fan); side air (fan); optional trail edge (pump)
Feeding System: 8 belts with 40 square inches of suction (fan)
Paper Loading Capacity:
Tray A 2.56” (65 mm)
Tray B 7.87” (200 mm)

Paper size:

Length 7.87” - 20” (200 - 508 mm)
(Maximum paper length is 24” /610 mm only when the paper width is 7.88” - 9.05”/ 200 - 230 mm. If the width is more than 9.05”/230 mm, the maximum paper length is 20”/508 mm) Width 4.13” - 14.02” (105 - 356 mm)
Paper Type: Art/coated paper; laminated paper 79 - 300 gsm; fine paper 52.3 - 300 gsm
Processing Speed: Up to 200 sheets/minute (A4 SEF)
Control Panel: Liquid crystal display unit with main controls through PC interface
Additional Functions: Ultrasonic double-feed detection; end mark detector (sensor); anti-static device; alternate feed function
Dimensions: (WxDxH) 37” x 30” x 34”
Power 100 - 240V 50/60Hz 2.6A 2.6 - 1.1A
Power Consumption: 260W
Weight: 254 lbs

150 Booklet System

Maximum Number of Bins 20 (Two DSC-10/60i towers)
Bin Capacity 2.55"/65 mm
Paper Weight Fine quality 52 - 157 gsm, cover 52 - 300 gsm
Art coated 79 - 157 gsm, cover 79 - 300 gsm
Saddle Stitch Paper Size (W x L) 4.72" x 8.27" - 12.60" x 18.11" (120 mm x 210 mm - 320 mm x 460 mm)
Corner & Side Staple Paper Size (W x L) 7.87" x 7.08" - 12.60" x 9.09" (200 mm x 180 mm - 320 mm x 231 mm)
Orientation: Long Edge Feeding
Number of Sheets 2-25 sheets per booklet (0.10"/2.5 mm)
Number of Staple Heads 2 (Isaberg Rapid)
Staple Capacity 5,000 per cartridge
Staple Positions Saddle, corner, side, fold only
Trim Amount 1 mm to 20 mm/0.04" to 0.79"
Trim Thickness 2 - 25 sheets folded (max 0.19"/5 mm)
Finished Booklet Size
(Saddle Staple & Fold)
No Trim: 4.14" x 4.72" - 9.06" x 12.6" (105 mm x 210 mm - 231 mm x 320 mm)
Trimmed: 3.35" x 4.27" - 8.27" x 12.6" (85 mm x 108 mm - 210 mm x 320 mm)
Processing Speed Up to 2,400 sets per hour (10 sheets 80 gsm LTR)
