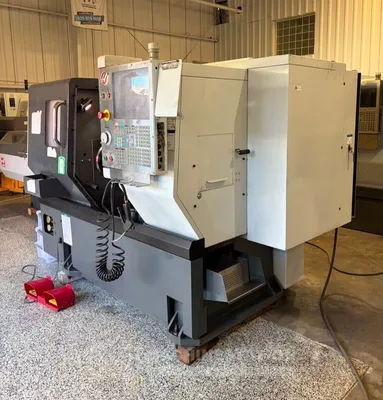

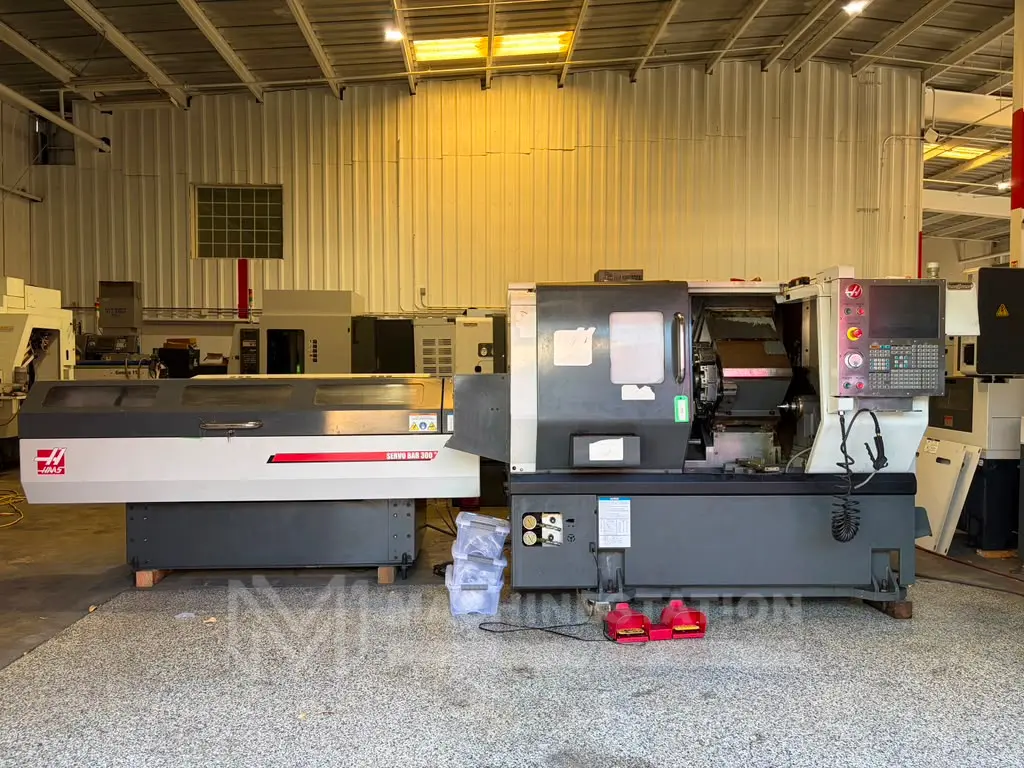

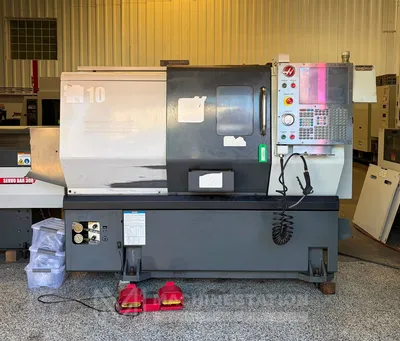

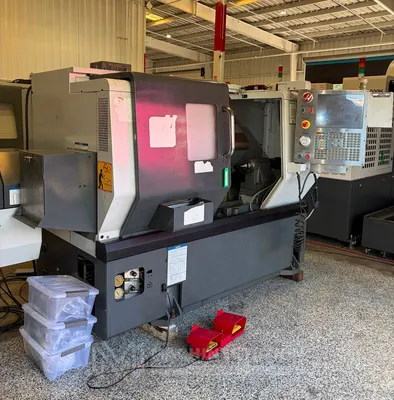

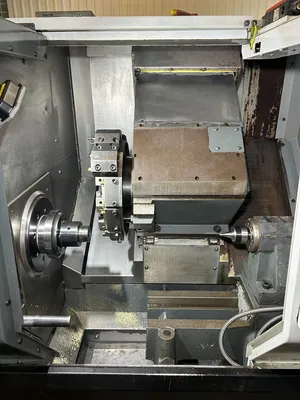

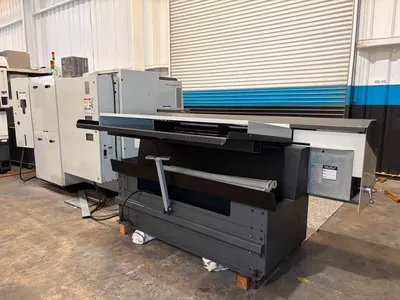

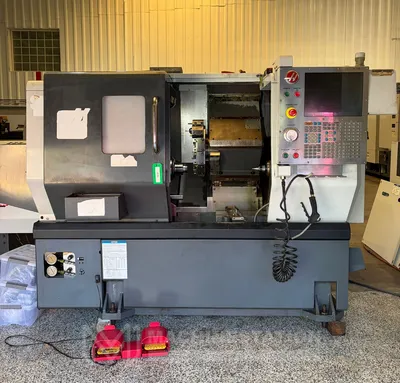

USED 2011 HAAS ST-10

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

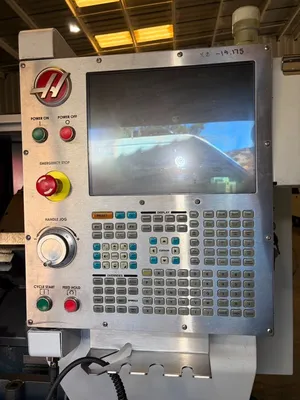

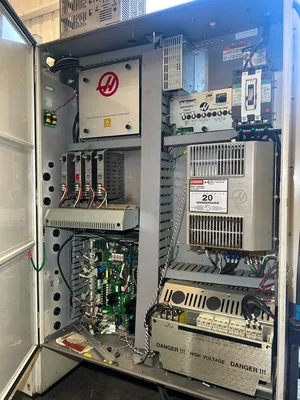

Haas CNC Control
12-Station Automatic Turret
6,000 RPM Spindle
A2-5 Spindle Nose

Capacity:
Max Turning Diameter: 12.0″
Max Swing: 16.5″
Max Turning Length: 16.0″
Max Bar Capacity: 1.75″

Travels:
X Axis Travel: 7.88″
Z Axis Travel: 16.0″

Feedrate:
Rapid Traverse X Axis: 1,200 IPM
Rapid Traverse Z Axis: 1,200 IPM

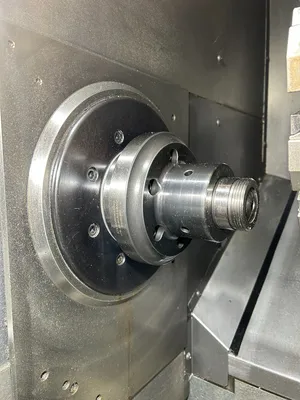

Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.31″
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP

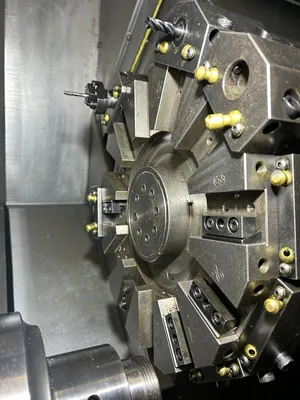

Turret:
Turret Capacity: 12 Stations
Tool Holders Type: Bolt Mounted

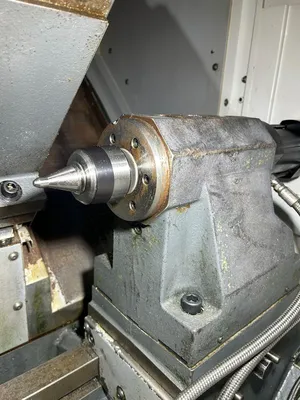

Tailstock:
Tailstock Taper: MT-3
Hydraulic Quill Travel: 3.8"

General:
Air Required: 100 psi, 4 scfm
Machine Dimensions: 126″ x 70″ x 81″ High Approx.
Machine Weight: 7,900 lbs Approx.
