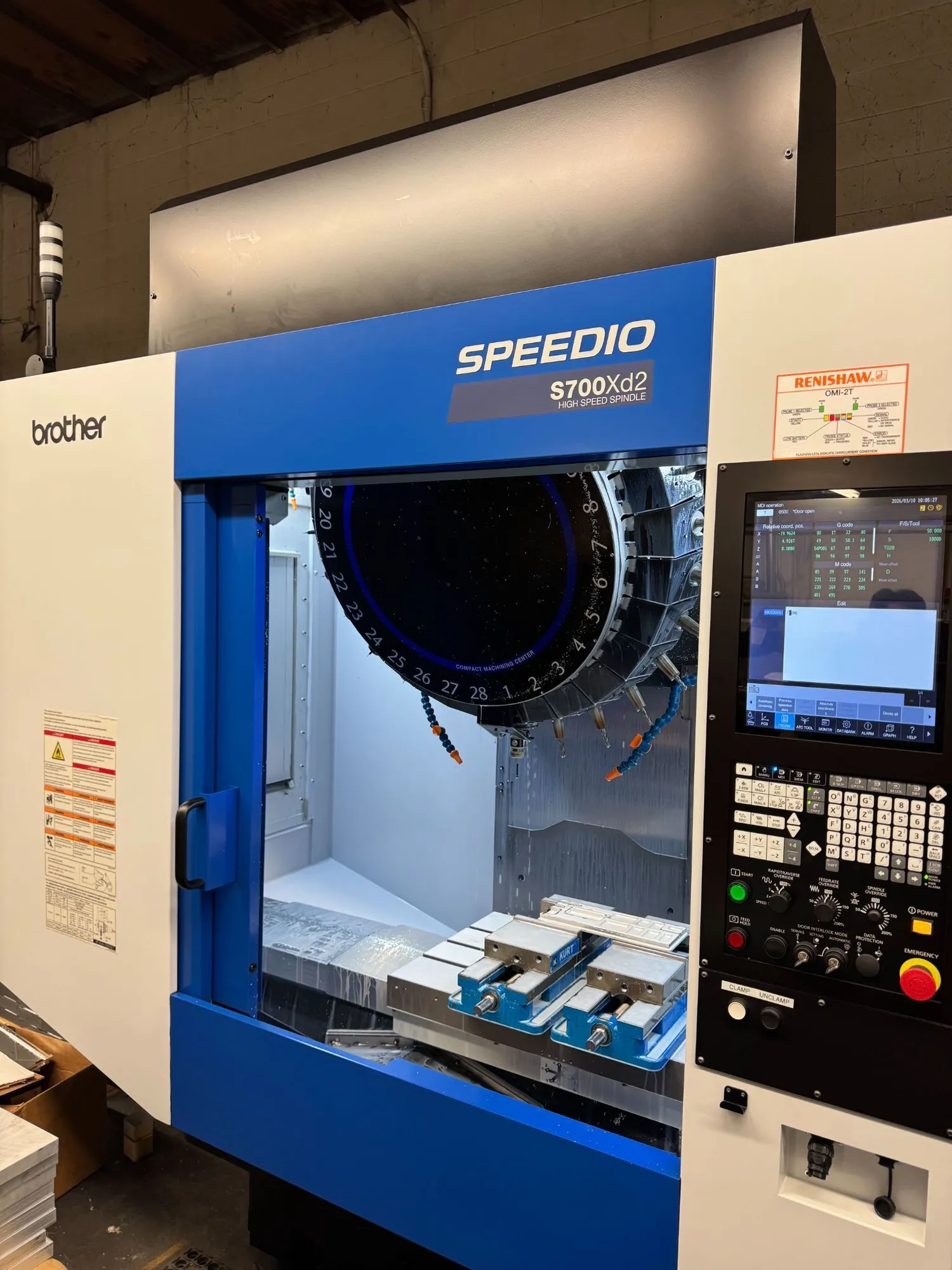

USED 2024 BROTHER SPEEDIO S700X2

Table size: 700 × 400 mm
Travels:
X: 700 mm
Y: 400–450 mm (varies by configuration)
Z: 300 mm standard / 380 mm optional
Spindle:
Standard speed: 27,000 rpm

Power: 7.5 kW (10 hp) on 16,000 rpm variant
Taper: BT30 (BIG‑PLUS dual‑contact optional)
Tool magazine: 28 tools
Tool change time:
Chip‑to‑chip: ~0.9 sec (21‑tool turret)
As fast as 1.2–1.4 sec depending on magazine & tool weight
Rapids:
X/Y: 50 m/min
Z: 56 m/min

Table load capacity: 300 kg (largest in Speedio line)
Machine weight: 3,800 kg
Footprint: ~2,050 × 2,081 mm (varies slightly by configuration)
