USED 2007 TAKUMI V10

Manufacturer: TAKUMI
Model: V10
Year: 2007
Axis_Travels(X;Y;Z): 40" x 26" x 24"
RPM: 10000
HP: *
ATC: 21
Control: FANUC
Price: CALL US!

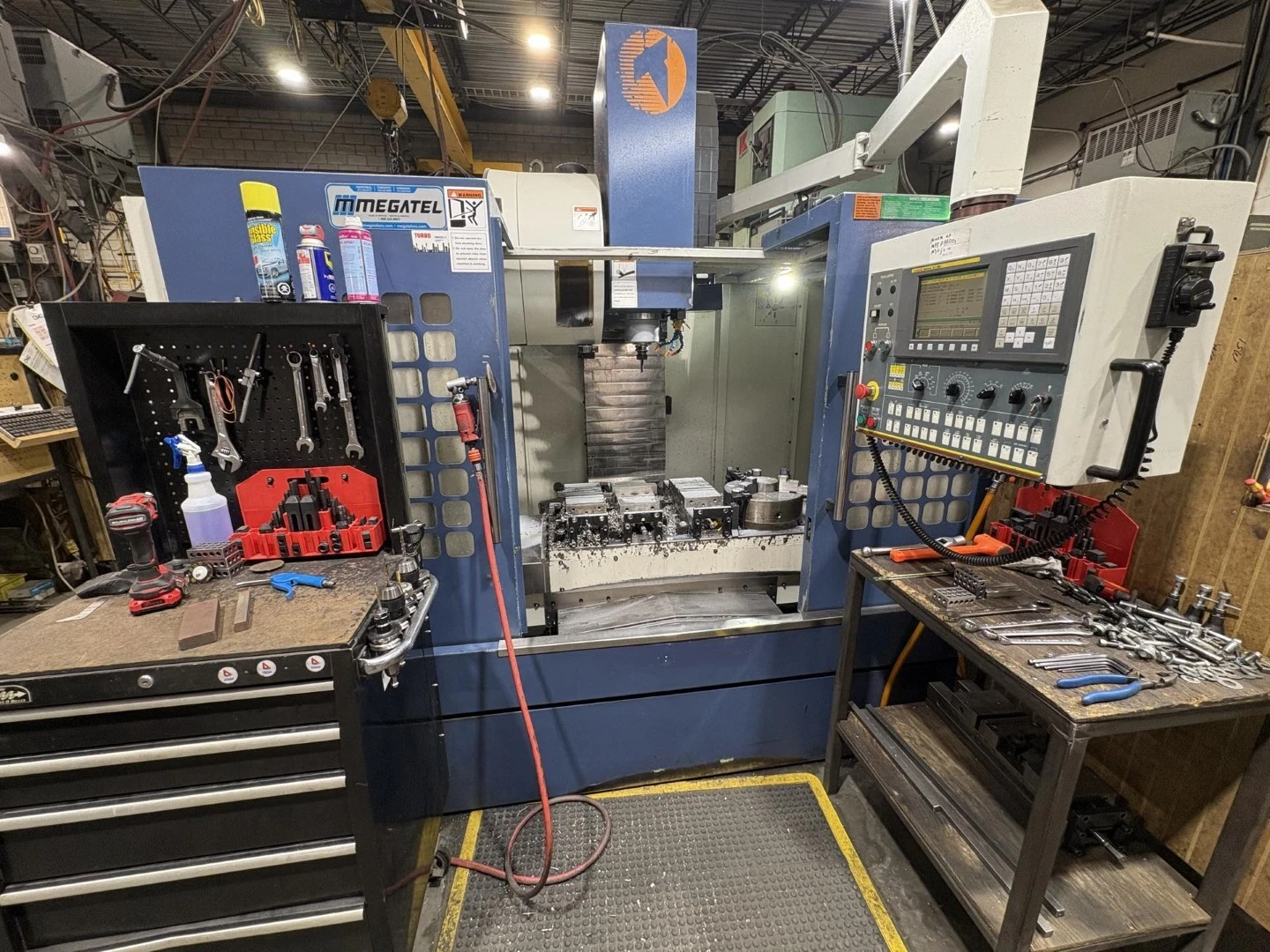

TAKUMI V10 CNC VERTICAL MACHINING CENTER, 2007

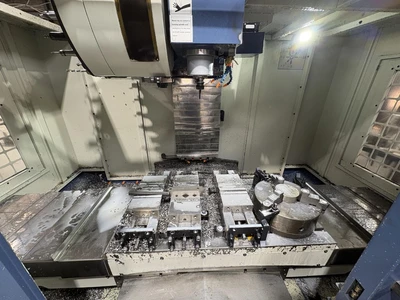

Table size: 42″ x 26″

X-axis travel: 40″

Y-axis travel: 26″

Z-axis travel: 24″

Distance from spindle nose to table surface: 6.3″ to 28.3″

Spindle Speed: 10,000 RPM

Spindle motor power:

Tool capacity: 24 + 1 ATC

Rapid traverse rate (X/Y/Z): 1,417 IPM (inches per minute)

Cutting feed rate: 0.04 – 393.7 IPM

Machine dimensions (W x D x H): 110.2″ x 89.8″ x 114.2″

Machine weight: 17,600 lbs


Equipped With:

21 + 1 Side-Mouth Tool Changer

BT#40 Taper Size

FANUC CNC CONTROL
